repeat the process explained above. It is possible
to set the timer to both of the cooking zones
simultaneously. If it is set the timer to both cooking
zones, the lower timer value appears on the timer
display.
Timer cannot be set without selecting the
cooking zone.
If the timer is not selected before the 10
seconds, the timer is switched off. If the selected
time is “00” after 10 seconds the timer is switched
off.
Changing the timer
When the timer is in countdown the use can
change the time at any time by touching the timer
key, the countdown stops and the timer changes
to the time selection status waiting a time selection.
Deactivating the timers early
If you deactivate the timer earlier, the hob will keep
on operating at the set temperature until it is
switched off. You can deactivate the timer earlier in
two different ways:
Deactivating the timer for related zone by
dropping its value to “00”.
1.Touch the timer key until the “00” appears
on the display of the cooking zone whose timer is
active.
The timer will be cancelled and the temperature
level reduced to “0” of the related zone.
Operation time limits
The hob control is equipped with an operation time
limit. If one or more cooking zones are left on, the
cooking zone will automatically be deactivated after
a certain period of time (see table below). If there
is a timer assigned to the cooking zone, the timer
display will also turn off later.
Operation time limit depends on the selected
temperature level. Maximum operation time is
applied at this temperature level.
The cooking zone may be reactivated by the user
after it is switched off automatically as described
above.
The appliance may be connected to the mains supply only by a competent person. The mains lead
must not be clamped, bent, trapped, or come into contact with hot parts of the appliance.
The mains lead must not be clamped, bent, trapped, or come into contact with hot parts of
the appliance.
This hob is prefitted with a mains lead.

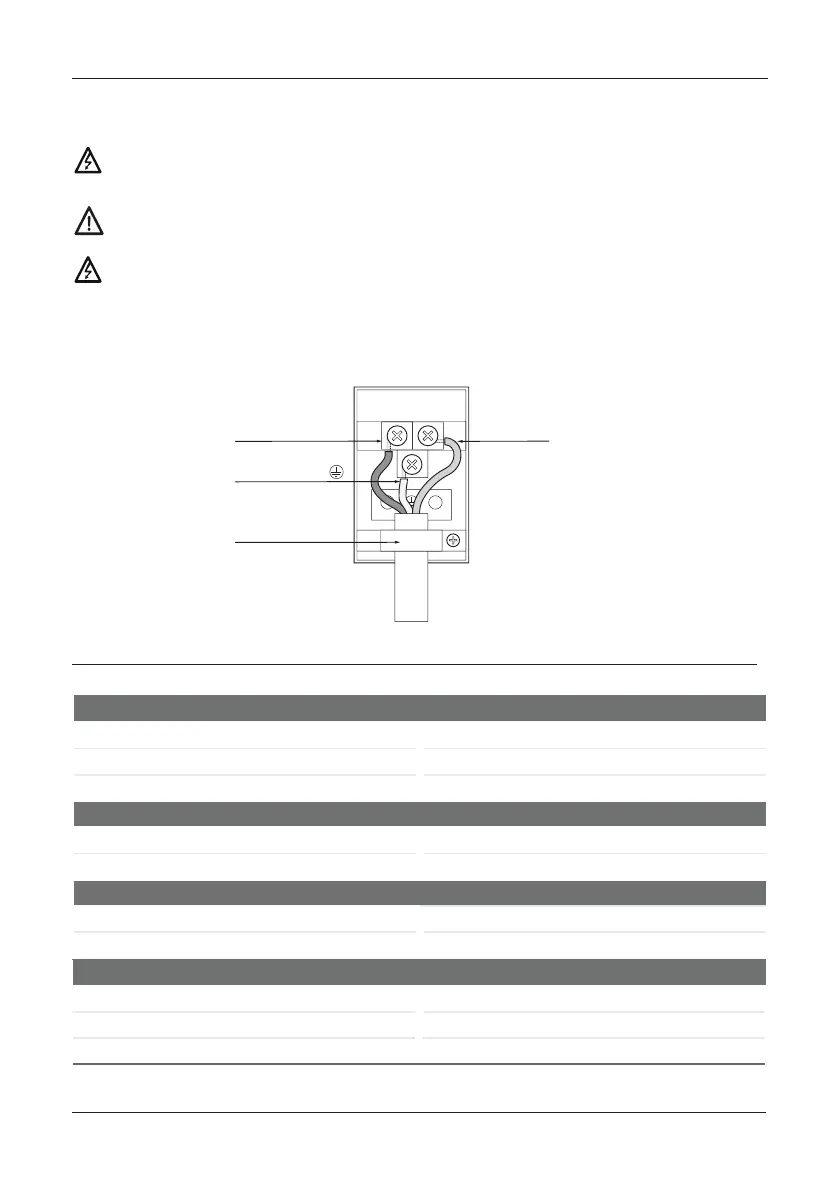

Terminal block connection:
If the mains lead is damaged, it must be replaced by a registered competent person (mains cable
must not be longer than 2m for safety reasons) using the same cable type as defined in the
technical data. It should be routed away from the appliance and not trapped between the appliance
and the wall.
Technical Data
Outer Dimensions
mm882htdiW
Depth 510mm
mm55thgieH
Cutout Dimensions
)1+( mm862htdiW
Depth
490mm (+1)
Cook Zones
Hob Wattage-Front Ø140-1200w
Hob Wattage-Rear
Ø180-1800w
W 0003rewoP cirtcelE latoT
zH05~ V042 - V022egatloV ylppuS
)m2 xaM( eroc 3 ,² mm5.1 2V2V5OH epyT elbaC
L N
Terminal
Live: Brown
Earth: Green /
Neutral :
Cable clamp
16_
