Landa Pgdc5-3500 - Control Box

33Landa PGDC Operator’s Manual 8.916-596.0 - P

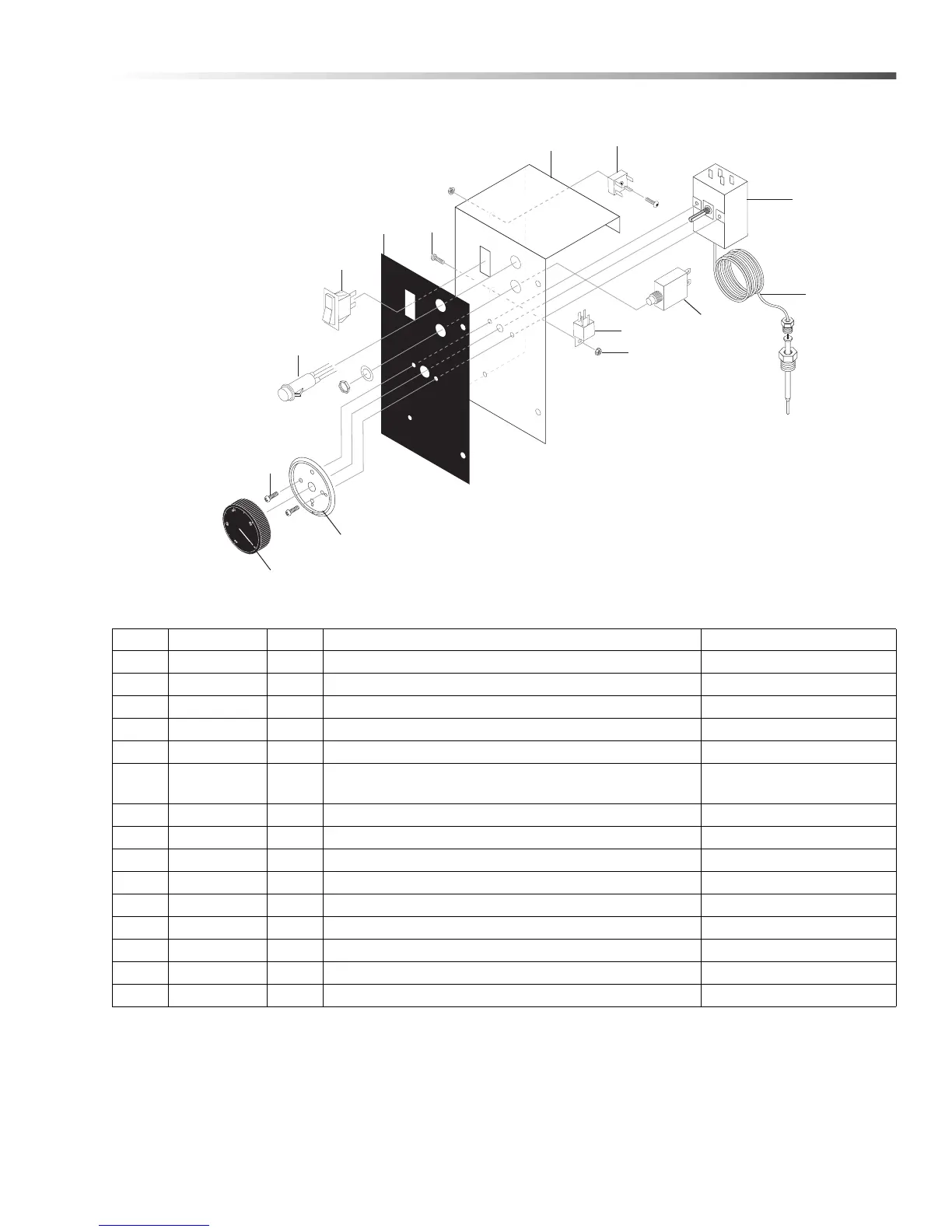

Control Box
REF PART NO. QTY DESCRIPTION NOTES
1 8.916-458.0 1 CONTROL, FRONT, PGDC
2 8.916-612.0 1 LABEL, ELECTRICAL, PGDC
3 9.802-453.0 1 SWITCH, CURVETTE
4 9.802-485.0 1 BREAKER, CIRCUIT, 25 AMP
5 9.802-456.0 1 LIGHT, INDICATOR, GREEN 12V
6 9.802-470.0 1 RELAY, 12V
(1.110-049.0 HONDA,
1.110-050.0 VAN)
- 9.802-471.0 1 24V RELAY (1.110-051.0 HONDA)
7 9.802-695.0 1 NUT, 10/32" KEPS
8 9.802-771.0 1 SCREW, 10/32 X 3/4
9 9.802-530.0 1 RECTIFIER, BRIDGE 12V DC, 30 AMP
10 8.750-095.0 1 THERMOSTAT, 120C/240F
11 8.750-097.0 1 KNOB,THERMOSTAT, 120C/240F
12 8.712-190.0 1 BEZEL,THERMOSTAT
13 8.718-779.0 2 SCREW, 4 MM X 6 MM
14 9.802-447.0 48" CONDUIT, SPLIT
1
2
3
5
13
4
10
11
12
6
7
8
9
14
