Landa Pgdc5-3500 - LT.2 Series Pump

48

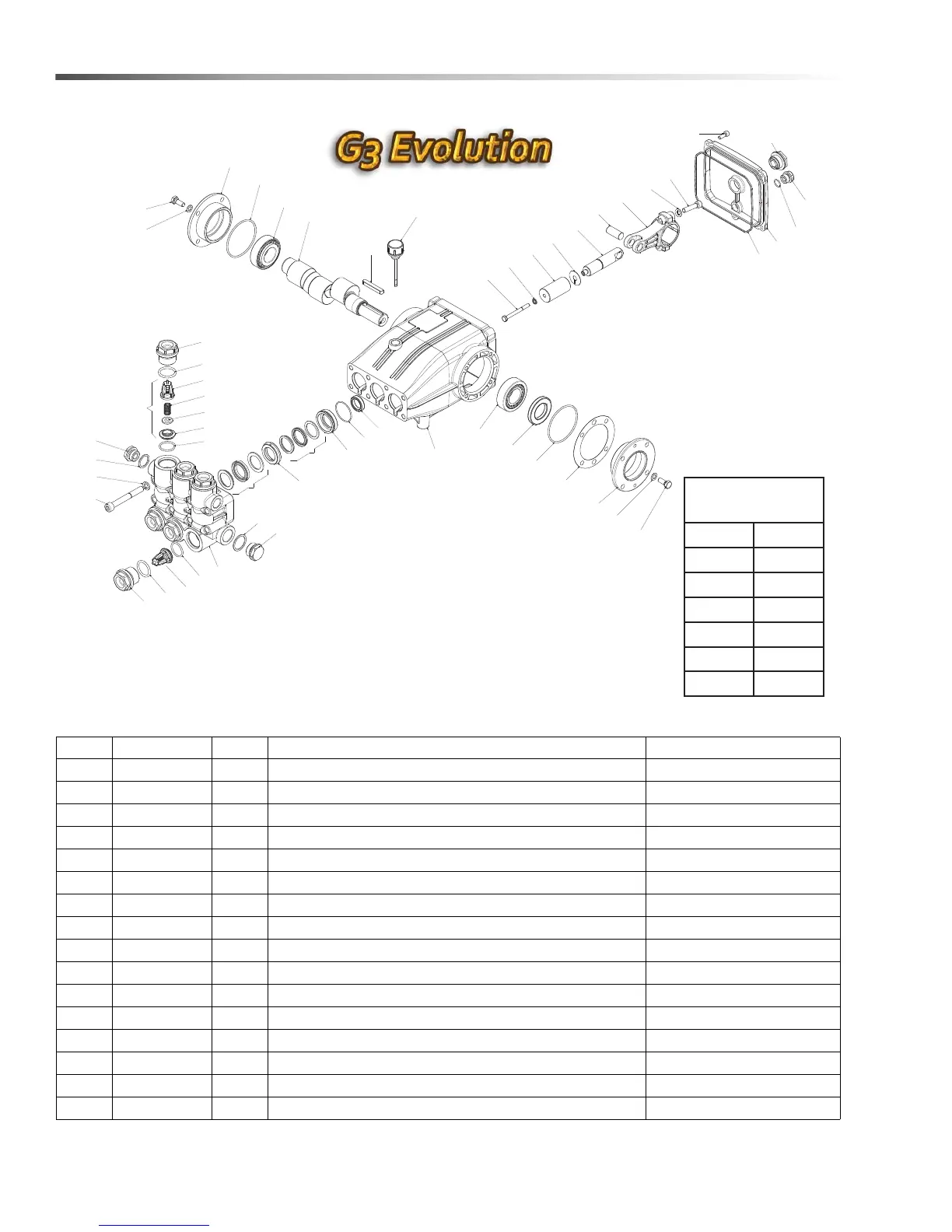

LT.2 Series Pump
REF PART NO. QTY DESCRIPTION NOTES
1 8.752-825.0 1 CRANKCASE
2 - 3 PLUNGER OIL SEAL SEE KITS TABLE
3 - 3 O-RING Ø1.78 X 37.82 SEE KITS TABLE
4 - 3 PRESSURE RING, 18MM SEE KITS TABLE
5 - 3 U-SEAL, 18MM SEE KITS TABLE
6 - 3 INTERMEDIATE RING, 18MM SEE KITS TABLE
7 - 3 U-SEAL, 18MM SEE KITS TABLE
8 9.802-926.0 1 BRASS PLUG, G1/2
9 9.803-199.0 1 COPPER WASHER 1/2
10 8.753-816.0 1 MANIFOLD HOUSING
11 9.804-498.0 6 O-RING Ø2.62 X 25.1 SEE KITS TABLE
12 - 6 VALVE ASSEMBLY SEE KITS TABLE
13 9.803-193.0 6 O-RING 3068 SEE KITS TABLE
14 9.802-928.0 6 VALVE PLUG
15 8.753-817.0 8 MANIFOLD STUD BOLT
16 9.802-890.0 8 LOCK WASHER
Landa PGDC Operator’s Manual 8.916-596.0 - P
TORQUE SPECS
ITEM # FT. LBS.
14 95
15 45
23 8
34 10
42 30
48 8
5
7
12
12
23
24
25
26
27
28
29
30
27
31
26
32
33
24
23
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
2
3
4
6
8
9
10
13
14
15
16
17
18
19
20
21
22
13
14
11
11
1
