Landa Pgdc5-3500 - Burner Assembly

39Landa PGDC Operator’s Manual 8.916-596.0 - P
Burner

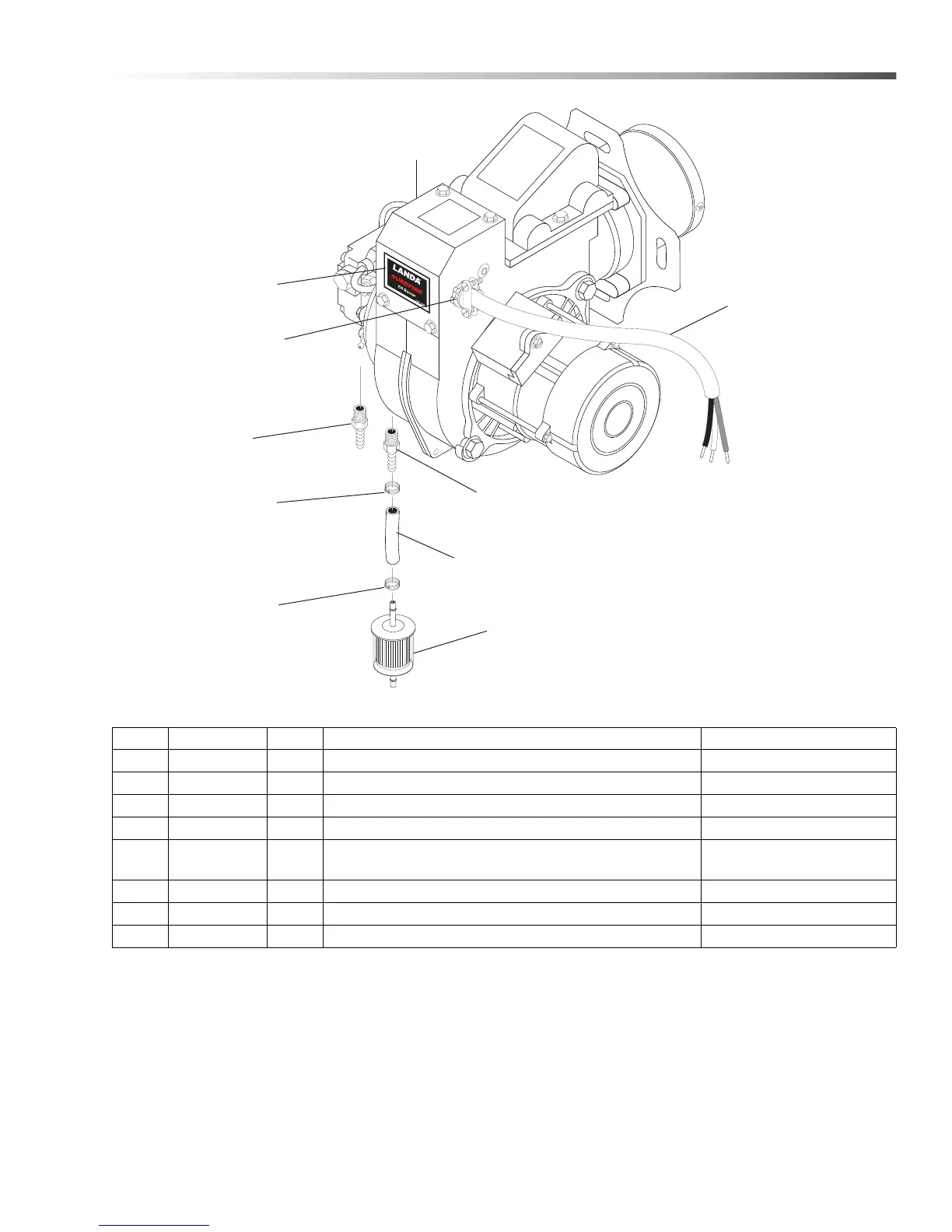

REF PART NO. QTY DESCRIPTION NOTES
1 8.709-069.0 2 CLAMP, SCREW, 5/16"W, 1/4-5/8" D, SS
2 9.802-254.0 5" HOSE, 1/4", PUSH-ON
3 8.706-941.0 1 HOSE BARB, 1/4" BARB X 1/4" ML
4 8.709-152.0 1 FILTER, DIESEL FUEL, DISPOSABLE
5 - - BURNER ASSEMBLY
SEE SPECIFICATIONS
PAGE
6 9.802-519.0 1 STRAIN RELIEF, 2 SCREW 2 METAL 1/2"
7 9.802-428.0 30" CORD, SERVICE, SJOWA 12/3
8 9.801-265.0 1 LABEL, LANDA SURE FIRE
1
2
5
6
4
1
8
3
3
7
