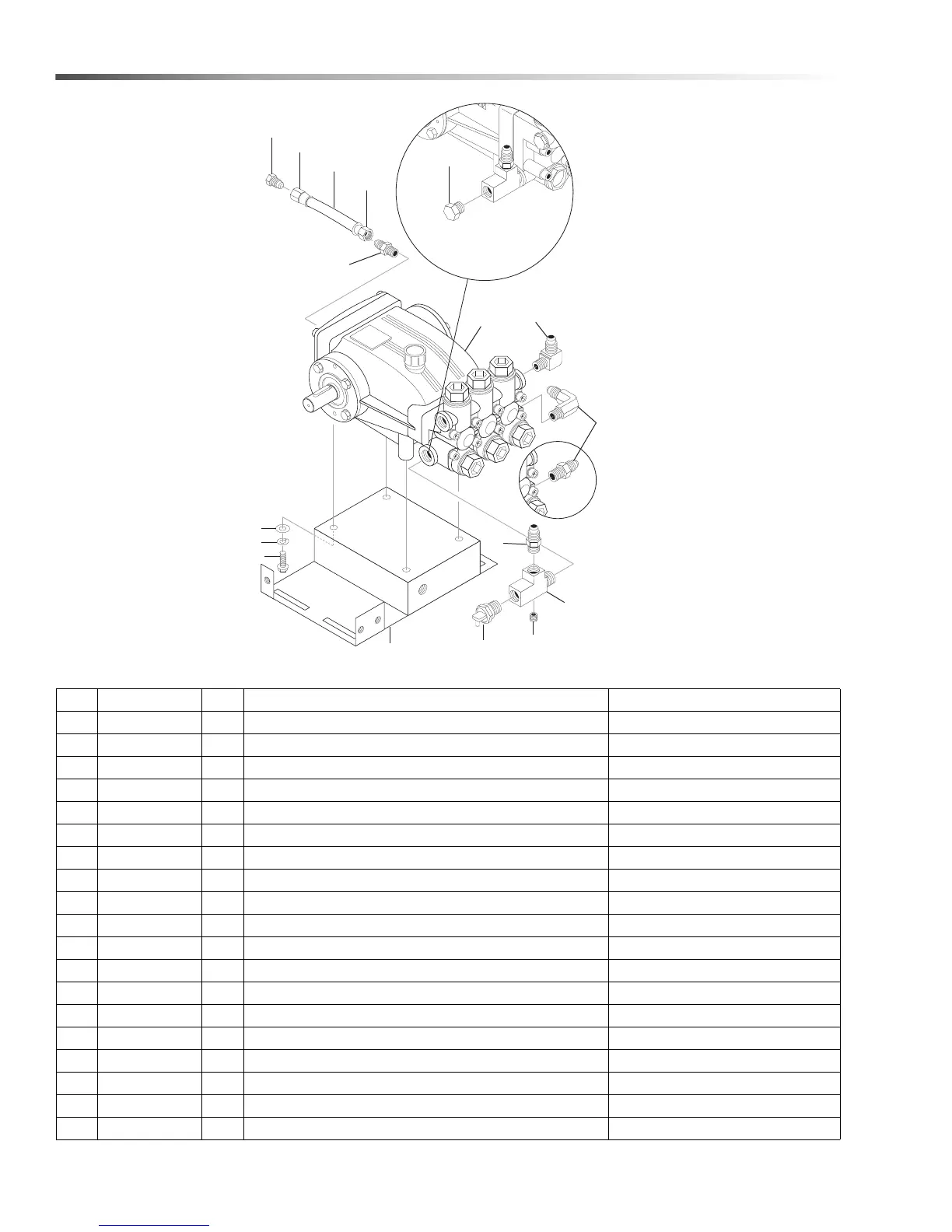

Landa Pgdc5-3500 - Pump Assembly

42
Pump
REF PART NO. QTY DESCRIPTION NOTES
1 8.921-713.0 1 PUMP, LT6036L (1.110-051.0 1.110-050.0)
- 8.921-711.0 1 PUMP, LT4540L (1.110-049.0)
- 8.920-590.0 1 PUMP, LANDA LX9536L.2, 9.5@3625 1740RPM (1.110-072.0)
2 8.912-461.0 1 ASSY, GAS PUMP PLATE
3 9.802-123.0 1 TEE, 1/2" W/ (1) HOLE
4 8.706-864.0 1 PLUG, 1/8" COUNTERSUNK
5 8.707-256.0 1 PUMP PROTECTOR, 1/2"
6 9.802-128.0 1 NIPPLE, 1/2" X 1/2" MPT PIPE
7 9.802-039.0 1 ELBOW, 1/2" JIC X 3/8" MPT
8 9.802-132.0 1 ELBOW, 3/4" JIC X 1/2" 90°
- 8.706-902.0 1 NIPPLE, 3/4" JIC X 1/2" PIPE (TR3500/6000 OPTION)
9 9.802-127.0 1 NIPPLE, 1/2" JIC X 3/8 PIPE
10 9.802-151.0 2 SWIVEL 1/2" PUSH-ON
11 9.802-126.0 1 PLUG, 1/2" JIC
12 9.802-259.0 20" HOSE, 1/2" PUSH-ON
13 8.706-868.0 1 PLUG, 1/2"
14 9.802-744.0 4 BOLT, 10MM X 20MM, ZINC
15 8.718-961.0 4 WASHER, M10, SPLIT ZINC
16 9.802-807.0 4 WASHER 3/8" FLAT ZINC
Landa PGDC Operator’s Manual 8.916-596.0 - P
1
2
3
4
5
6
7
8
14
15
16
11
10
12
10
13
9
Float Tank
Option Only
