Landa Pgdc5-3500 - Hose & Spray Gun

38
Hose & Spray Gun

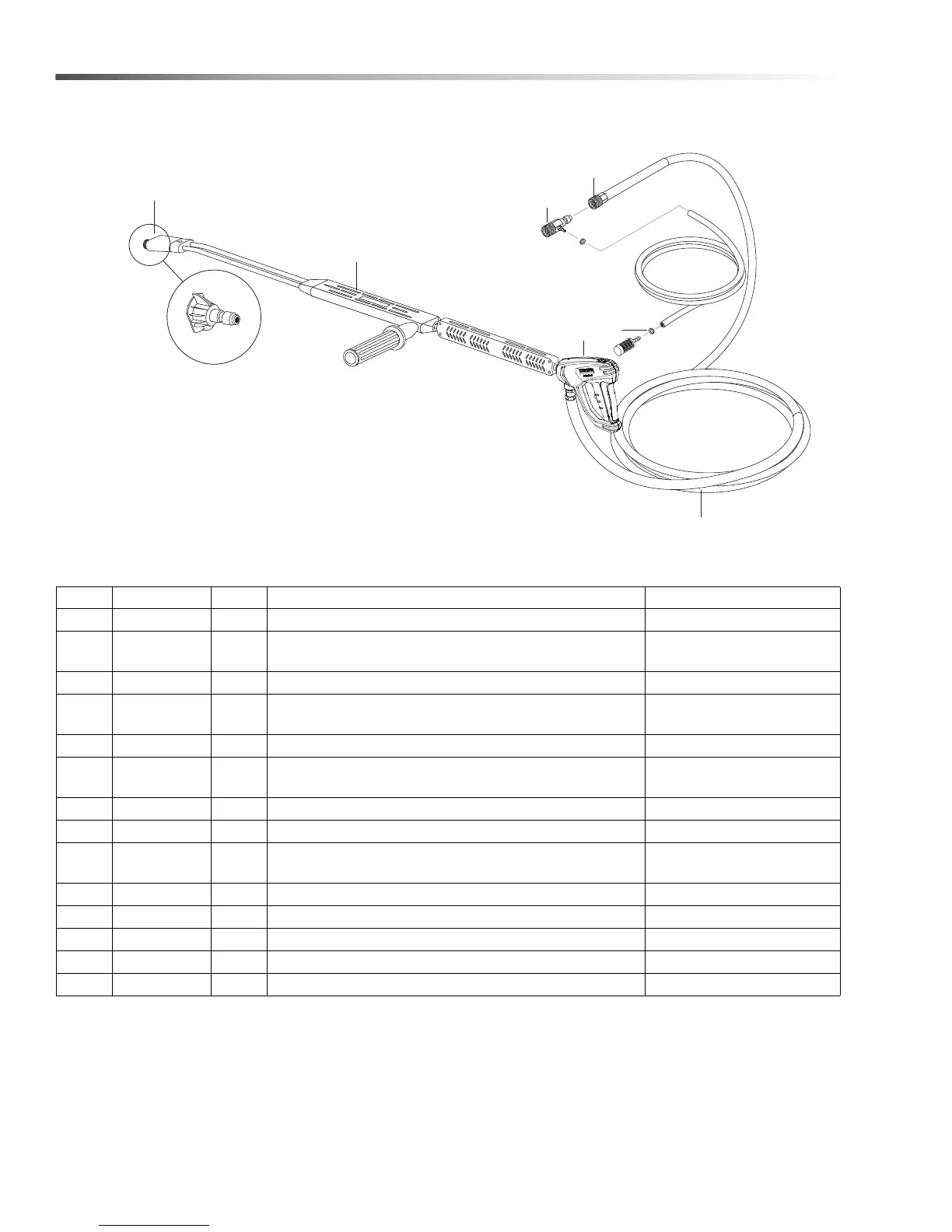

REF PART NO. QTY DESCRIPTION NOTES
1 9.802-166.0 1 COUPLER, 3/8" FEMALE
- 9.802-100.0 1 O-RING, 3/8"
REPLACEMENT ONLY
NOT SHOWN
2 8.739-072.0 1 HOSE, 3/8" X 50', 2-WIRE TUFF-SKIN
3 4.775-054.0 1 EASY! FORCE ADVANCED KNA
1.110-049.0, 1.110-050.0,
1.110-051.0
- 8.751-234.0 1 GUN, LANDA, L1050, 5000 PSI, 10.4 GPM 1.110-072.0
4 8.711-293.0 1
WAND, UP ZNC (AL 344) W/CPLR
W/ SOAP NOZZLE
83-SSVPKIT 1 REPAIR KIT, AL STAINLESS STEEL
5 9.802-165.0 1 COUPLER, 1/4" MALE NOT SHOWN
- 9.802-096.0 1 O-RING
REPLACEMENT ONLY
NOT SHOWN
6 9.802-286.0 1 BRASS SOAP NOZZLE NOT SHOWN
7 9.802-216.0 1 DETERGENT INJECTOR ASSY
8 6.390-126.0 2 CLAMP, HOSE, .46-, .54 ST
9 8.707-139.0 1 COUPLER, 1/4"PLUG, MALE, STEEL/ZINC NOT SHOWN
10 9.802-164.0 1 COUPLER, 1/4"SOCKET, FEMALE, BRASS NOT SHOWN
Landa PGDC Operator’s Manual 8.916-596.0 - P
2
7
1
8
5,6
4
3
High Pressure
Nozzle
