REAR HOOD CLEARANCE
A minimum of 5.75" clearance is required from
the back of the grill (7.5" from the back of the grill
cut out) to allow the lid to open.
The grill exhausts combustion by products and
cooking greases to the back. Never locate the
grill where this exhaust residue will be difficult to
clean.

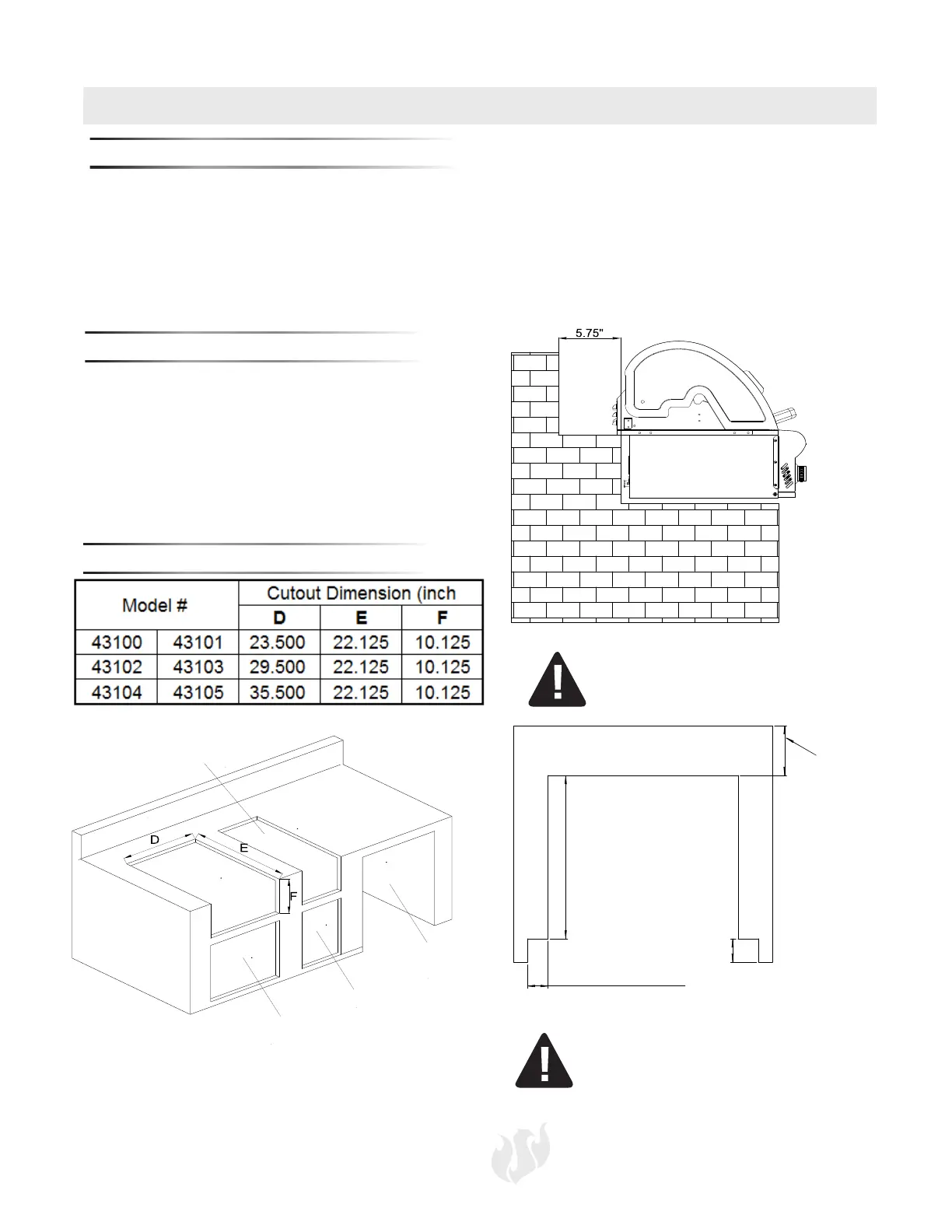

Cutout Dimensions for Built-in Grills
The hood must provide 3 to 6 inches of overhang on all exposed sides. The exhaust hood
shall provide no less than 1200 CFM for proper exhaust ventilation. The hood must be
approved for outdoor installation and provided with a dedicated GFCI protected branch circuit.
Installing the Appliance in a BBQ Island
Overhead Protection & Exhaust Removal
Do not install this appliance under any unprotected overhead combustible construction. If
installed under any combustible construction the cooking area over the grill must be covered
with an exhaust hood.
16
Side burner
Refrigerator
Vertical Door or Drawers
Horizontal Door or Door/Drawer Combo
Required additional grill & side burner details
IMPORTANT
IMPORTANT
Always have all Grill and Accessories on hand
when constructing and island to make sure of
proper fit.
9/16” for
Grills & Side Burners
Dim "E" From above
Notch depth equals
countertop overhang
CountertopNotch Detail
Allow minimum of 5.75"clearance
from the grill's rear edge
(7.5" from cutout ) to the
backsplash to allow hood to
fully open.
*ADD 7.5 TO ALLOW
FOR HOOD OPENING
