Manual radarTOUCH Version 3.4
T. Schwirten LANG AG
14.10.10
Page 28
5.6 Technical Data
Optical data
Angular range max. 190°
Angular resolution 0,36°
Scanning rate 25 scans/s or 40 ms/scan
Transmitter infrared laser diode, laser class 1 (EN 60815-1),
wavelength = 905nm, Pmax = 15W, pulse duration: 3ns,
average output power: 12µs
Response time approx. 40 ms (corresponds to 1 scan)
Electrical data
Voltage supply +24VDC +20% / -30%
Overcurrent protection via fuse 2.5A semi-time-lag in the switching cabinet
Current consumption approx. 1A (use power supply with 1.5A), approx. 2.5A with
heating
Power consumption < 75W at 24V including the outputs
Overvoltage protection overvoltage protection with protected limit stop

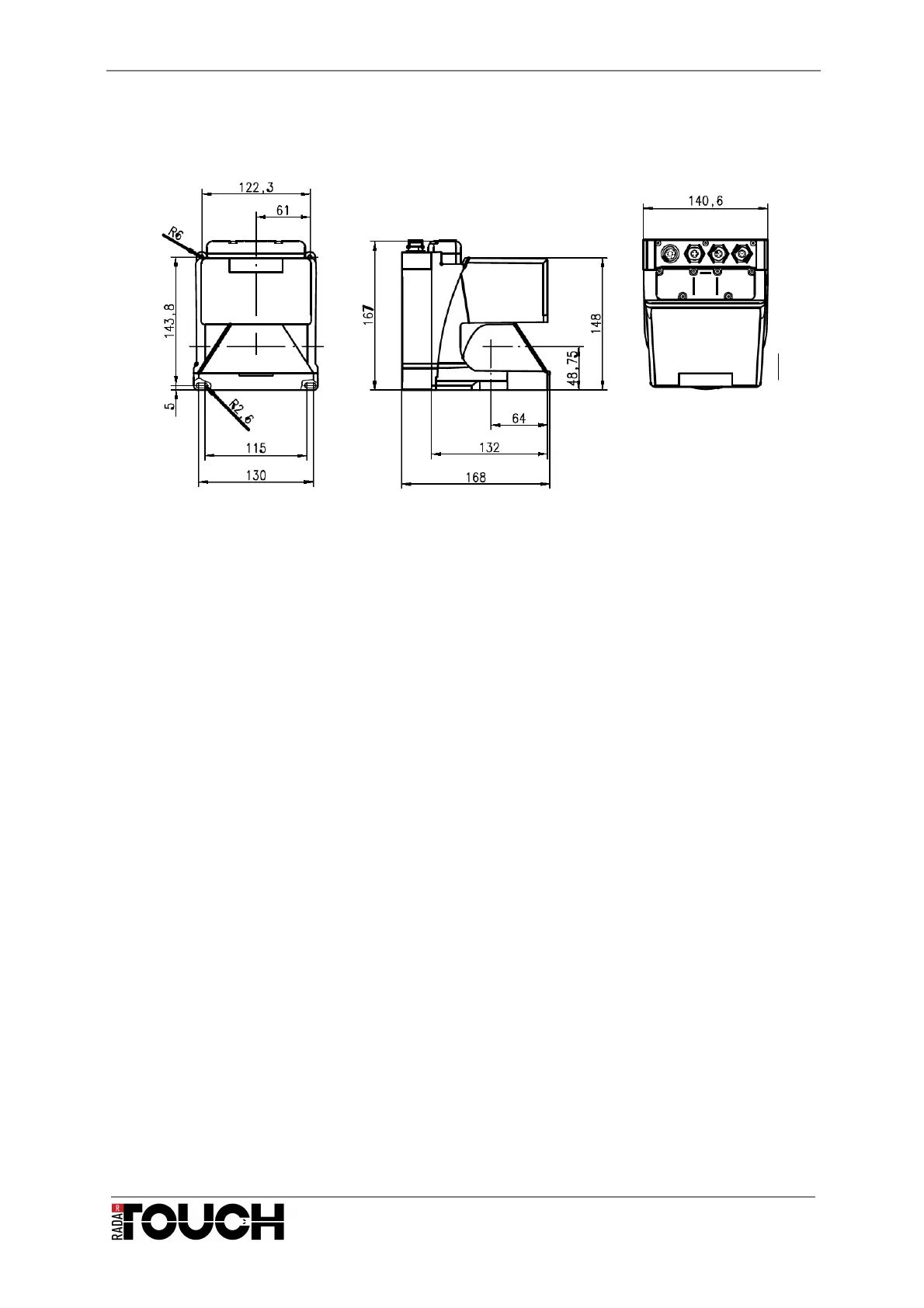

Mechanical data
Housing diecast aluminium, plastic
Weight 2,3 kg
Connection type 4 connectors (to be plugged from above)
Environmental data
Ambient temp. 0°C…+50°C/-20°C…+50°C
(operation/storage) -20…+50°C/-20°C…+50°C (RTouch-500plus – with heater)
VDE safety class II, all-insulated
Laser class 1 (acc. To EN 60825-1)
Protection class IP 65
Standards applied IEC 60947-5-2
