Lang Radar Touch RT500 User Manual

Manual radarTOUCH Version 3.4
T. Schwirten LANG AG
14.10.10
Page 3
This manual is made for the radarTOUCH software version [3.1], which offers a few
new features like build in MultiBlobViz.
1. radarTOUCH Contents
The radarTOUCH system should contain the following:
» RT500 measurement device (Figure 1)
- Power supply cable and mains adapter (Figure 2)
- Ethernet cable with 5Pin XLR female to Ethernet adapter (Figure 3)
- USB Dongle containing the radarTOUCH Software (Figure 4)
» Mounting system (not always necessary)
RT500 deluxe mounting system (Figure 5) with :
- Doughty half coupler and screw M10 * 30 (Figure 6)
- Two screws M5 * 45 (Figure 6)
- Two screws M5 * 50 (Figure 6)
- Safety wire
RT500 standard mounting system (Figure 7) with:
- Two screws M5 * 45
- Two screws M5 * 50
- Safety wire

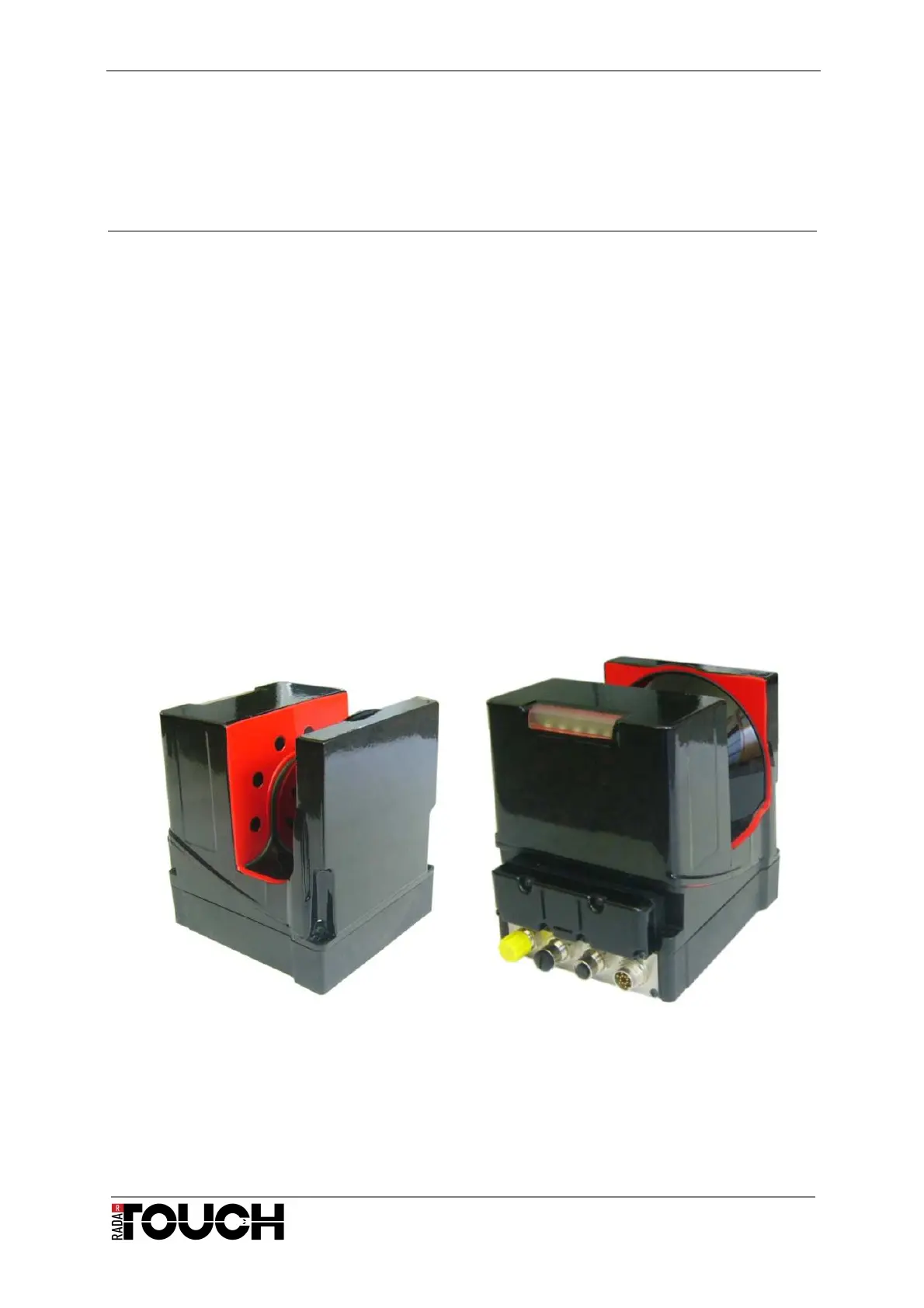

Figure 1 RT500 measurement device
(Colour might vary!)
