Lanner NCA-4010 Series - Page 20

Network Computing Platforms

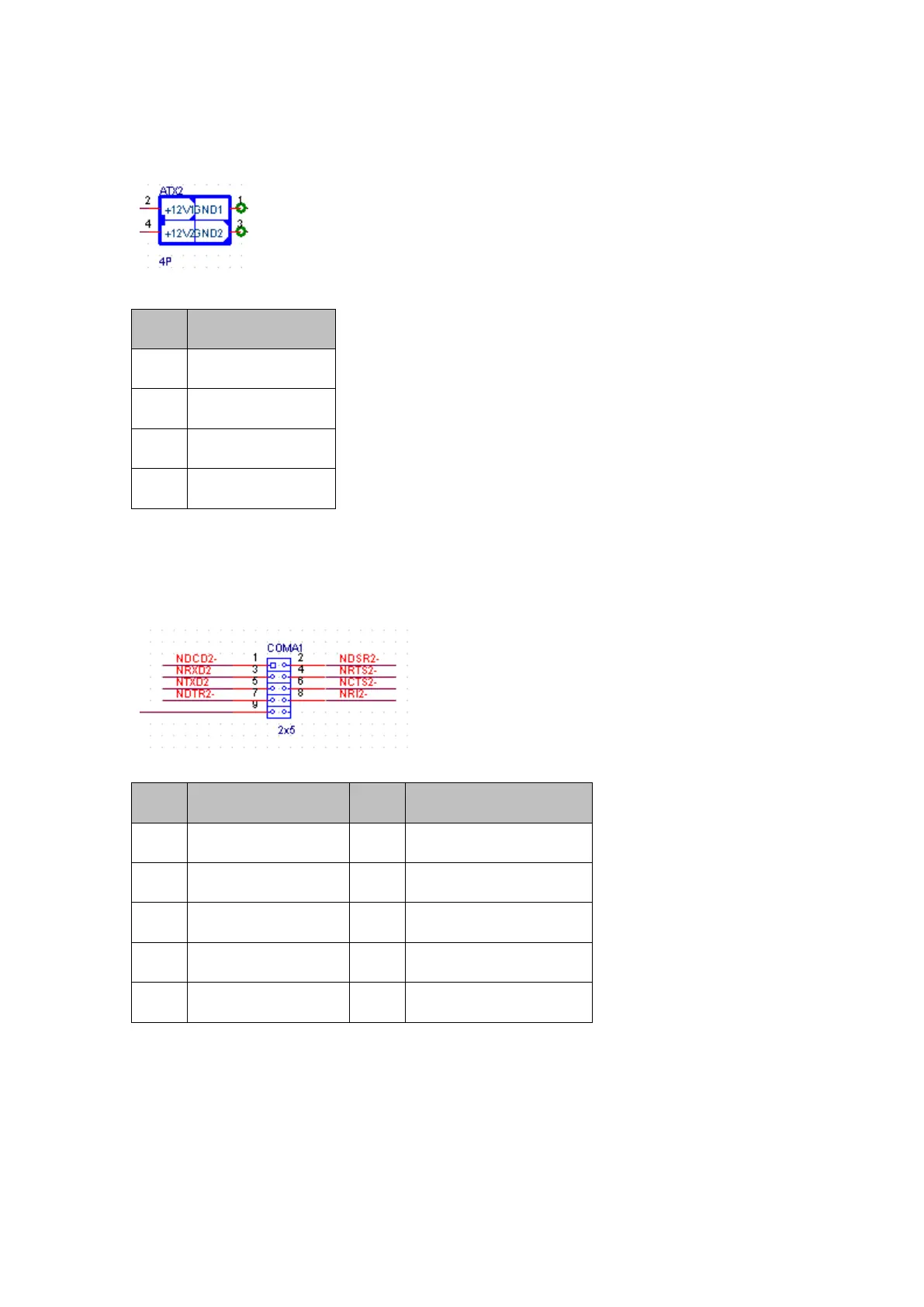

ATX2: 4-pin ATX power connector
COMA1: internal serial COM pin header
PIN
DESCRIPTION
PIN
DESCRIPTION
1
NDCD2-
2
NDSR2-
3
NRXD2
4
NRTS2-
5
NTXD2
6
NCTS2-
7
NDTR2-
8
NRI2-
9
GND
10
NC
PIN
DESCRIPTION
1
GND
2
12V
3
GND
4
12V
