Jumper Setting and Connector Pin-out

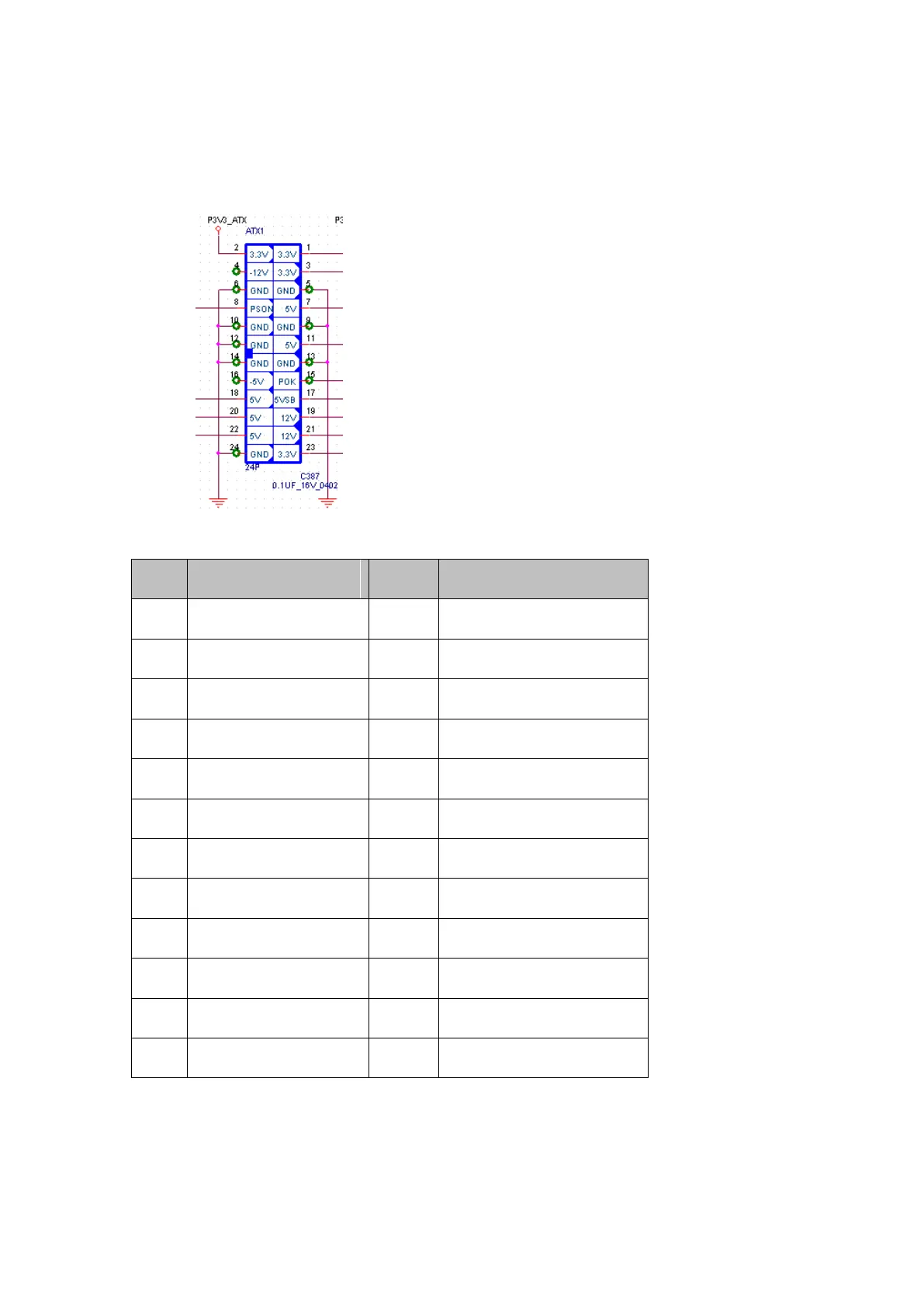

ATX1: 24-pin ATX power connector
PIN
DESCRIPTION
PIN
DESCRIPTION
1
3.3V
2
3.3V
3
3.3V
4
-12V
5
GND
6
GND
7
5V
8
PSON#
9
GND
10
GND
11
5V
12
GND
13
GND
14
GND
15
ATXPWGD
16
-5V
17
5VSB
18
5V
19
12V
20
5V
21
12V
22
5V
23
3.3V
24
GND
