Lanner NCA-4010 Series - Page 22

Network Computing Platforms

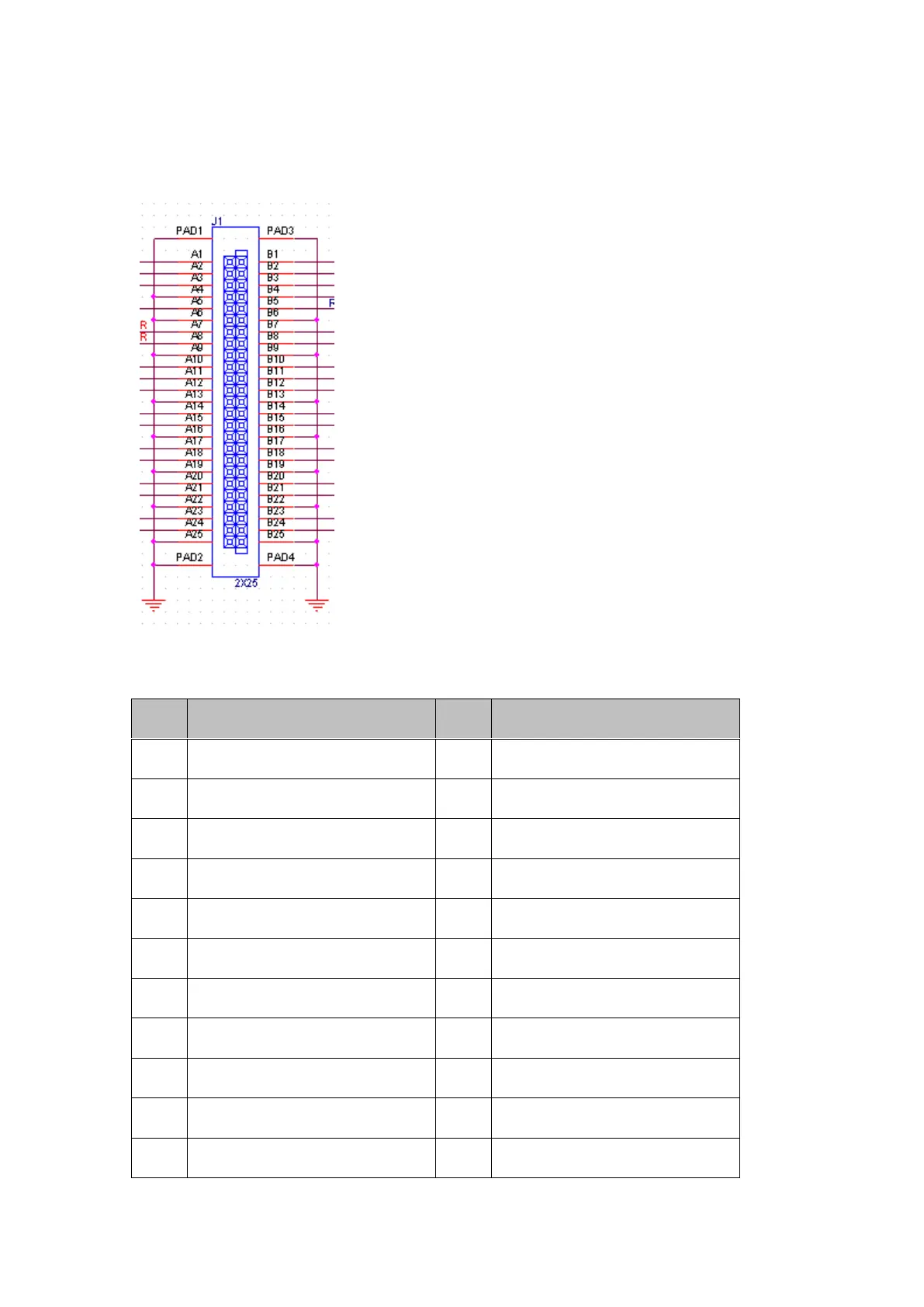

J1/2 : 2 x 50-pin I/O board connectors. NCA-4010 can be accompanied
by I/O board NM-4010IG401.
J1:
PIN
DESCRIPTION
PIN
DESCRIPTION
A1
P3V3
B1
P12V
A2
P3V3
B2
P12V
A3
P3V3
B3
PCH_SLOT3_A8
A4
GND
B4
PCIESLOT3_I350A_RST#
A5
P3V3
B5
PHY_WAKE#
A6
GND
B6
GND
A7
SLT3A_SCLK2
B7
CLK100_PCIE_SOLT3_1P
A8
SLT3A_SDAT2
B8
CLK100_PCIE_SOLT3_1N
A9
GND
B9
GND
A10
IO_LAN12GND
B10
IO_LAN34GND
A11
IO_P0_S0_1
B11
IO_P1_S0_1
