Lanner NCA-4010 Series - Page 31

Network Computing Platforms

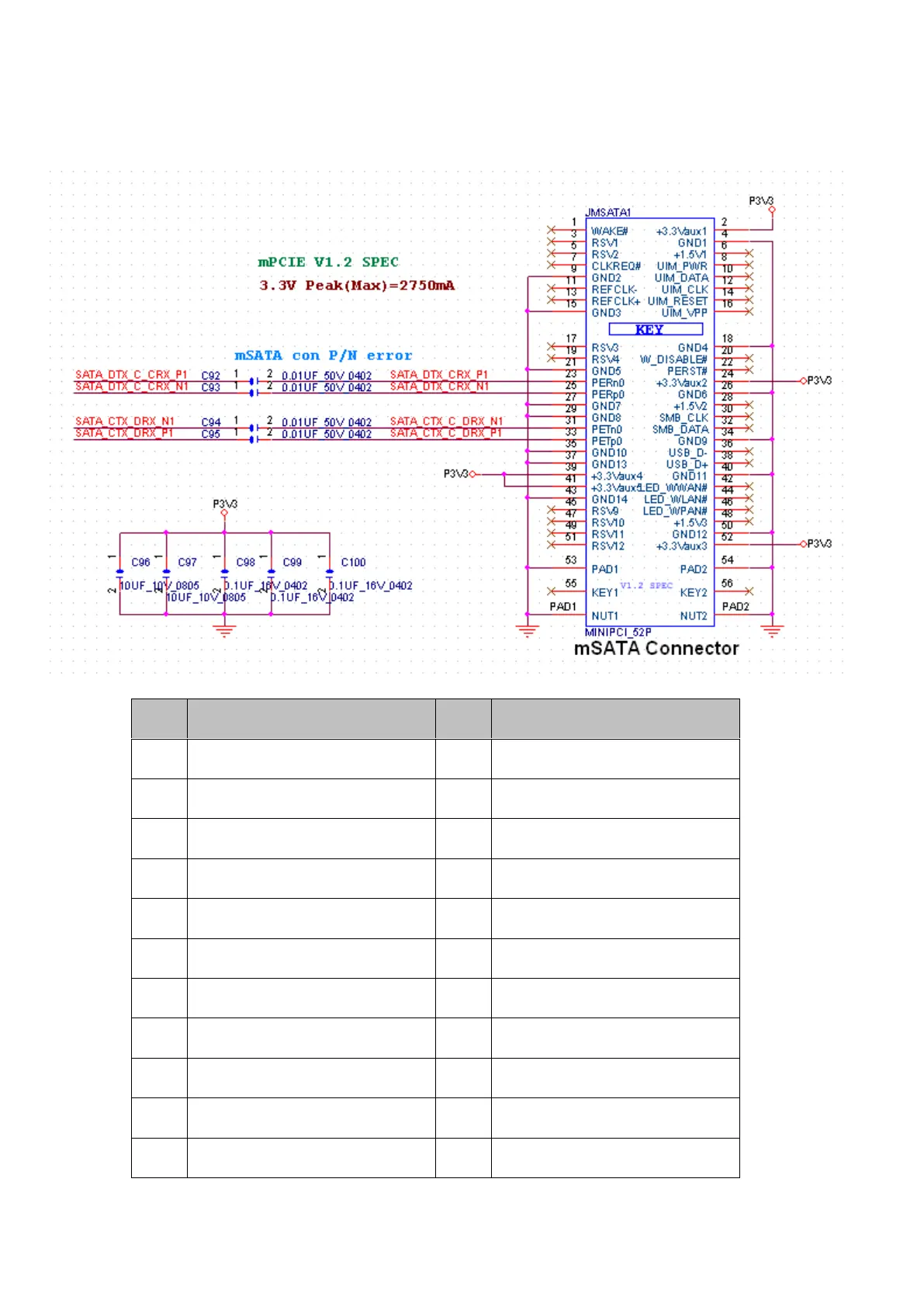

JMSATA1: mSATA module
PIN
DESCRIPTION
PIN
DESCRIPTION
1
NC
2
P3V3
3
NC
4
GND
5
NC
6
NC
7
NC
8
NC
9
GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
