7: Services

SLC™ 8000 Advanced Console Manager User Guide 121

the SLC unit and device ports. See the MIB definition file for details. The SLC MIB definition file

and the top level MIB file for all Lantronix products is accessible from the SNMP web page.

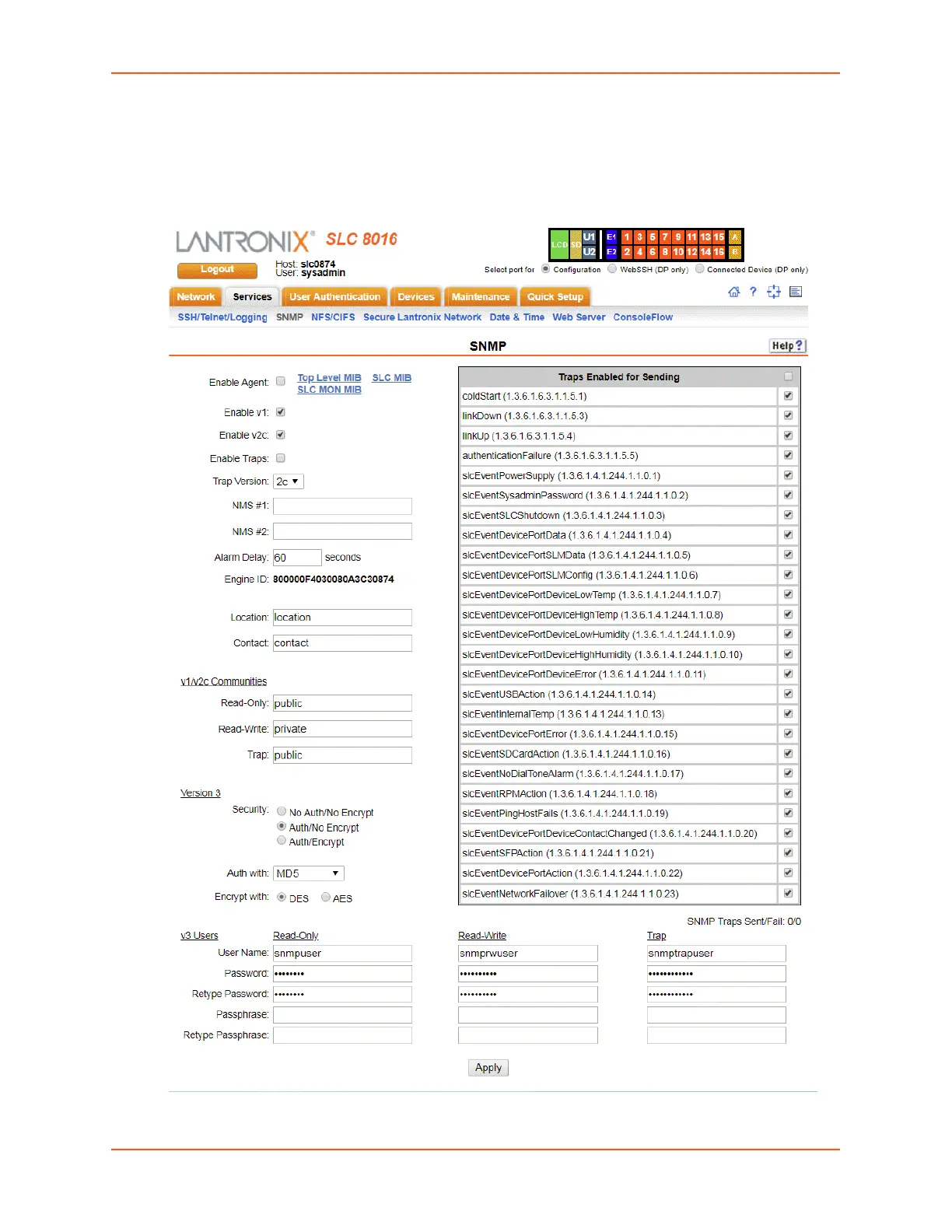

1. Click the Services tab and select the SNMP option. The following page displays:

Figure 7-2 Services > SNMP
