13: Maintenance

SLC™ 8000 Advanced Console Manager User Guide 296

To configure settings:

1. Click the Maintenance tab. The Maintenance > Firmware & Configurations page displays.

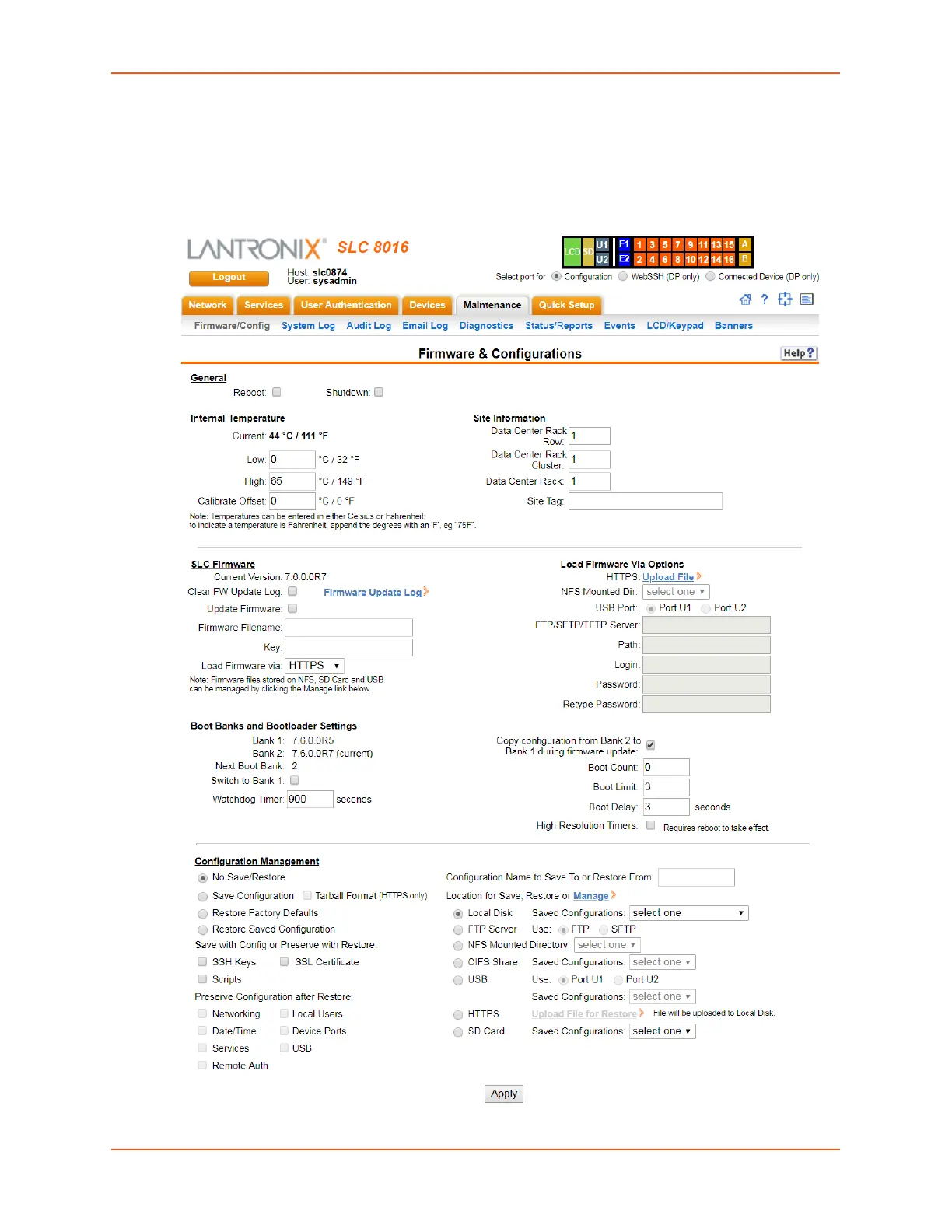

Figure 13-1 Maintenance > Firmware & Configurations

Main Page

Default Chapter2
