Lantronix SLC 8048 - Figure 2-3 Three 16-Port USB IO Modules Installed in Bays 1, 2, & 3 with Dual Ethernet Port; Figure 2-4 One 16-Port USB IO Module Installed in Bay 1 with Dual Ethernet Port; Figure 2-5 One 16 RJ-45 Serial Port IO Module (Bay 1) & Two 16 USB IO Module (Bays 2 & 3) with Dual SFP Port

2: Introduction
SLC™ 8000 Advanced Console Manager User Guide 29

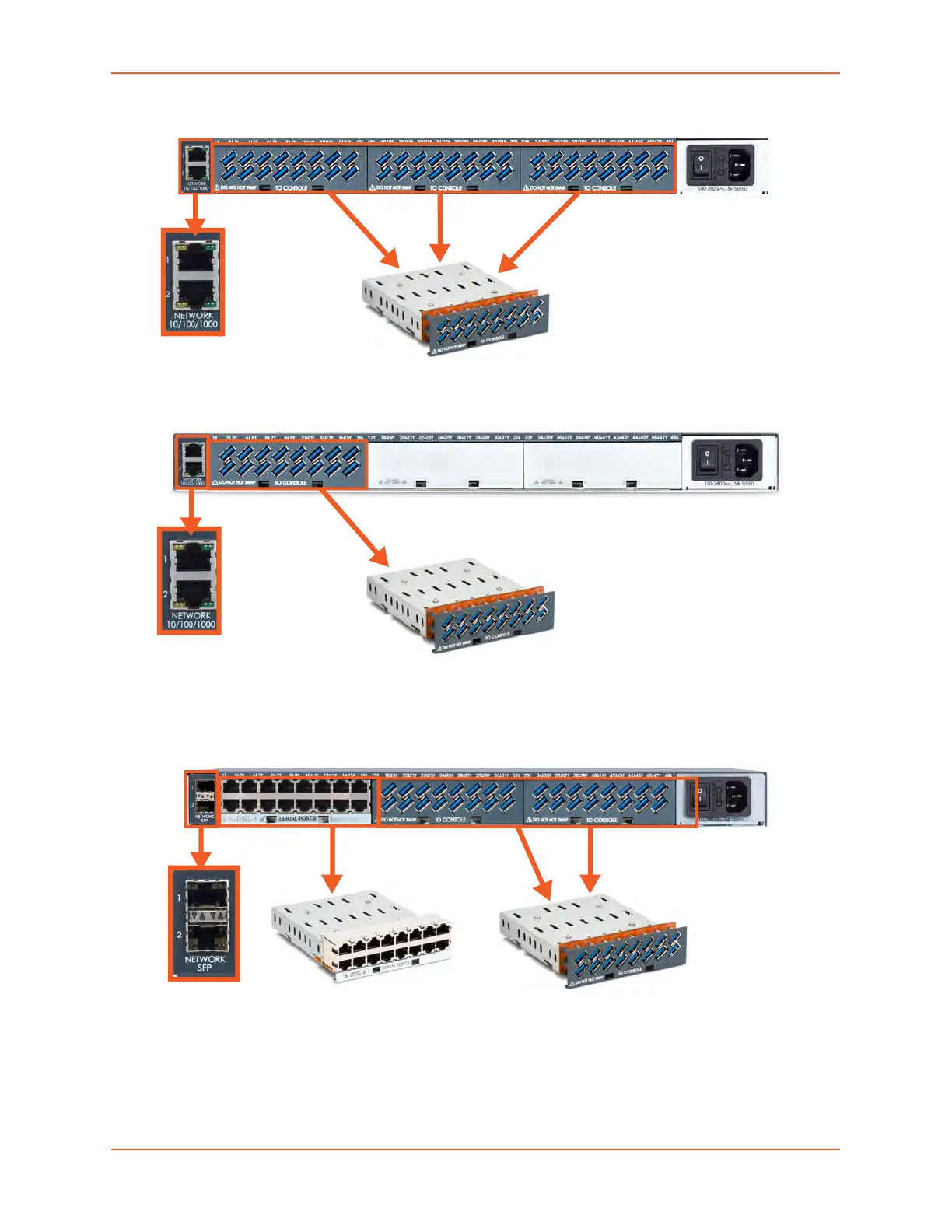

Figure 2-3 Three 16-Port USB I/O Modules Installed in Bays 1, 2, & 3 with Dual Ethernet Port
Figure 2-4 One 16-Port USB I/O Module Installed in Bay 1 with Dual Ethernet Port
Figure 2-5 One 16 RJ-45 Serial Port I/O Module (Bay 1) & Two 16 USB I/O Module (Bays 2 & 3) with
Dual SFP Port
Bay 1 Bay 2 Bay 3
Bay 1 Bay 2 Bay 3
Bay 1 Bay 2 Bay 3
