3: Installation

SLC™ 8000 Advanced Console Manager User Guide 49

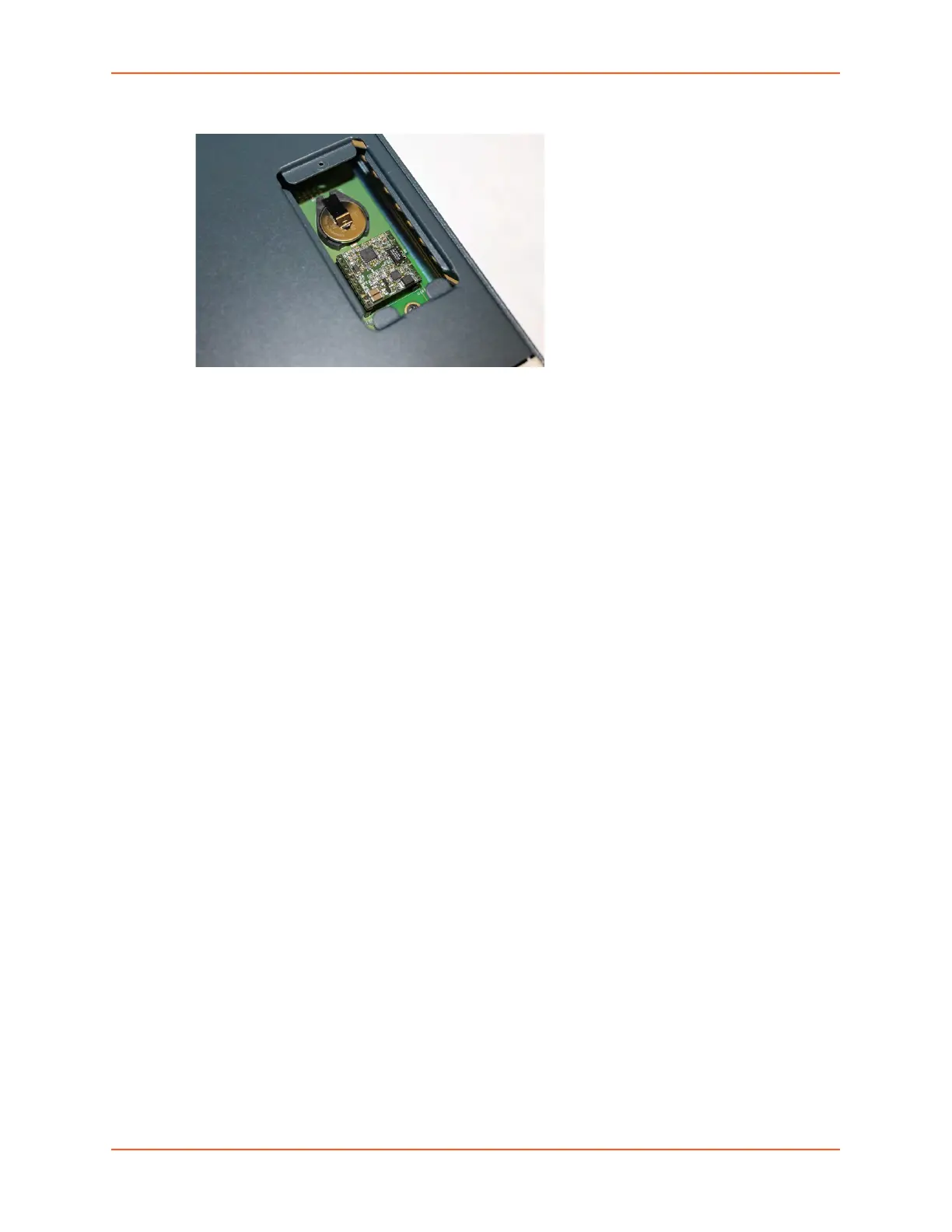

b. Press the modem down to make sure it sits down all the way in the socket.

9. Double-check the battery and modem placements to make sure they are done properly.

10. Place the battery/modem door back.

11. Carefully tighten the door screw.

12. If necessary, reprogram the SLC system date-time after installing a new battery.
