3: Installing the UBox
UBox User Guide 12
2. Once the UBox has power, notice the following:
The UBox's status lights turn on and off. After a few seconds, the lights stop
blinking.
If the UBox is responding properly, the green USB lights turn on and stay
solid.
The first green SYSTEM light blinks on and off every few seconds. Ignore
any other status lights for now.

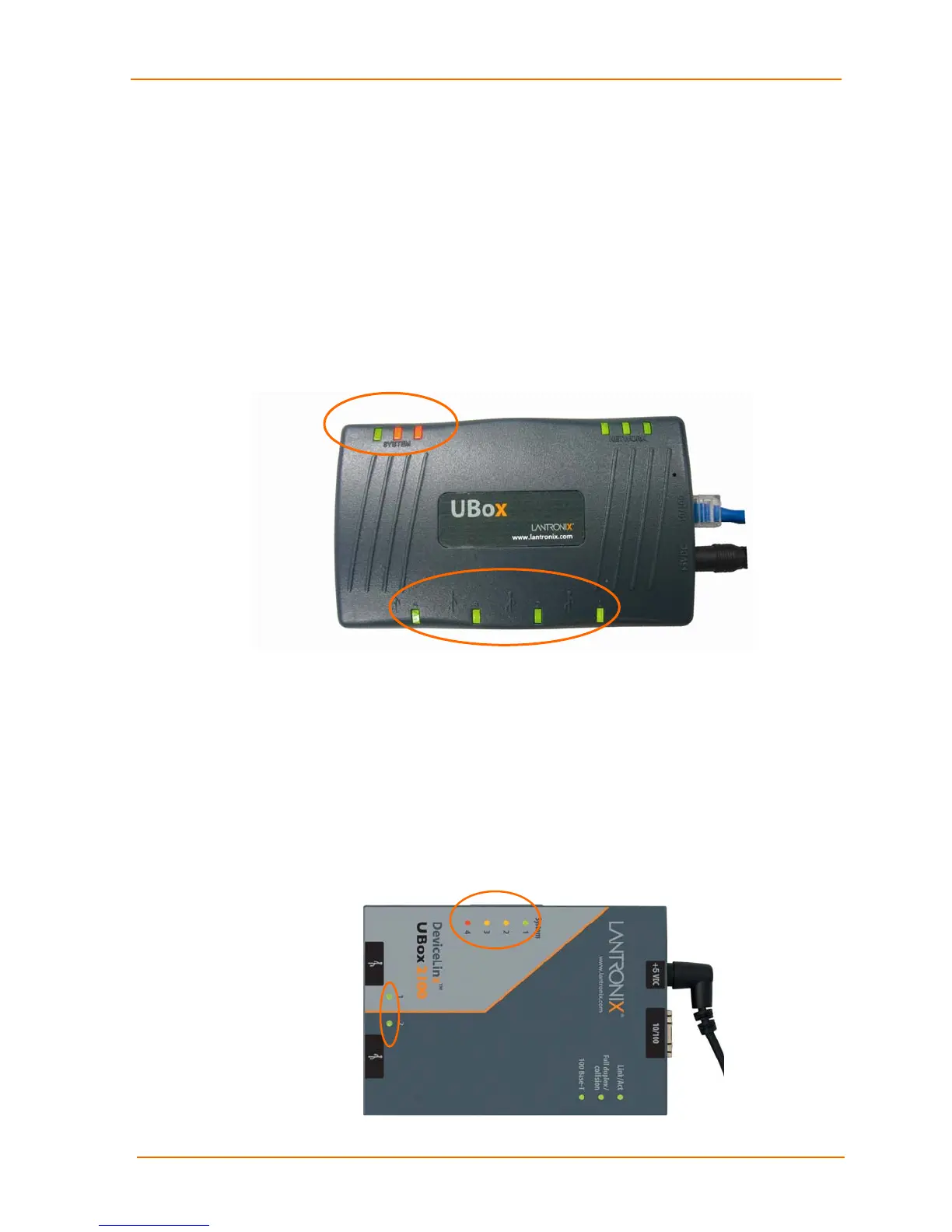

Figure 3-2. UDS4100 SYSTEM LEDs
Note: The LEDs on the UBox can also indicate other statuses, such as IP
configuration type and UBox status. For a detailed description of what the
LED lights indicate, see 8: Status Light Behavior.
Figure 3-3. UDS2100 SYSTEM LEDs
USB
SYSTEM
SYSTEM
USB
