Lantronix UBOX 2100 - Status Light Behavior

UBox User Guide 59
8: Status Light Behavior
The Lantronix UBox comes equipped with LED lights that report the status of the
Lantronix hardware.

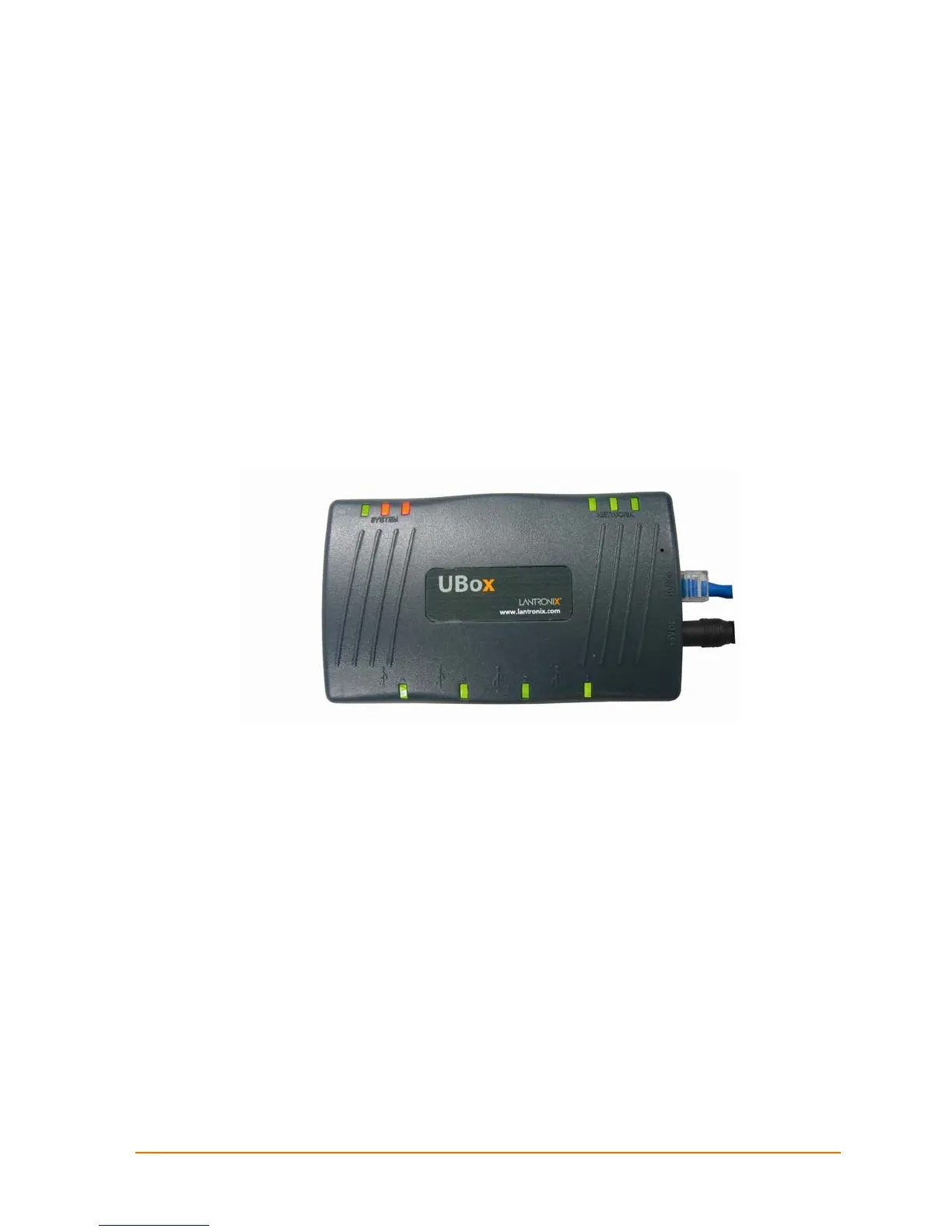

Figure 8-1. Position of Status Lights on the UBox
SYSTEM NETWORK
1 2 3 1 2 3
USB
4 3 2 1
