5. Sail Number positioning – Sport sails
If you intend to race your Pico you will have to attach your sail numbers. It is advised to
apply the sail numbers in a dry, clean and wind free environment.
7. Lay the sail on a flat surface starboard side up.
8. The numbers on the starboard side are always higher than the port side.
9. Measure 60mm below the middle batten and draw a line parallel to the batten
pocket. This marks the top line for the starboard sail numbers.
10. Measure 70mm from the leach and draw a line parallel to the leach and
perpendicular to the line previously drawn.
11. Position the starboard sail numbers starting with the first digit squared to the top
and leach lines.
12. The remaining numbers should be square to the previous number and 60mm
apart.

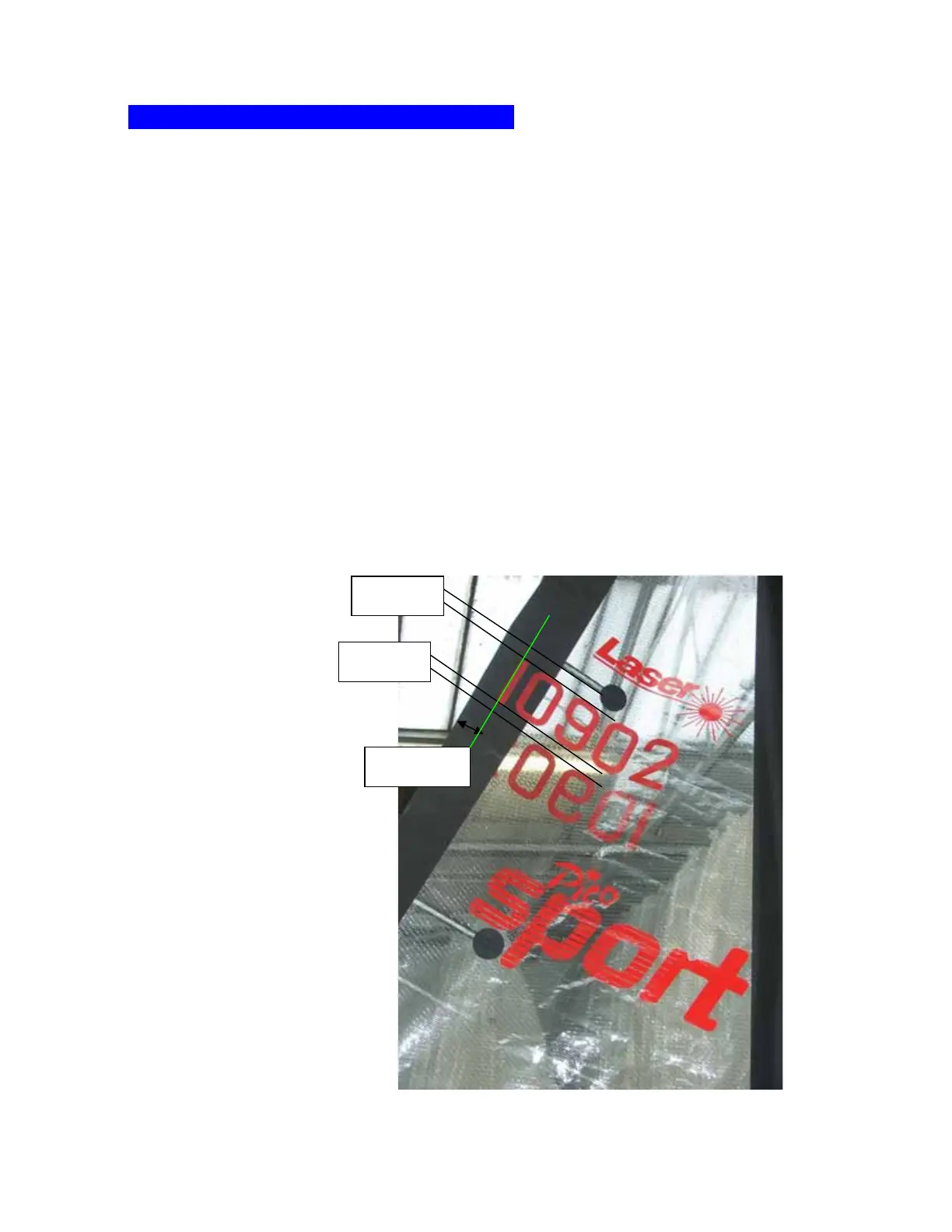

Turn the sail over and mark a line on the port side of the sail 60mm below the starboard
numbers. Starting with the last digit work from the leach line position the sail numbers
60mm apart as above.
70mm
60mm
60mm

Laser Pico Specifications

General

Type	Dinghy
Crew	1-2
Designer	Jo Richards
Length	3.50 m
Hull weight	60 kg
Sail area	5.1 m²
