5 Preparations
5.1 Assembly and setting up
☞
−
Place the unit on a flat surface
−
After transport and before starting up, store
it standing in upright position for two hours
if possible
−
Do not cover the ventilation openings at the
back of the unit and its lower part.
Keep clear distance of at least 40 cm.
−
Adjust the pump setting knob so that when
using the unit as bath thermostat (no
external circulation) the flow emerges at
the opening for the bath circulation, or link
together the pump connections.
(See ill. 3).
Operation with external consumer
(circulation
thermostat) (
➾
Section 5.4.)

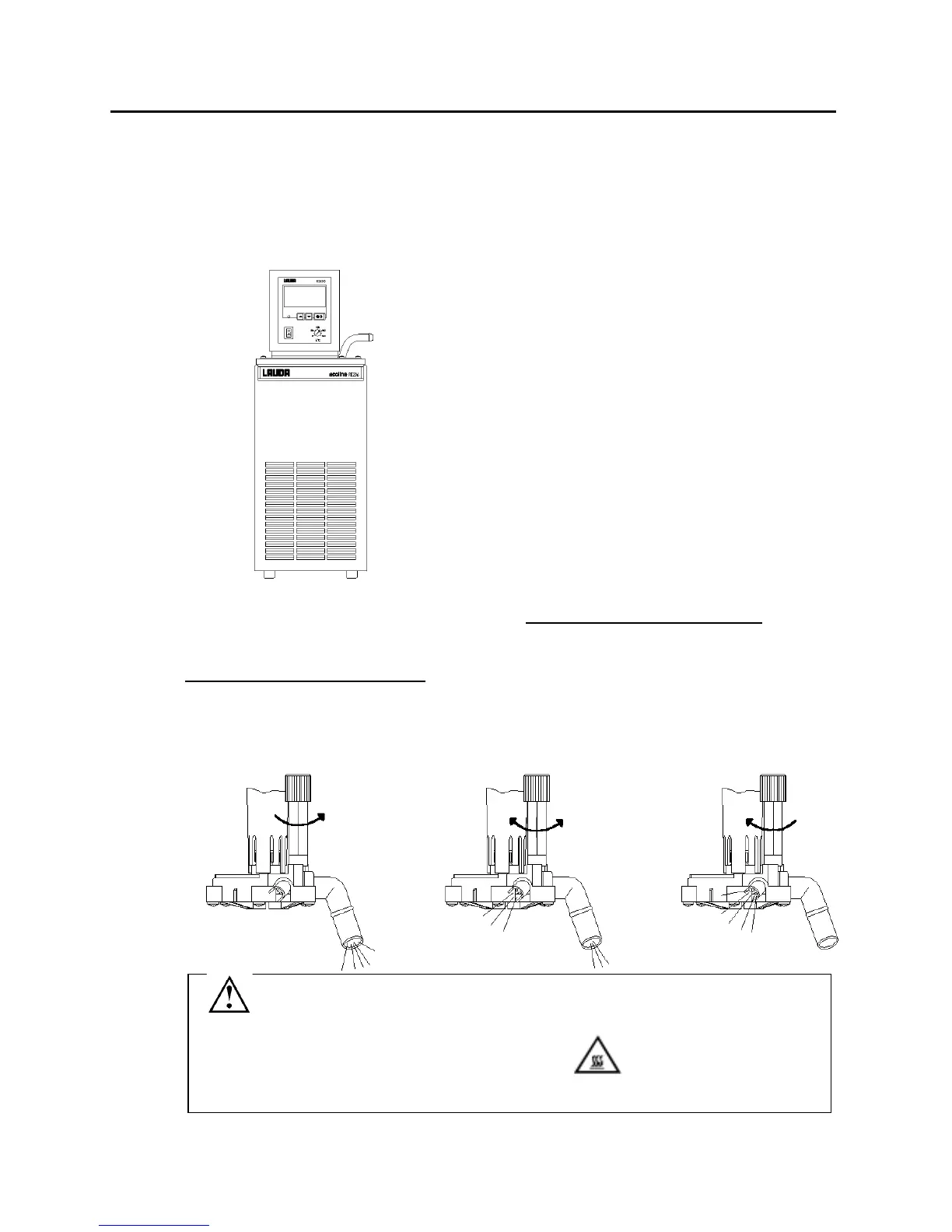

Adjustments of the pump outflows
Ill 1
Pump setting knob turned
anticlockwise
Ill 1
Pump setting knob medium
position
Ill 3.
Pump setting knob turned
clockwise
−
When operating as bath thermostat without external consumer the pump
connection outflow has to be closed (use closing plugs) or linked to the return.
−
At bath temperature above 70°C the label
supplied must be affixed on
the bath in a clearly visible position!
