26
−

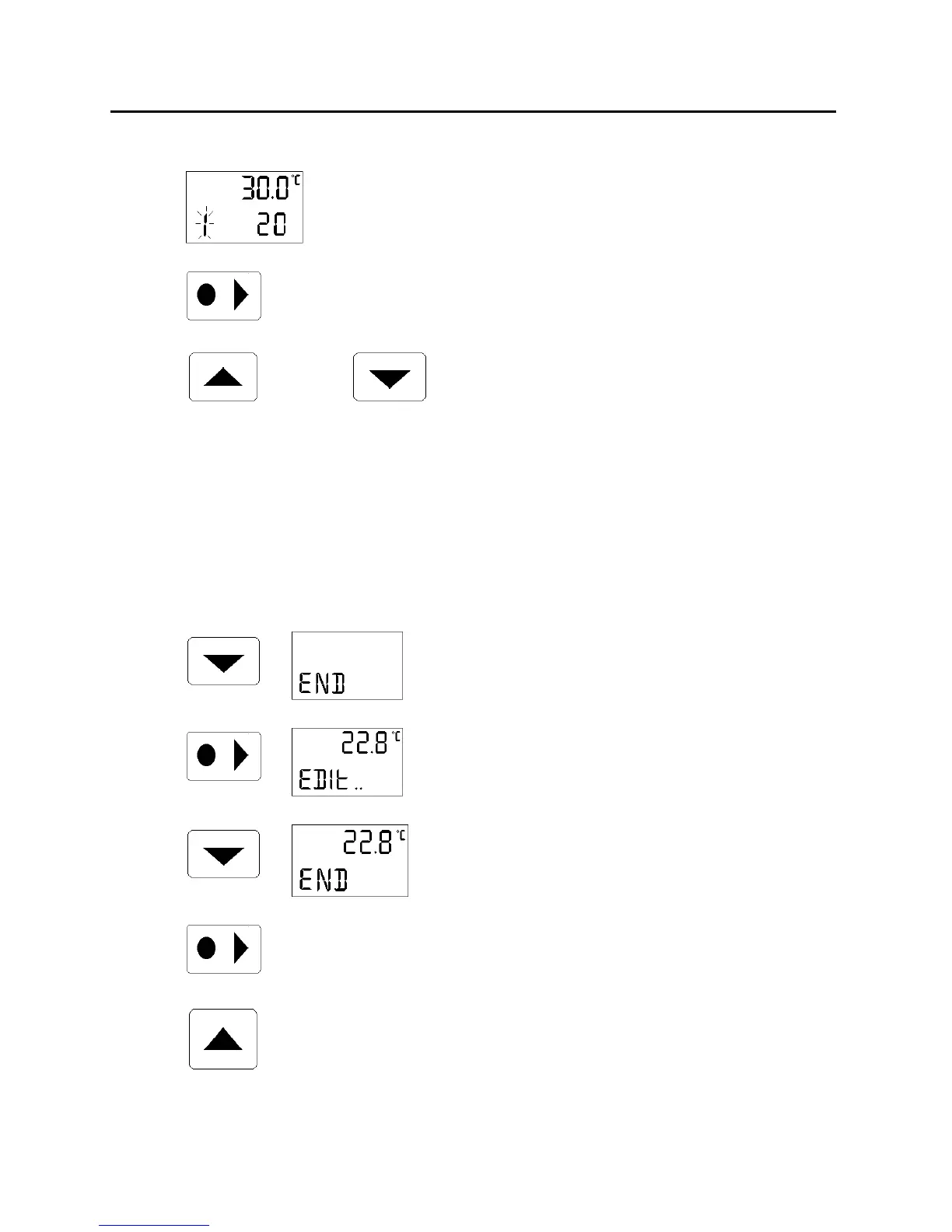

The variable currently activated flashes quickly (here the
segment number).
−
To alter the required variable start with this key
or
−
If e.g. the segment number is flashing, all segments can
be indicated in sequence by pressing one of the two keys,
or
−
if segment temperature or segment time are flashing, the
required temperature or time can be input by pressing the
key and then using the other two keys:
−
Segment temperature.: 2 °C max. above the upper limit of
the operating temperature range of the particular
thermostat type.
−
Segment time: 0...255 min.
−
After having changed the segments move forward with
key to END
1. Forward with the key to EDIT..
−
with the key to END and then
−
back to level 0 with the key, or
2. with the key back to LOOP (
➾
Section 6.4.4.3.) resp. to
RUN (
➾
Section 6.4.4.4.)
