LAUNCH X-431 GDS User’s Manual
2. About X-431GDS
2.1 X-431 GDS Main set

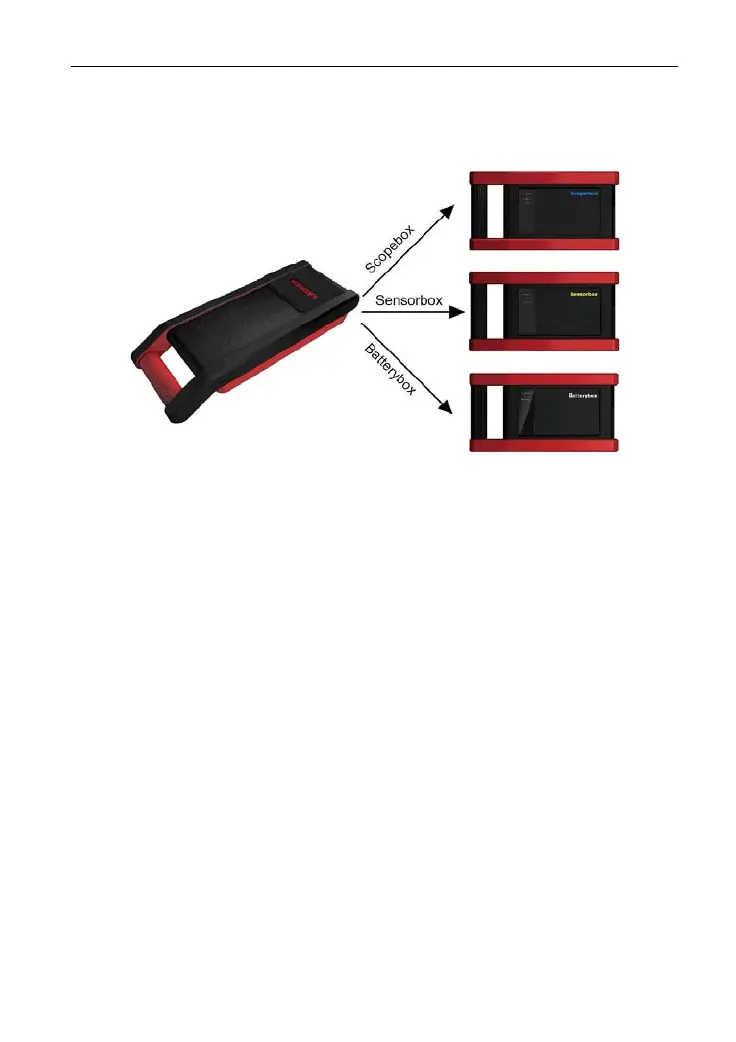

Figure 2-1 X-431 GDS Diagram
2.1.1 Composition
z Main Unit
Including display, diagnosing, printing and all standard functions of
handheld computer; ba
sed on Windows operating system; built-in large
capacity hard disk to memorize data; supports Wi-Fi communication.
z Scopebox (Optional)
Special Scope
box and ignition analysis functions for vehicles are
supplied.
z Senso
rbox (O
ptional)
V
ehicle senso
r analog
test and multimeter test are supported.
z Batte
rybox (Optional)
Detects the ve
hicle battery status and provides inside-the-vehicle and
outside-the-vehicle testi
ng modes.
3
