LAUNCH X-431 GDS User’s Manual

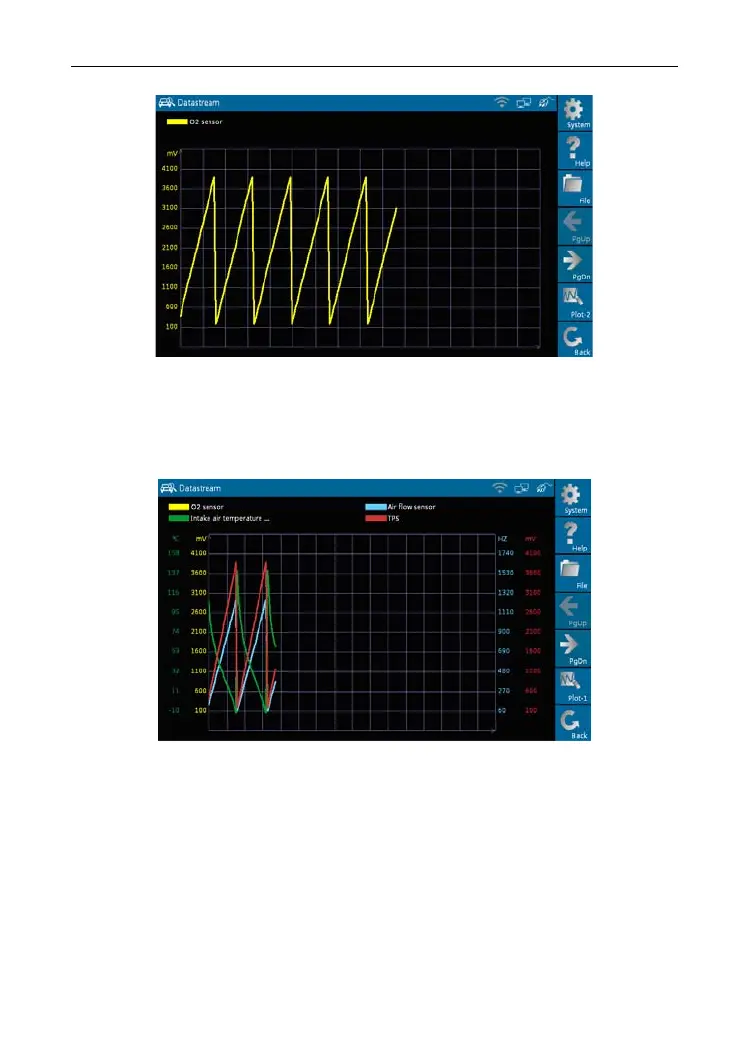

Figure 3-13
In Figure 3-13, click [Plot-2],
[Plot-3], [Plot-4]…etc., four waveforms of
selected data stream displayed in different colors will appear on the screen,
which helps you view easily, as shown in Figure 3-14.
Figure 3-14
3.3.4 Special Function
This function is applied to detect whether the system parameters are normal or
not.
Click [
Special function] in function me
nu, the screen will be shown as Figure
3-15.
38
