LAUNCH X-431 PAD V User's Manual
refer to Chapter 5.5.4.
Camera: Open camera to take pictures.
5.5.4 Launch Remote Diagnosis (Device-To-Device)
The X-431 PAD V handset is allowed to initiate remote diagnosis with
other diagnostic tools (including but not limited to the X-431 PAD V) of
Launch family, which are equipped with this module.
* Notes: Before performing this operaon, please make sure the following
no maer which side sends the remote request:
• Turn on the vehicle power supply.
• Throle should be in a closed posion.
• The X-431 PAD V should be properly connected to the vehicle’s DLC and a
successful communicaon is required.

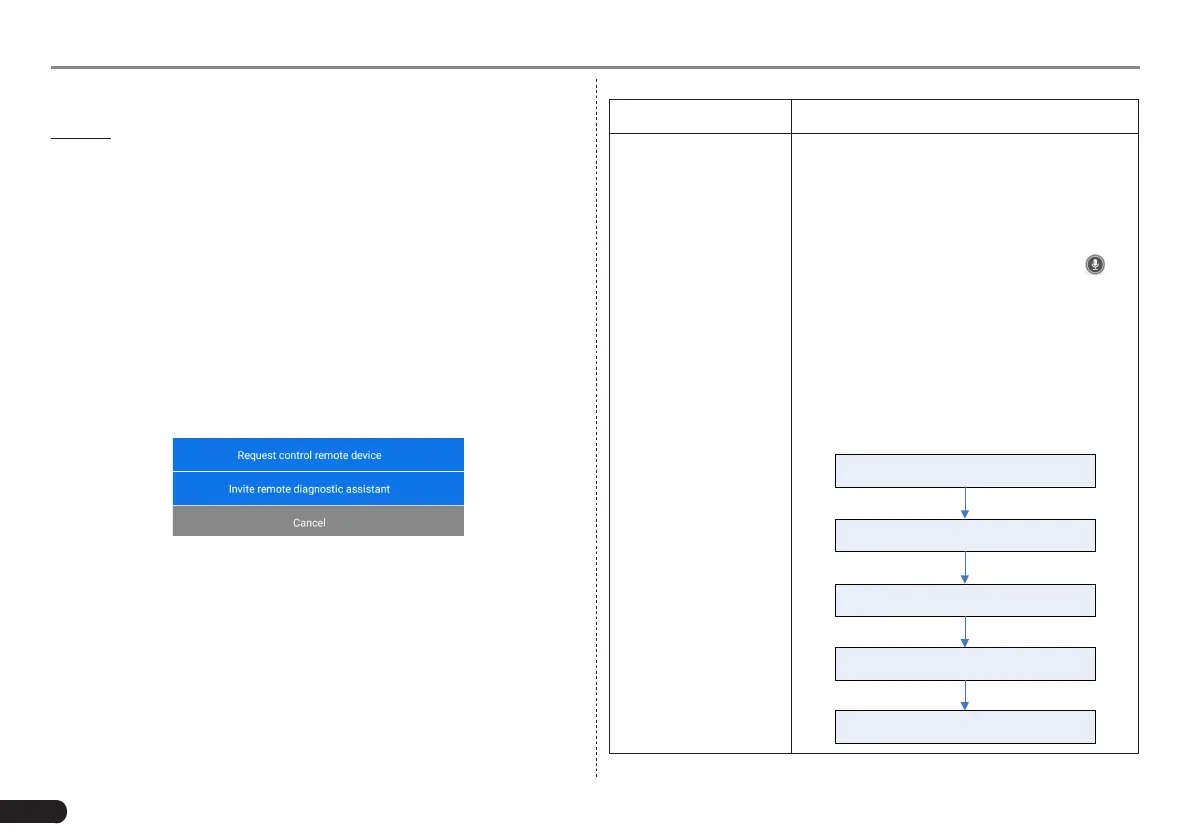

In Fig. 5-43, tap “Remote Diagnose”, a pull-down menu including the
following options appears:
Fig. 5-44
These options are dened as follows:
Actions Results
Request control
remote device
Request to control the partner’s device
remotely to help him diagnose the vehicle.
*Notes:
• Remote diagnosis has the same diagnostic
steps as manual diagnosis.
• In process of remote diagnosis, tap the
buon to send a voice message.
• Once vehicle diagnosis is complete, a report
will be created. Input your comments on this
report, and then tap “Send Report” to send it
to the partner.
• If you have a local vehicle diagnosis in process,
please exit it first before starting remote
diagnosis.
Tap “Request control remote device”
Wait for partner’s confirmation
Start connecting after request confirmed
Start Diagnosis
Generate diagnostic report
