LAUNCH X-431 PAD V
User's Manual
73

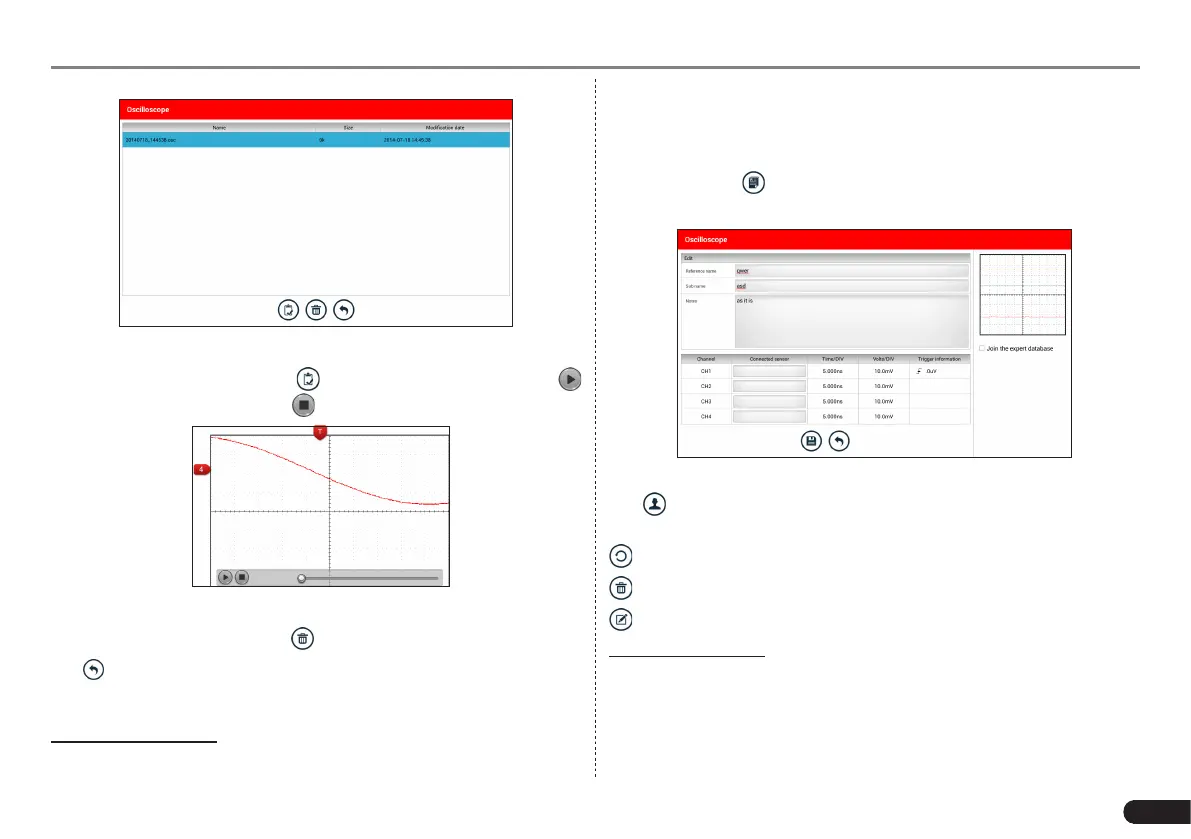

Fig. 7-36
Select the le rst, and then tap to open the waveform le. Tap
to starting the playback and tap to stop it.
Fig. 7-37
To delete the waveform le, tap .
Tap to return to the previous screen.
7.3.4.6 Expert reference
<1> Expert Reference
By default, it appears blank. As a matter of fact, Expert reference
database is generated by doing the following:
1. Open and edit a snapshot;
2. Select “Joint the expert database” (refer to the following illustration),
and then tap to save the waveform being displayed on the
screen as REF.
Fig. 7-38
Tap and then [Expert Reference] to enter, the following operation
can be done:
: To load and recall the selected le.
: To delete the selected le.
: To edit the selected le.
<2> Base Reference
Preset waveforms of some sensors are available for your reference.
