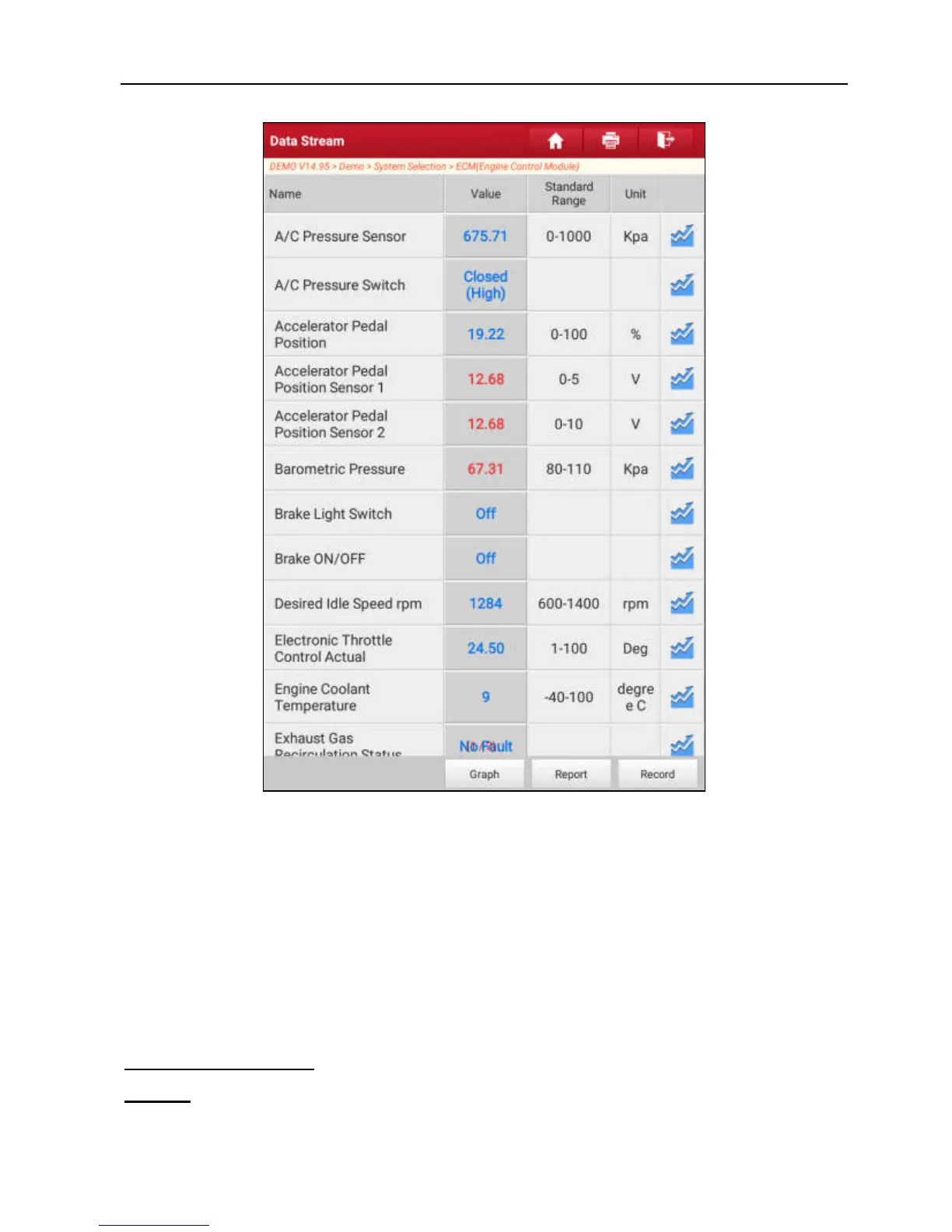

Fig. 5-22
Notes:
1. If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in blue (normal mode).
2. The indicator 1/X shown on the bottom of the screen stands for the current
page/total page number. Swipe the screen from the right/left to advance/return to the
next/previous page.
On-screen Buttons:
Graph:
After selecting, tap it to view the waveform. There are 3 types of display
modes available for data viewing, allowing you to view various types of
parameters in the most suitable way.
To Next Page
