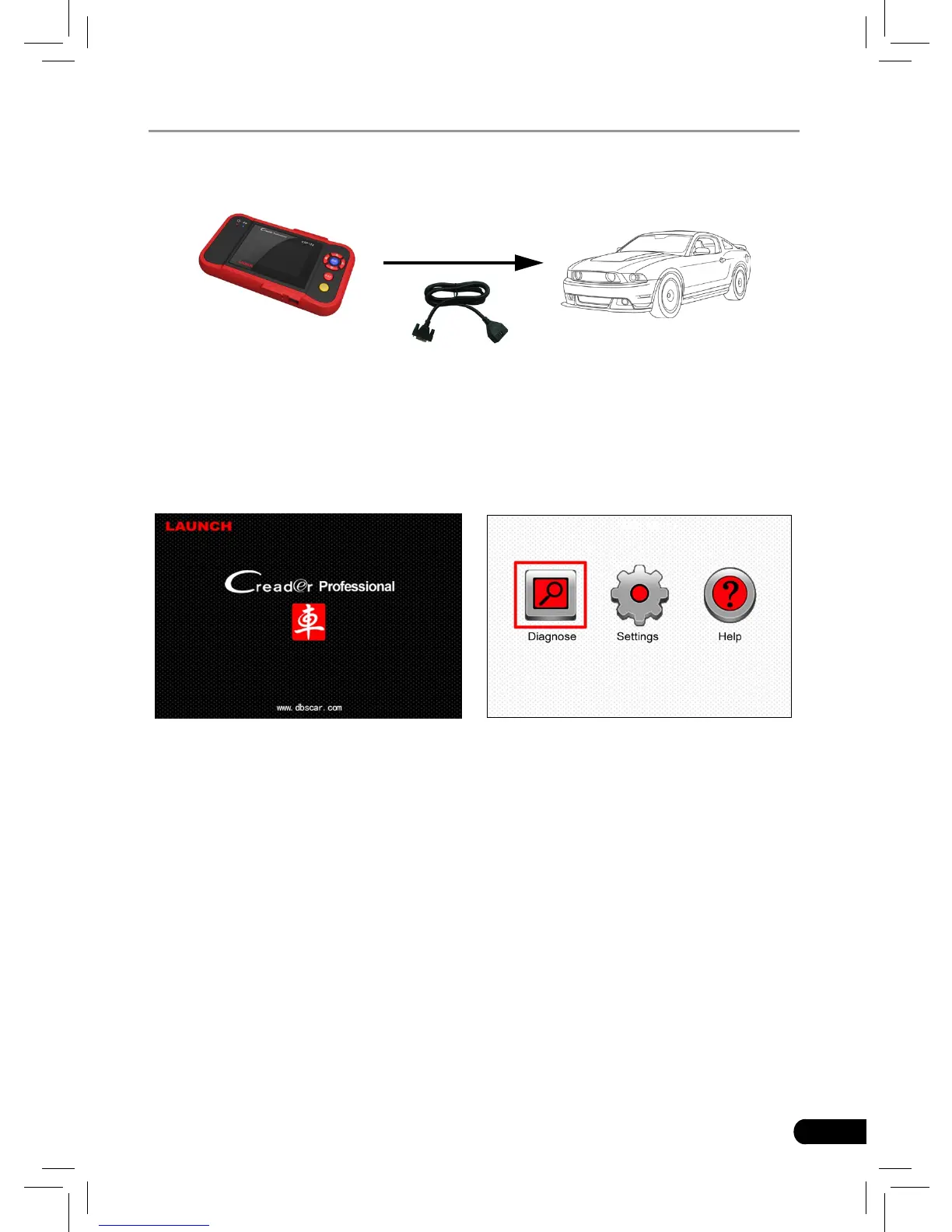

Plug one end of the diagnostic
cable to diagnostic interface,
then connect the other end to
vehicle's DLC.
Figure 4-1
Turn the ignition on. Engine can be off or running.4.
After nishing, the system will start initializing. After initialization, the system 5.
will enter the main menu interface. See Figure 4-2 & Figure 4-3.
Figure 4-2 Figure 4-3
CAUTION: Don’t connect or disconnect any test equipment with ignition on or
engine running.
