3.3 Operations
3.3.1 Channel selection and attributes setting
<1> Channel selection
There are two ways available for channel selection.
A. Select from the channel menu;
B. Select via each channle attribute button.

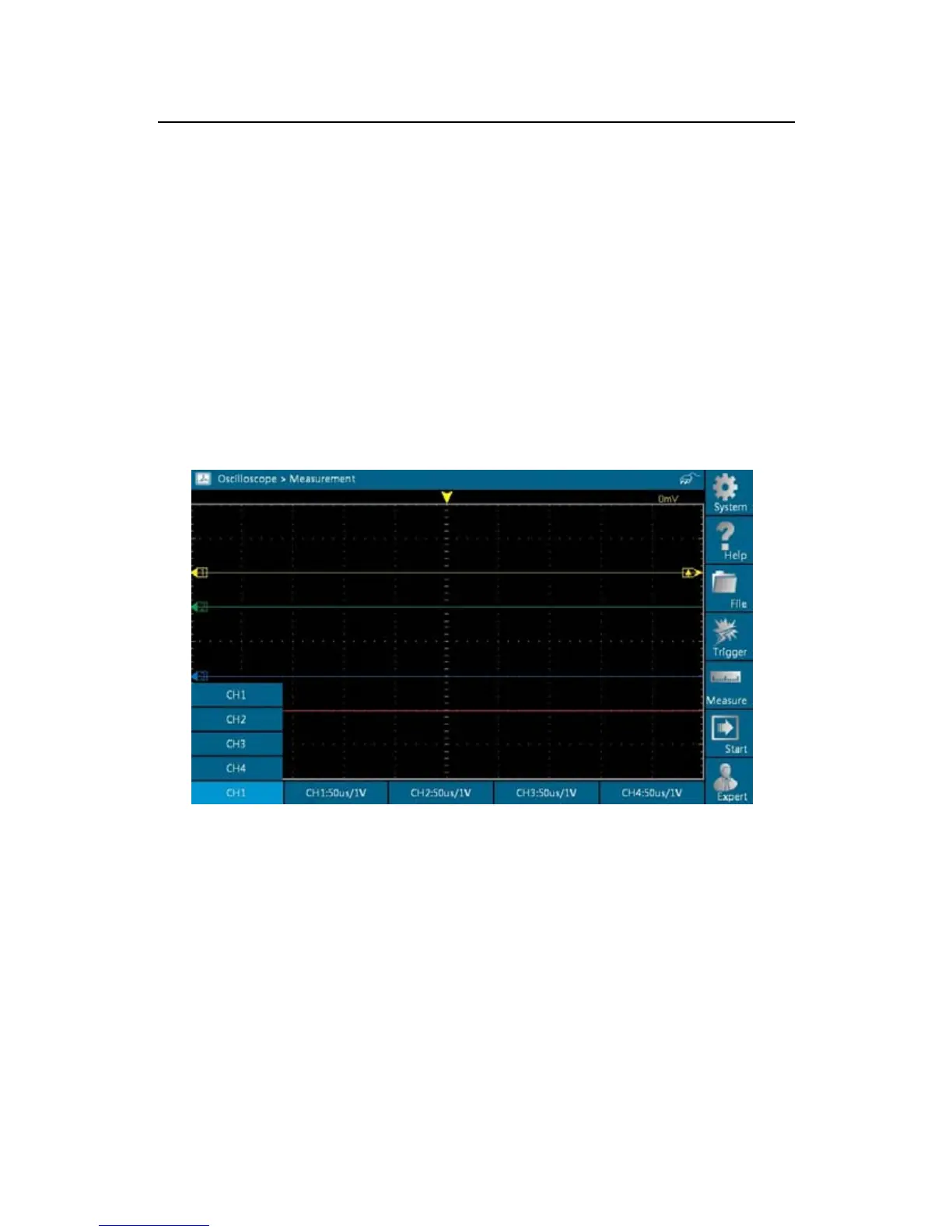

See Fig. 3-2.
Fig.3-2
<2> Channel attributes setting
Each channel features five attributes.
A. Channel switch selection.
B. Channel voltage adjustment: + indicates increase voltage by one
level, while –
indicates decrease voltage by one level.
C. Channel time-base adjustment: + means to increase time-base
