LAUNCH X431 GDS Scopebox Manual
by one level and – means to decrease time-base by one level.
D. Channel phase selection: normal phase or reverse phase.
E. Channel coupling modes selection: DC, AC, or Ground.
See Fig.
3-3 and Fig. 3-4 for channel 1 & channel 4 attributes setting
interfaces re
spectively.

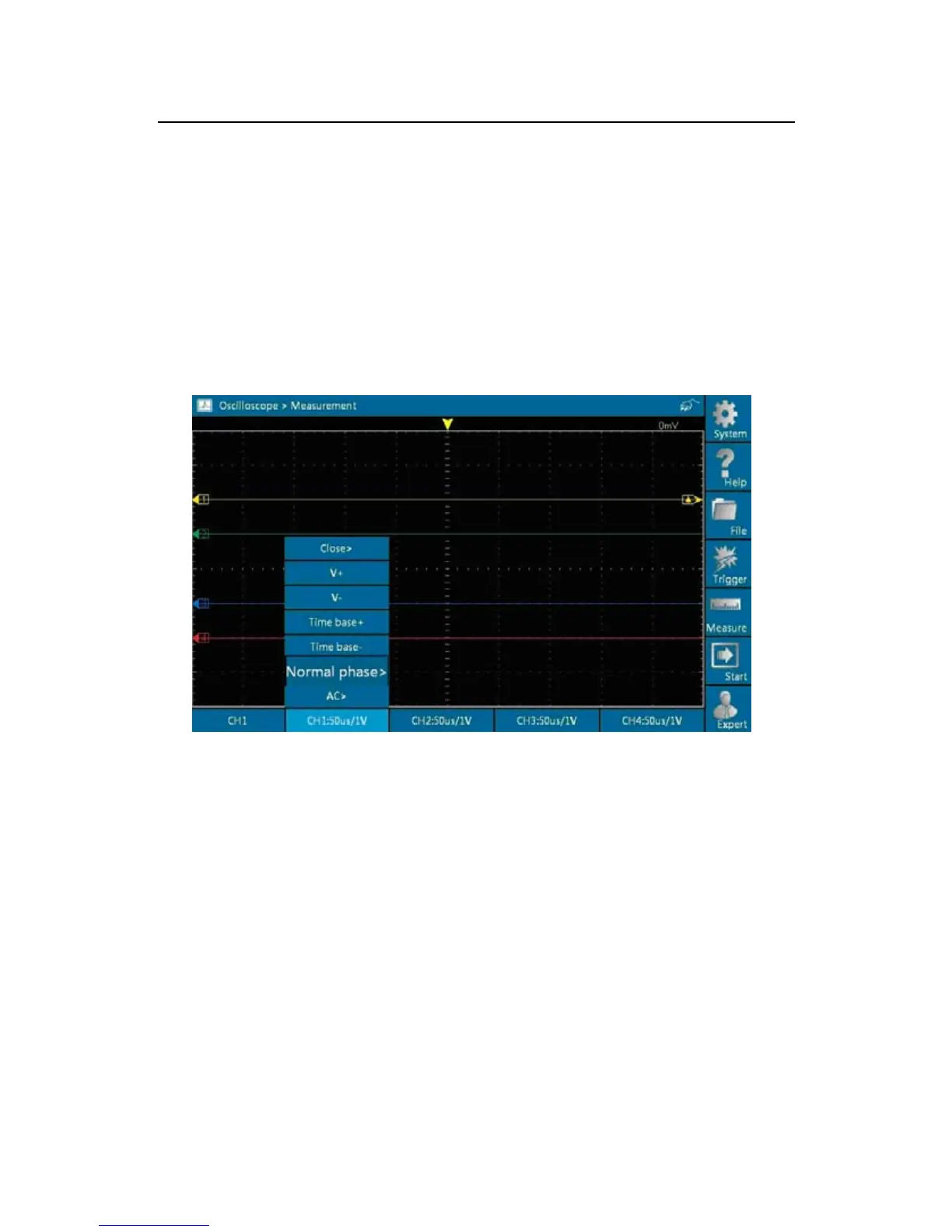

Fig.3-3 Channel 1 attributes setting
