Button descriptions：
[Timebase]: used to s
elect mode. When it is displayed as timebase,
it is in time measurement mode;
[A line]: enables you to select A\B measurement line. The currently
selected line i
s a solid line;
Left\Right move: fine adjutme
nt button for timebase;
A\B line: time measurement line;
Measurement value display area: an area for displaying time
measu
reme
nt result.
<2> Voltage measurement

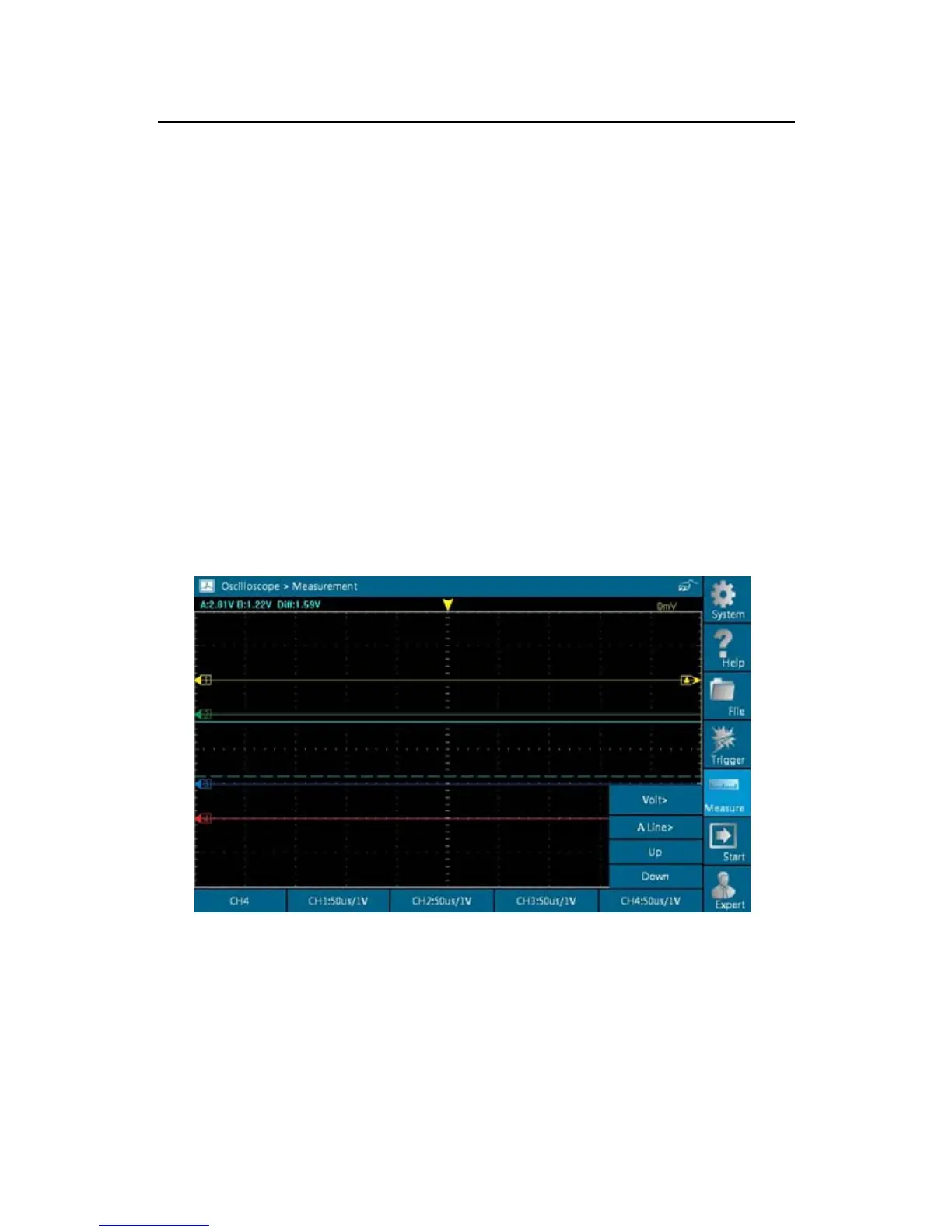

Fig.3-10
Button descriptions：
[Voltage]: u
sed to select mode. When it is displayed as Volt, it is in
voltage meas
urement mode;
