[A line]: enables you to select A\B measurement line. The currently
selected line is a solid line;
[Up/Down]: fine adjut
ment button for voltage.
3.3.4 Expert settings
This option is specially designed to measure related vehicle sensors.
After selecting one sensor
, the osicilloscope will be preset based on
preset value of this sensor.
Click [Expert] to enter the expert setting interface. See Fig.3-11.

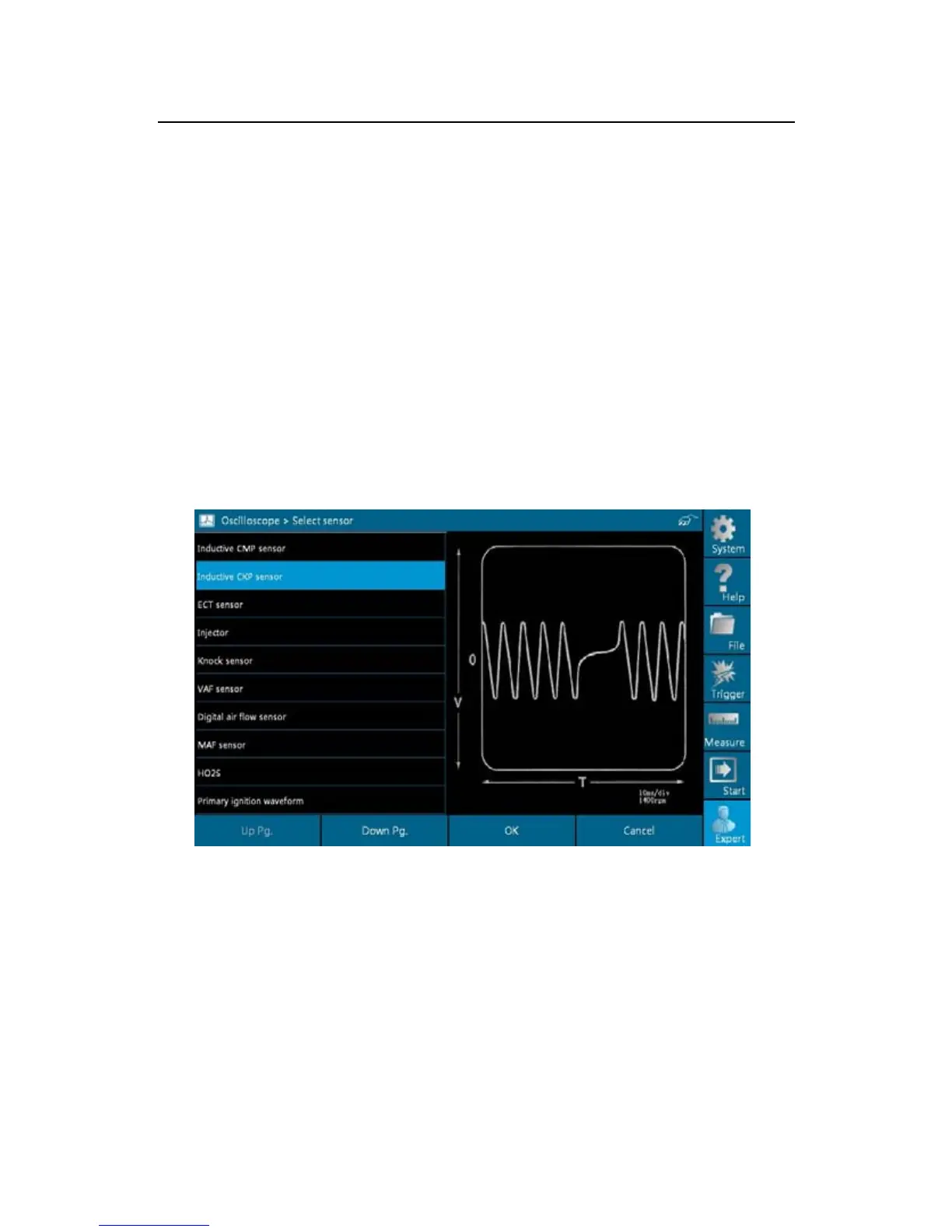

Fig.3-11
In Fig.3-11, left side lists sensor list and right side displays current
sample wavefor
m of selected sensor.
