LAUNCH X431 GDS Scopebox Manual
3.3.4 File management
<1> Store picture
This option is designed to save the currently displayed waveforms as
graphic file. It can be performed when the oscilloscope stops
collecting data.

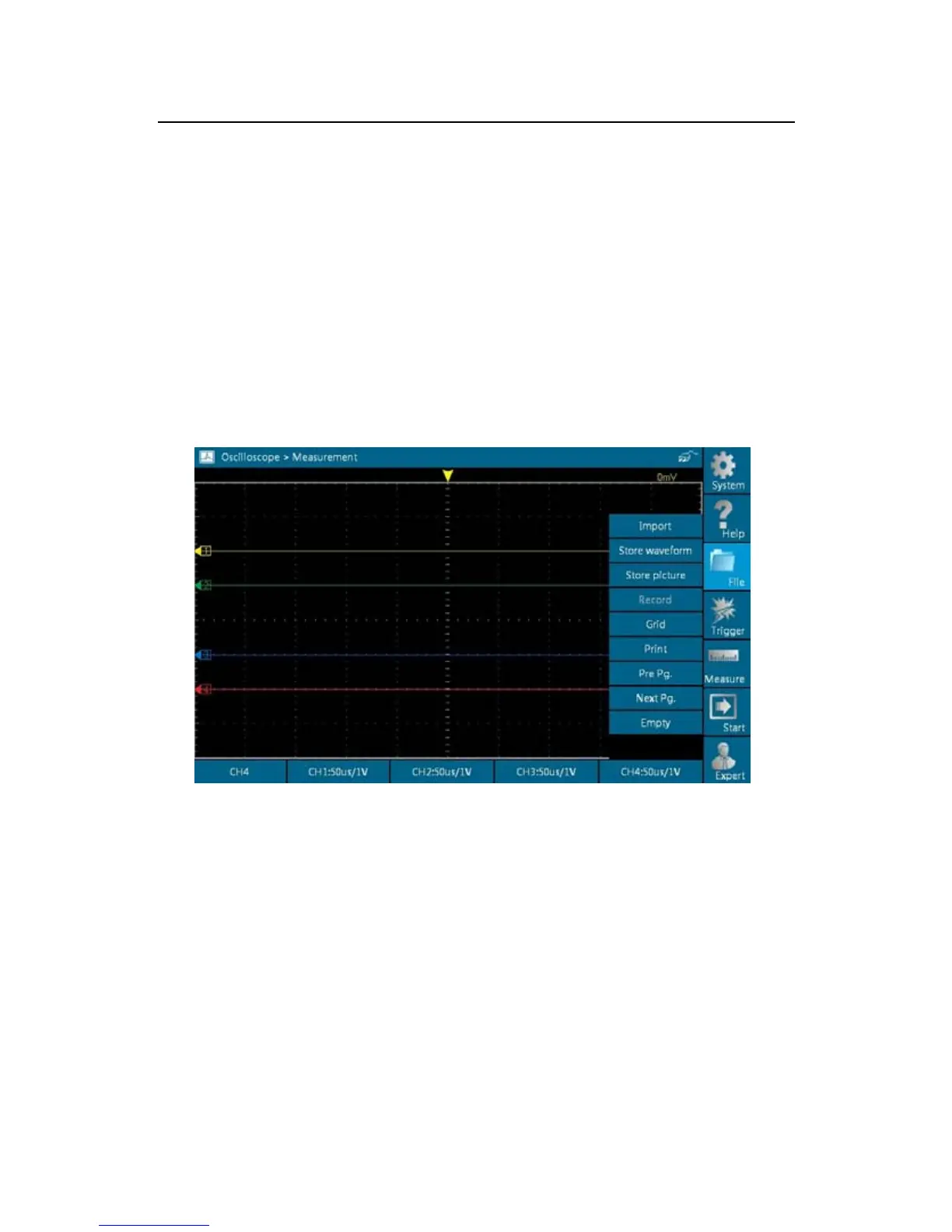

Touch [File], then select [Store picture] from the pull-down list. See
Fig. 3-12.
Fig.3-12
<2> Store waveform
This item is to save the currently displayed waveforms as data file
which can be pl
ayed back by oscilloscope. It can be performed when
the oscilloscope stops collecting data.
Touch [File], then select [Store waveform] from the pull-down list.
See Fig. 3-13
.
