LAVAZZA LB GUZZINI - Machine Disassembly; Disassembly Steps

7
M
aintenance manual for technical assistance - LB GUZZINI
Manual code 10083088 / Rel. 0.00 / January 2008
2
- Remove the upper cover (4).
- Turn the machine upside down and unscrew the four
screws (6).
- Remove the base (7).

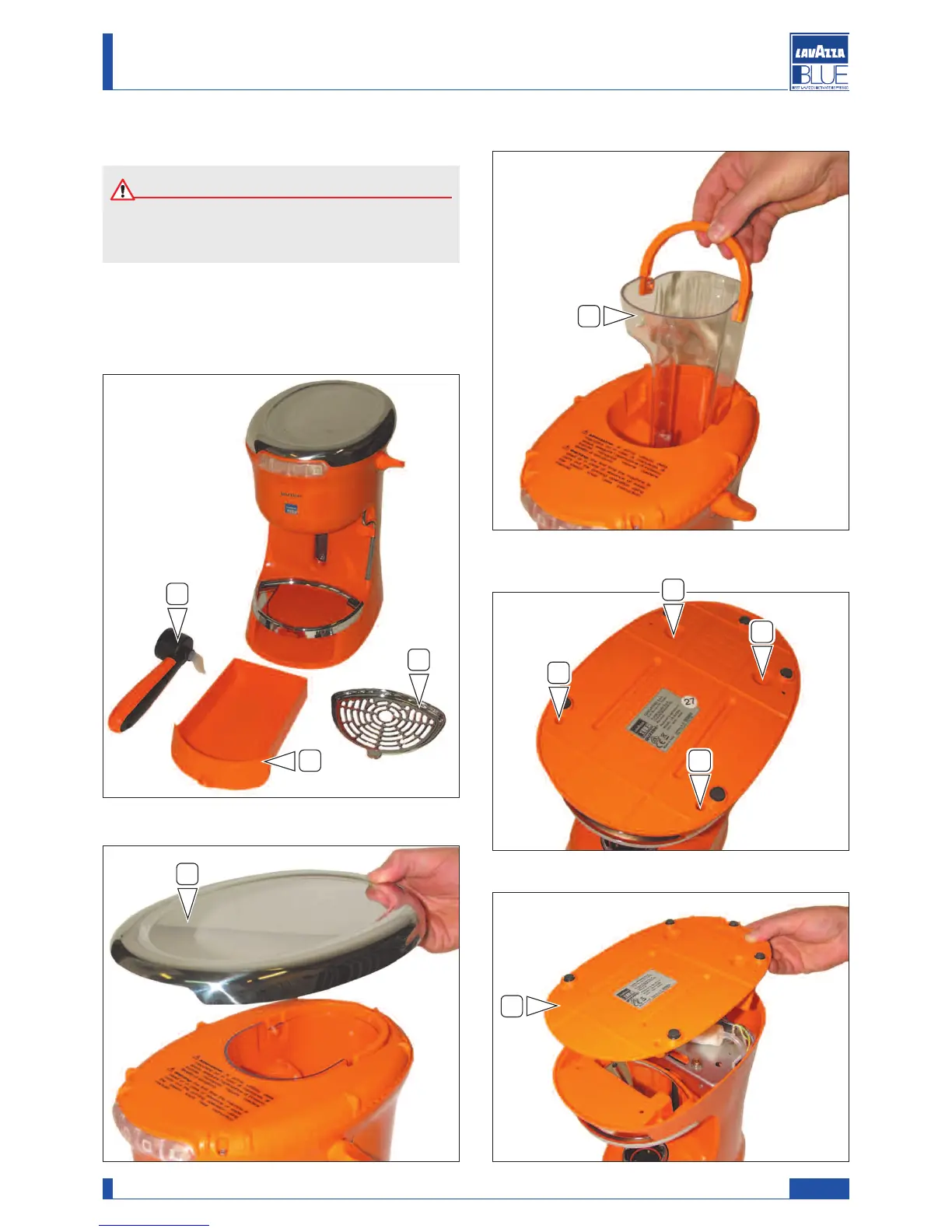

8. MACHINE DISASSEMBLY
- Remove the tank (5).
5
The following parts should be removed from the machine:
- capsule holder (1);
- drop drawer (2);
- cup support grid (3).
Attention
The following operations must be carried out with
the machine unplugged and cold.
1
6
4
6
6
6
7
3
