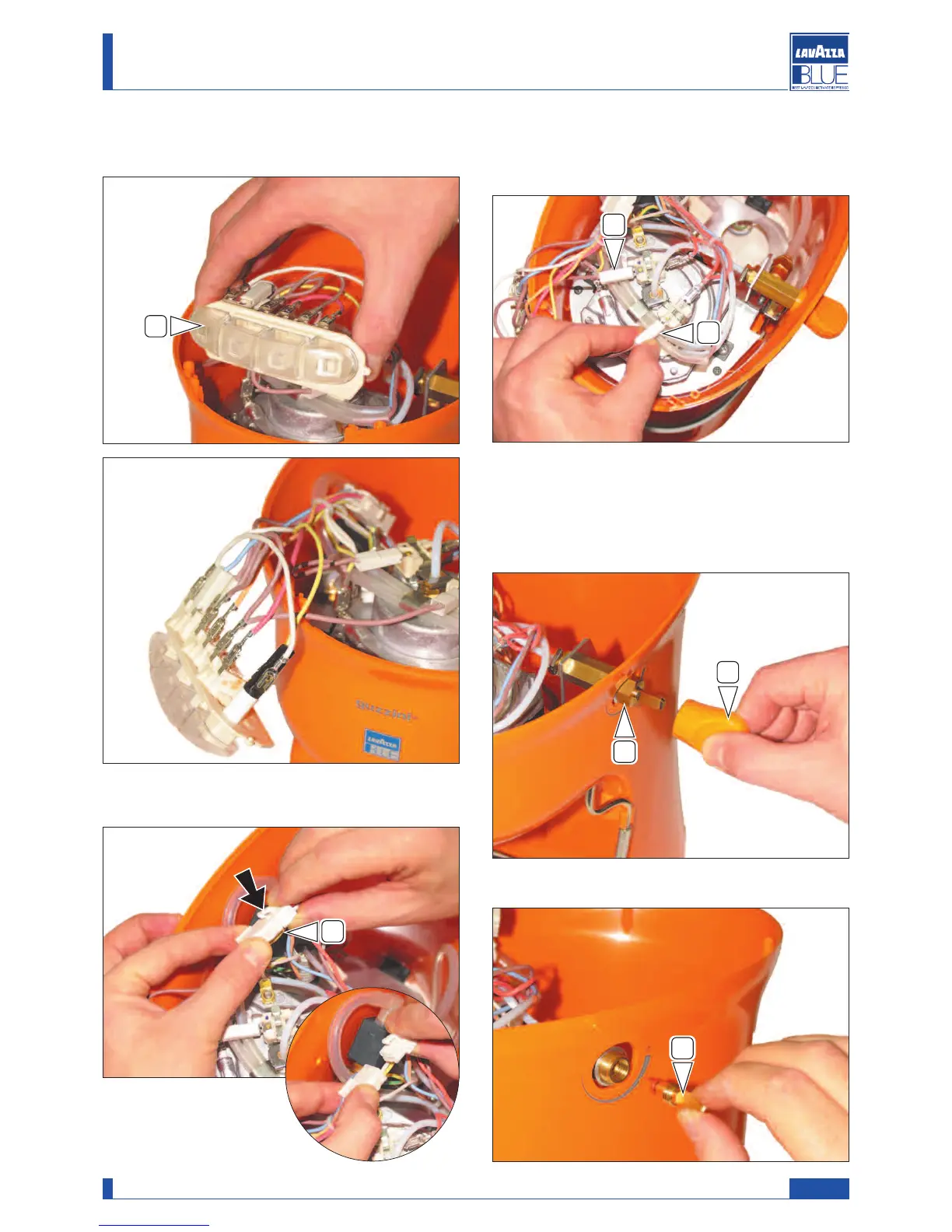

- Remove the switch group (14) from its housing and
p
lace it sideways.
- To completely remove the switch group you should
also disconnect the two faston (16) and (17).
- Lever the indicated spring then disconnect the con-
nector (15).
14
16
17
- Turn the steam knob counter-clockwise to complete-
ly unscrew it (18) then remove it by pulling outwards.
- Unscrew and remove the nut (19) using a 15 mm
spanner.
18
19
- Unscrew and remove the regulator (20).
