aintenance manual for technical assistance - LB GUZZINI
Manual code 10083088 / Rel. 0.00 / January 2008
12

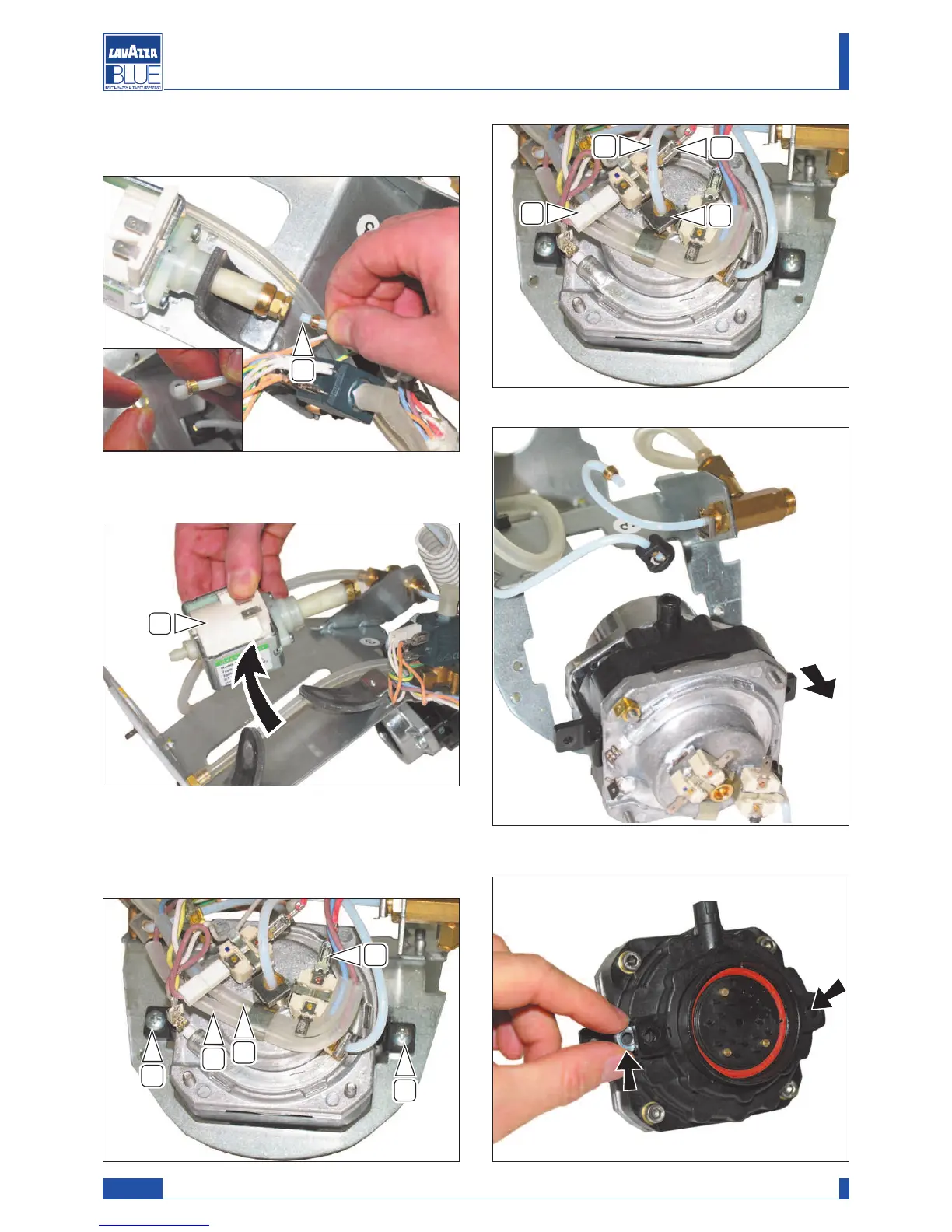

- Remove the pipe (36) and be careful not to loose the
i
nner washer.
32
- At this point remove the boiler.
- Remove the two nuts shown on the sides of the boiler.
36
- Remove the pump (32) from its rubber supports.
- Unscrew the two screws (37), the pipes (38) and (39)
and the faston (40) (41) and (42).
Remove the spring (43 )using a pliers, then slip off the
pipe (44).
37
37
40
38
39
