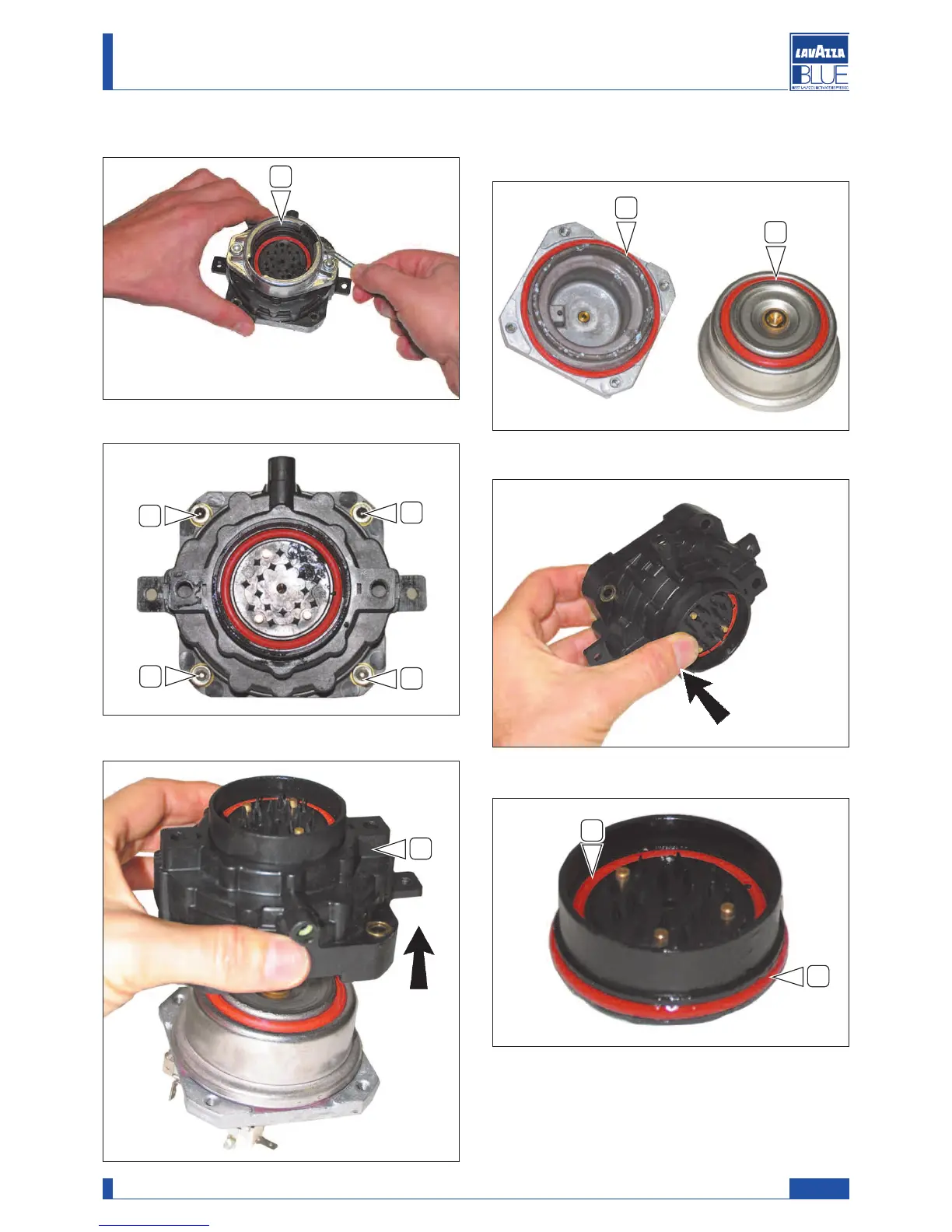

- Unscrew the two screws and remove the ring (45).
- Unscrew the four screws (46).
- Separate the upper boiler from the lower boiler.
It is possible to replace the gaskets (48) and (49).
45
46
46
46
46
- Lift up and remove the boiler ring (47).
47
48
49
- Press on the boiler piston to extract it.
- It is possible to replace the two gaskets (50) and(51).
51
50
