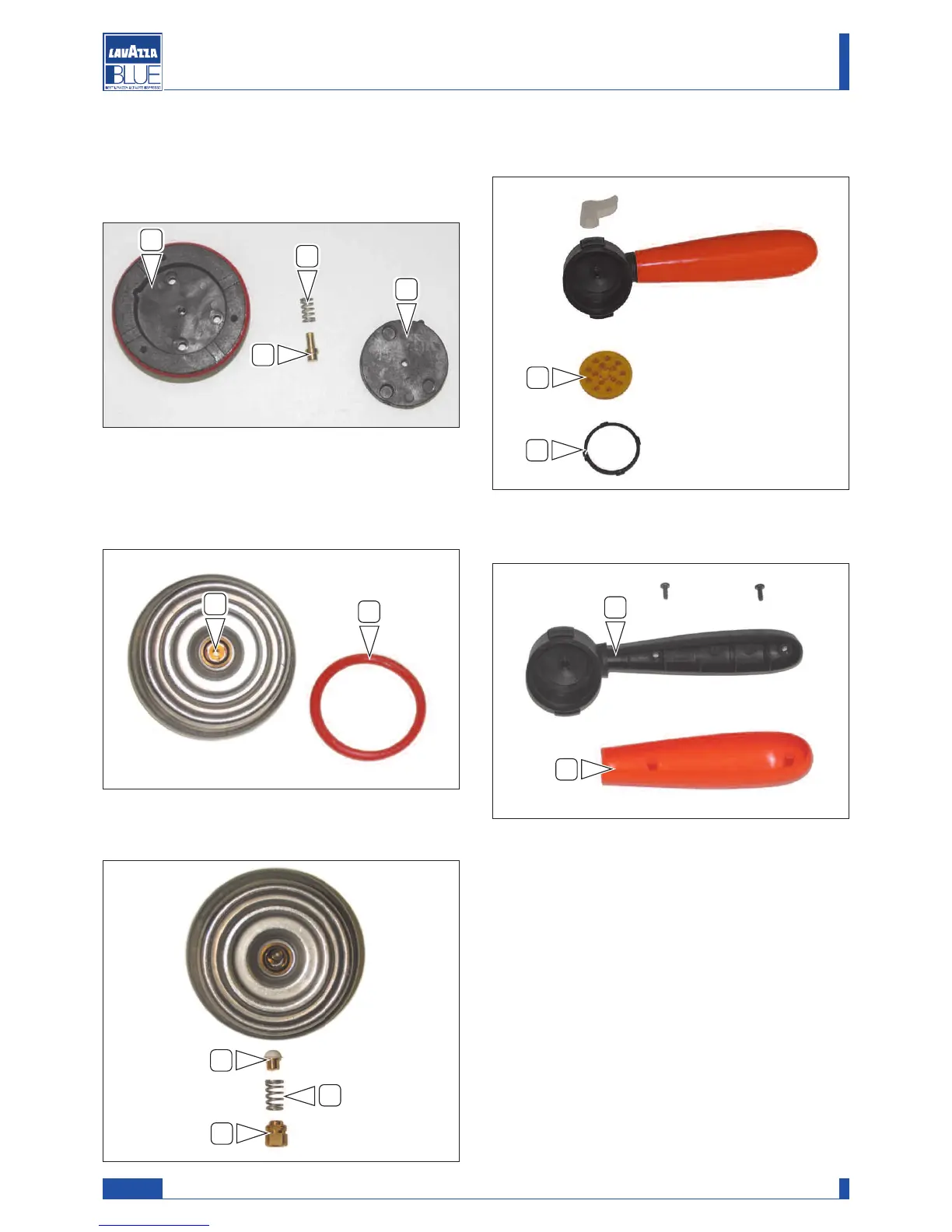

- Extract the insert (52) from the piston (53) using a
p
liers (53).
- Remove the springs (54) and the pins for capsule
e
jection (55).
- It is possible to replace the gasket (56) of the lower
boiler.
- For more maintenance on boiler unscrew the screw
(57).
52
53
54
55
56
57
- Remove the valve holder (58), the spring (59) and the
valve (60).
60
59
58
- Separate the ring (61) using a screwdriver, in order to
e
xtract the capsule perforator (62).
61
62
- In the capsule holder unit it is possible to separate
the case (63) from the knob (64).
64
63
