10

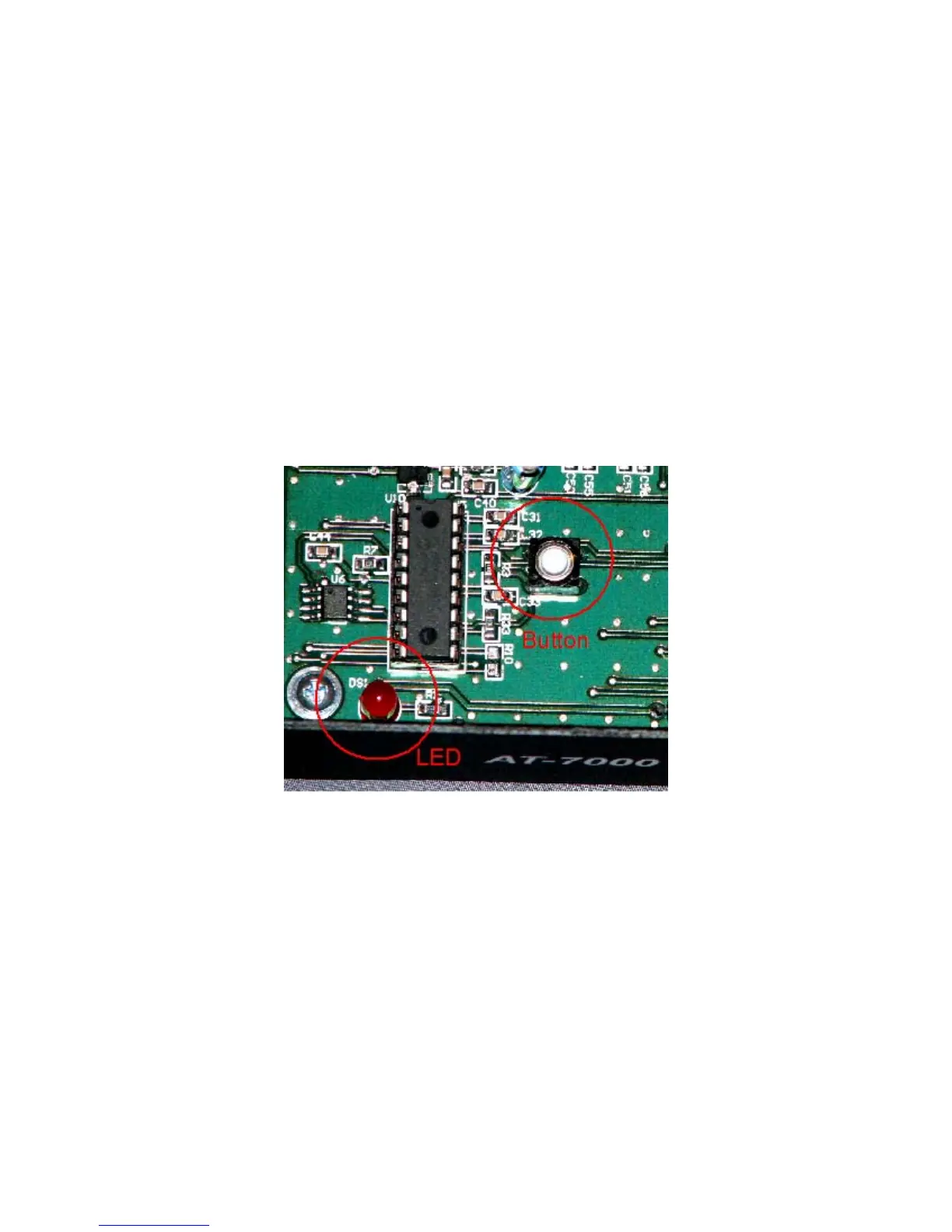

Full Tune: Press the button for more than 2.5 seconds to start a full tuning cycle, even if
parameters are stored for that frequency. As you hold the button down, the LED will light, then
go out; release the button after the LED goes out.
The LED will light during any tuning cycle. When a memory tuning cycle ends, the LED will
simply go out if the tuning cycle was successful. After a full tuning cycle, the LED will simply go
out if the achieved SWR was higher than the previously stored value. This indicates that new
parameters were not stored. If the achieved SWR is lower than the saved value, the LED will
blink three times fast to indicate that new parameters were saved. The LED will blink once if the
SWR is the same as the stored value.
Three slow blinks indicates that RF power was lost during the tuning cycle. Adjust your
transceiver as necessary and begin a new tuning cycle.
