WING
TEMP
WING
TEMP
25-260 AND
SUBSEQUENT
WING OV'HT
SCUPPER SCUPPER
STAB AND WING
HEAT
CONTROL VALVE
LH ENGINE
RH ENGINE
TO DEFOG SYSTEM
TO AIR-CONDITIONING (PRESSURIZATION) SYSTEM
STAB HEAT
ANTI-ICE BLANKET
ON
OFF
RELAY
BOX
SEQUENCE
TIMER

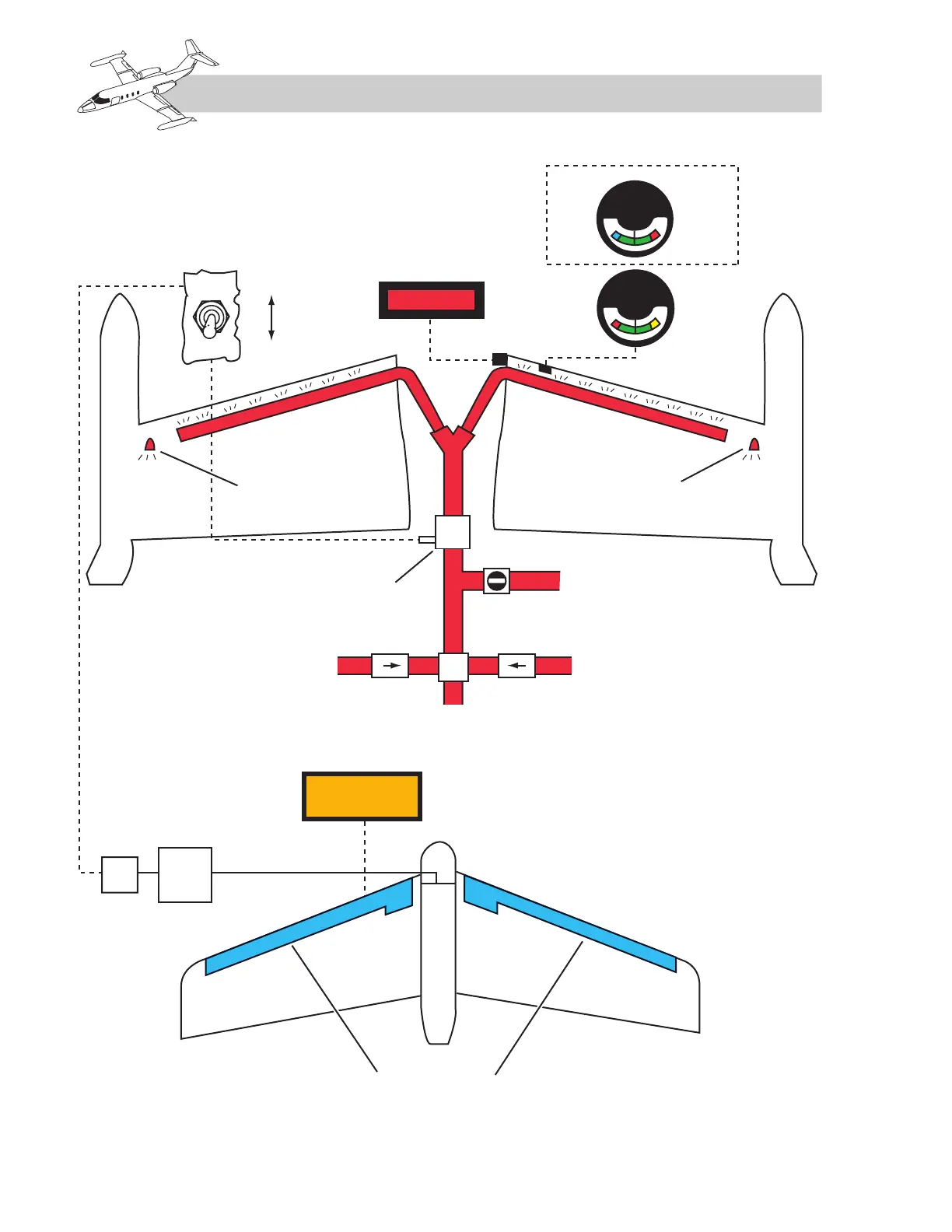

Figure 10-14. Wing and Horizontal Stabilizer Anti-ice System
