LEARJET 20 SERIES PILOT TRAINING MANUAL
FlightSafety
international
15-13
FOR TRAINING PURPOSES ONLY

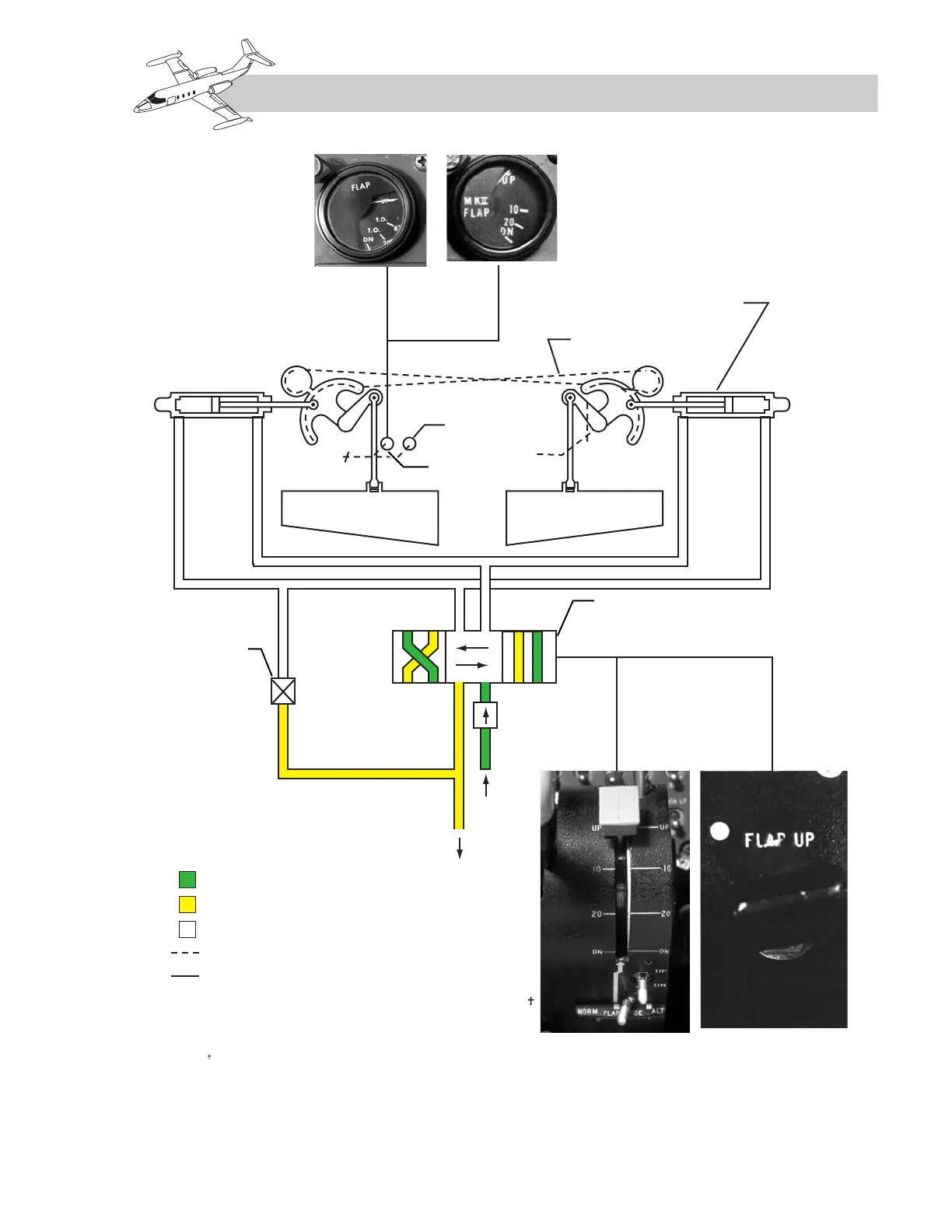

Figure 15-8. Flap System Schematic
FLAP
ACTUATOR
INTERCONNECT
CABLE
FLAP
LIMIT
SWITCH
(PRESELECT)
POSITION
TRANSMITTER
RELIEF VALVE
EXTEND RETRACT
FLAP CONTROL
VALVE
*
*
**
*
NORMAL HYDRAULIC
SYSTEM PRESSURE
RETURN
STATIC
MECHANICAL
ELECTRICAL
LEGEND
AIRPLANES WITH MKII WING
SNs 24-297, 25-181, AND SUBSEQUENT
OPTIONAL ON ALL AIRPLANES WITH MKII WING
*
