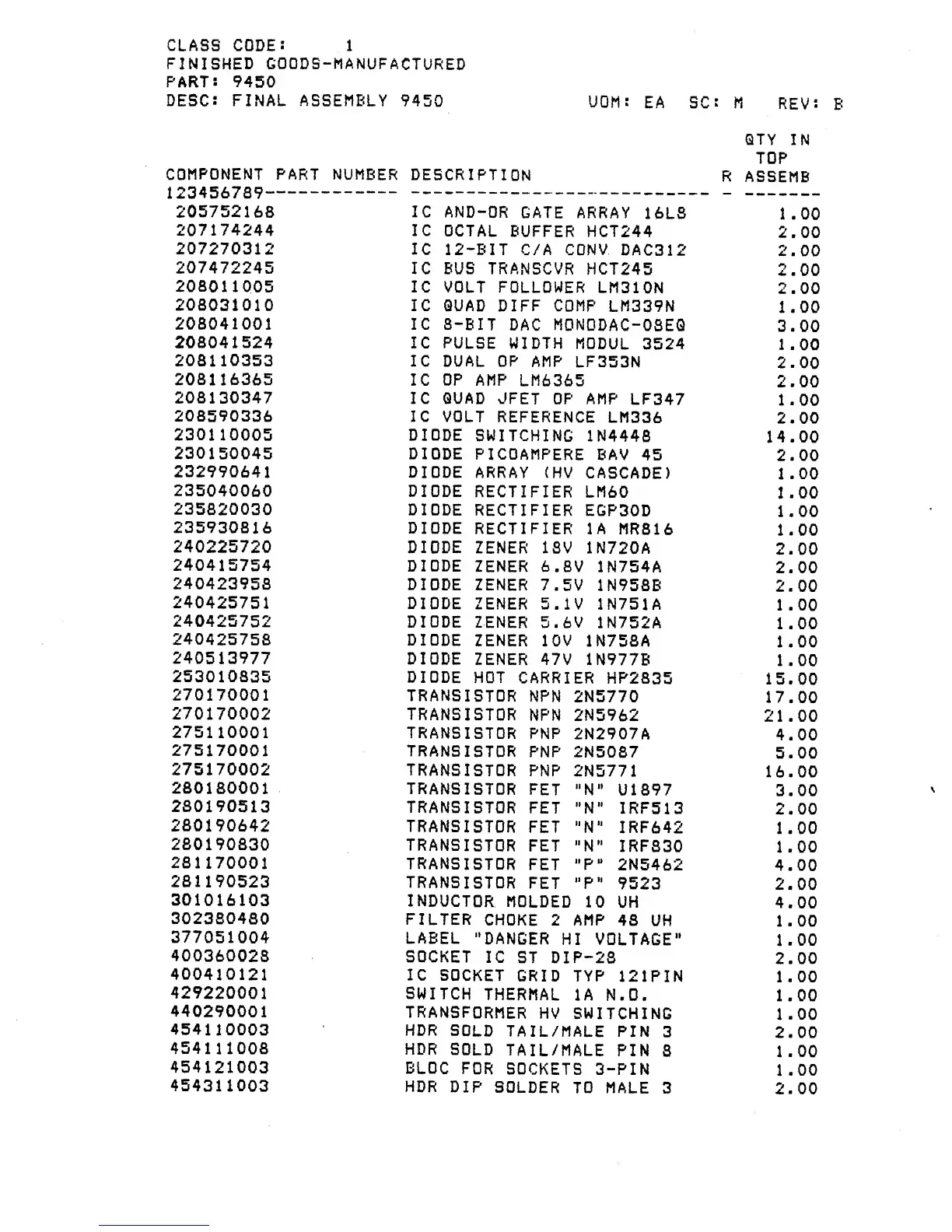

LeCroy 9450 - Page 125

CLASS CODE: 1
FINISHED
GOODS
-MANUFACTURED
PART: 9450
DESC : FINAL
ASSEMBLY
9450
UOM:
EA SC
COMPONENT PART NUMBER
DESCRIPTION
i r-n a* L~r oa _ .
:
M
REV:
QTY
IN
TOP
R
ASSEMB
W
T
205752168 IC
AND-OR
GATE ARRAY
16L8
1 .00
207174244
IC
OCTAL
BUFFER HCT244
2.00
207270312
IC
12-BIT C/A CONV
DAC312
2.00
207472245
IC BUS
TRANSCVR HCT245
2.00
208011005
IC
VOLT FOLLOWER
LM310N
2.00
208031010
IC
QUAD DIFF COMP
LM339N
1.00
208041001
IC
8-BIT
DAC
MONODAC-OSEQ
3.00
208041524
IC PULSE
WIDTH
MODUL
3524
1.00
208110353
IC DUAL OP
AMP
LF353N
2.00
208116365
IC OP AMP
LM6365
2.00
208130347
IC QUAD
JFET OP AMP
LF347
1.00
208590336
IC VOLT
REFERENCE
LM336
2.00
230110005
DIODE
SWITCHING
1N4448
14.00
230150045
DIODE
PICOAMPERE
BAV
45
2.00
232990641
DIODE ARRAY
<HV
CASCADE)
1.00
235040060
DIODE
RECTIFIER
LM60
1.00
235820030
DIODE
RECTIFIER
EGP30D
1.00
235930816
DIODE
RECTIFIER 1A
MR816
1.00
240225720
DIODE
ZENER 18V
1N720A
2.00
240415754
DIODE
ZENER
6.8V
1N754A
2.00
240423958
DIODE
ZENER
7.5V
1N958B
2.00
240425751
DIODE
ZENER 5.1V
1N751A
1.00
240425752
DIODE
ZENER
5.6V
1N752A
1.00
240425758
DIODE
ZENER 10V
1N758A
1.00
240513977
DIODE
ZENER 47V
1N977B
1.00
253010835
DIODE
HOT
CARRIER
HP2835
15.00
270170001
TRANSISTOR
NPN
2N5770
17.00
270170002
TRANSISTOR
NPN 2N5962
21.00
275110001
TRANSISTOR
PNP
2N2907A
4.00
275170001
TRANSISTOR
PNP
2N50S7
5.00
275170002
TRANSISTOR
PNP
2N5771
16.00
280180001
TRANSISTOR
FET
"N"
U1897
3.00
280190513
TRANSISTOR
FET
"N" IRF513
2.00
280190642
TRANSISTOR
FET "N"
IRF642
1.00
280190830
TRANSISTOR
FET
,,
N
,
‘
IRF830
1.00
281170001
TRANSISTOR
FET
"P"
2N5462
4.00
281190523
TRANSISTOR
FET
"P"
9523
2.00
301016103
INDUCTOR
MOLDED
10
UH
4.00
302380480
FILTER
CHOKE
2
AMP
48
UH
1.00
377051004
LABEL
"DANGER
HI VOLTAGE"
1.00
400360028
SOCKET
IC
ST DIP-28
2.00
400410121
IC
SOCKET
GRID
TYP
121PIN
1.00
429220001
SWITCH
THERMAL
1A
N.O.
1.00
440290001
TRANSFORMER
HV
SWITCHING
1.00
454110003
HDR
SOLD
TAIL/MALE
PIN
3
2.00
454111008
HDR
SOLD
TAIL/MALE
PIN
8
1.00
454121003
BLOC
FOR
SOCKETS
3-PIN
1.00
454311003
HDR
DIP
SOLDER
TO
MALE
3
2.00
