LeCroy Waverunner2 LT374 Series User Manual

Rev. D Performance Verification 5-9
5.5.2 External Trigger Leakage Current
a. DC 50
Ω
ΩΩ
Ω
!
Recall
xxxP011.PNL
or configure the DSO as shown in 5.5.1
and make the following changes :

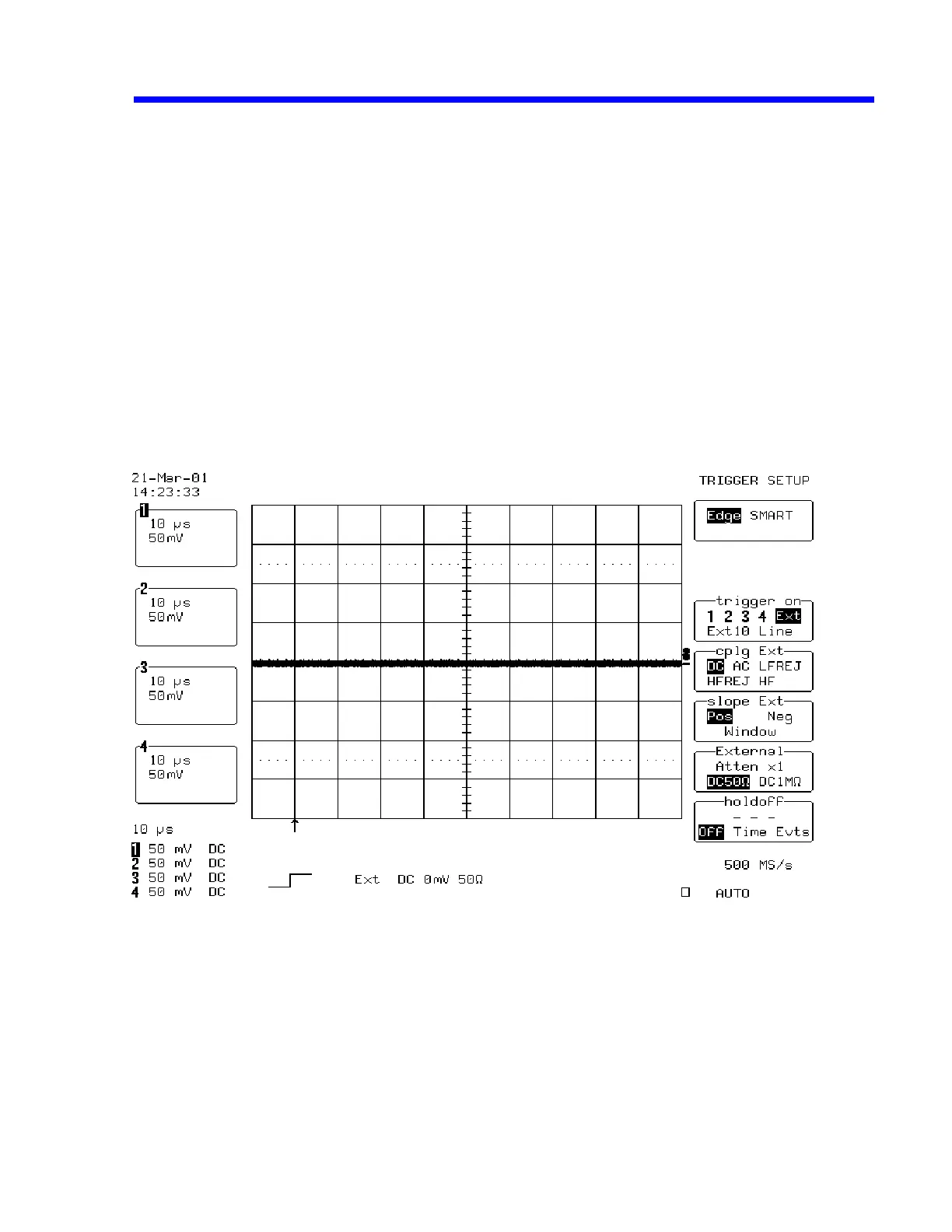

Select Setup trigger
Set Trigger on :
EXT
External :
DC 50
Ω
ΩΩ
Ω
!
Connect the DMM to External.
!
Measure the
voltage
and enter it in Table 3. Compare it to the limits.
