Rev. D Performance Verification 5-37
5.10.5 External Trigger at +3 Divisions Threshold
DC Coupling
!
Recall
xxxP041.PNL
or configure the DSO as shown in 5.10.4.a and make
the following change :
Set Ext Trigger level :
DC +300 mV
!
Connect the test equipment as shown in Figure 5-7.
!
Press
Clear Sweeps
,
!

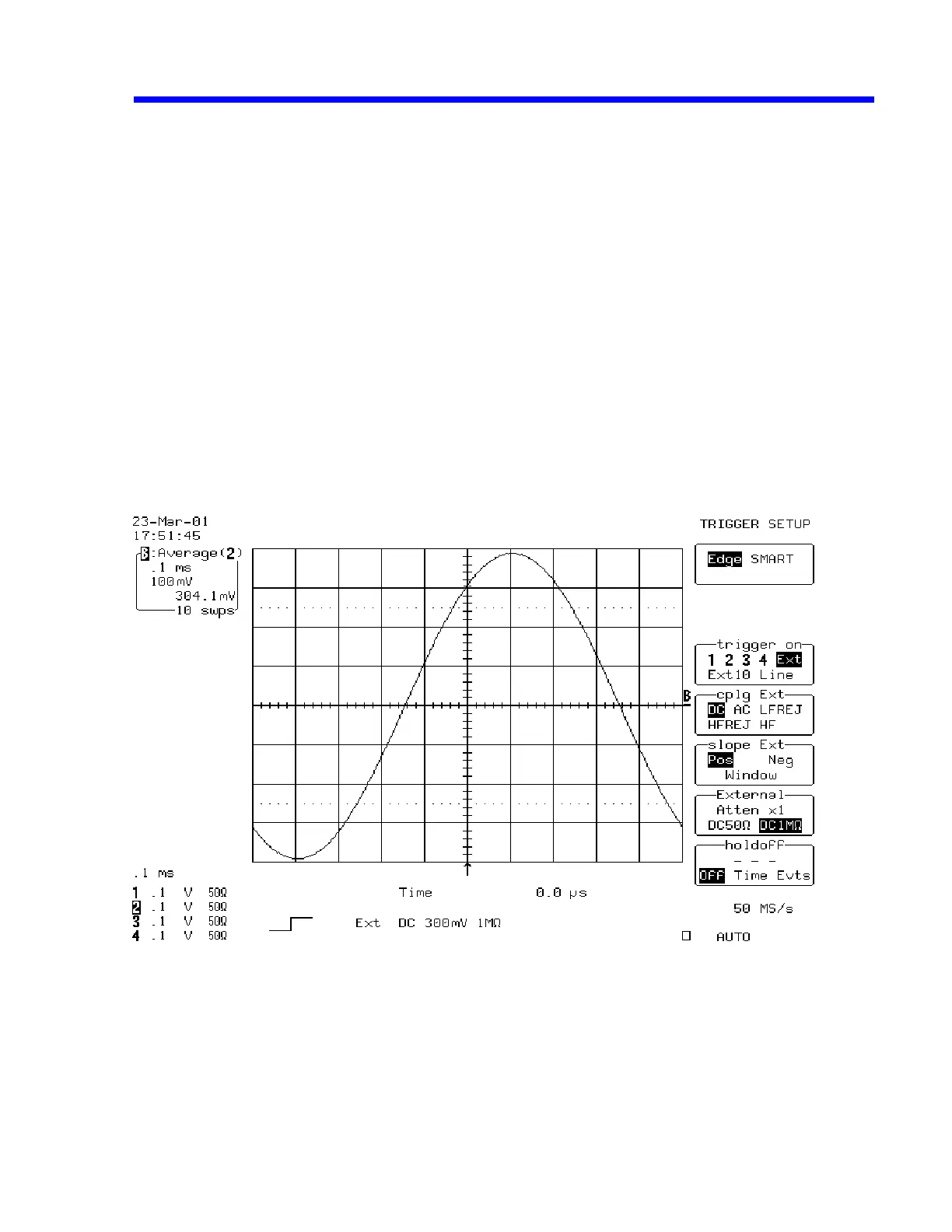

Acquire 10 sweeps and record in Table 11 the
level
readout displayed below
100 mV in the icon
2,
at top left
.
!
Compare the test results to the corresponding limit in the test record.
!
Set Trigger Slope Ext :
Neg
!
Acquire 10 sweeps and record in Table 11 the
level
readout displayed below
100 mV in the icon
2,
at top left
.
5.10.6 External Trigger at
−
−−
−
3 Divisions Threshold
