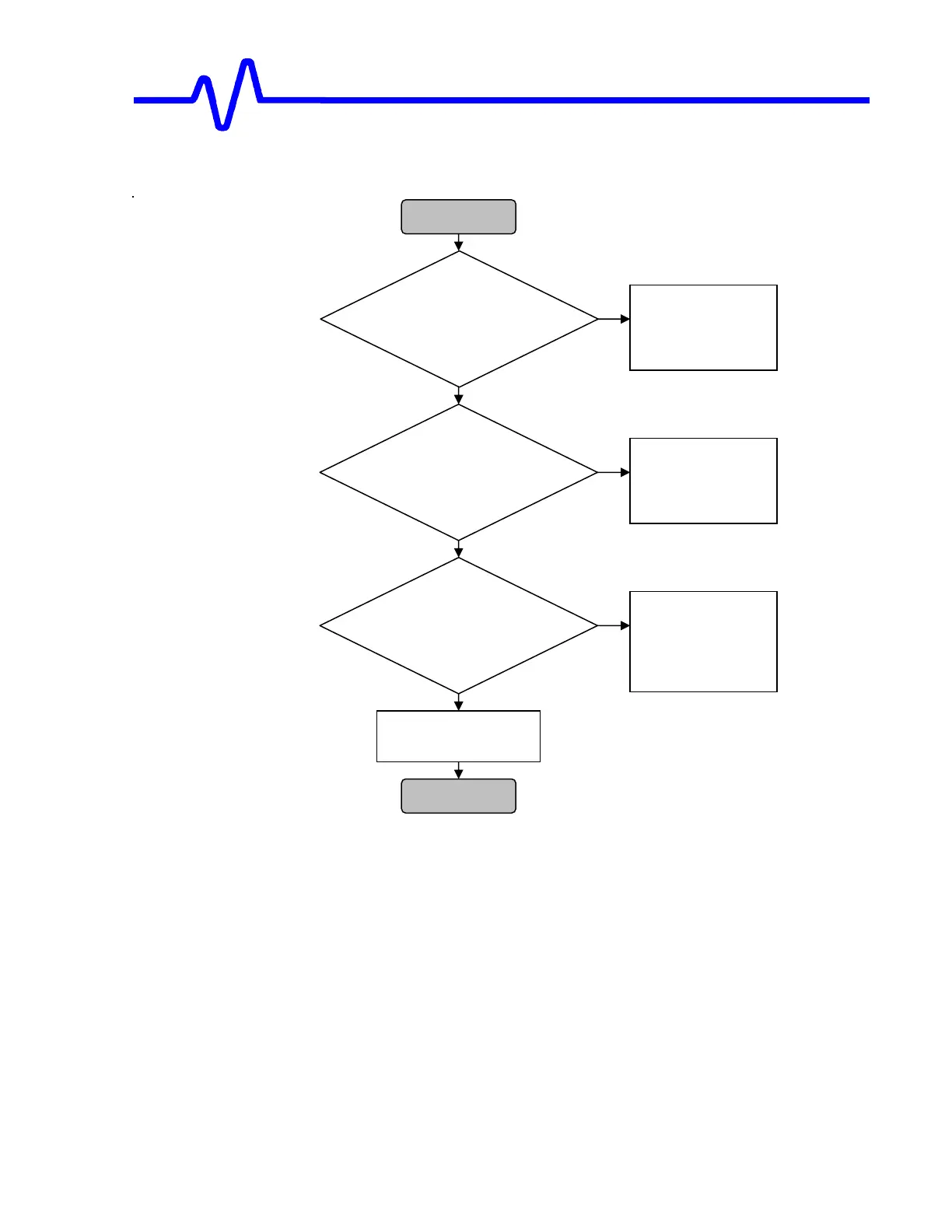

6.5.8 Remote Control GPIB or RS232 Problem
Is DSO
GPIB/RS232
Setup Correct ?
Change Setting
in DSO Utilities
Main Menu.
Is Appropriate
Device Settings
Correct ?
Change Device
Settings.
Is RS232 Cable
Configuration
Correct ?
Replace CPU board.
Y
N
Y
N
Y
N
End
Check RS232
Cable Pinout
from DSO to
Device.
Start
