7-16 Mechanical Parts & Removal

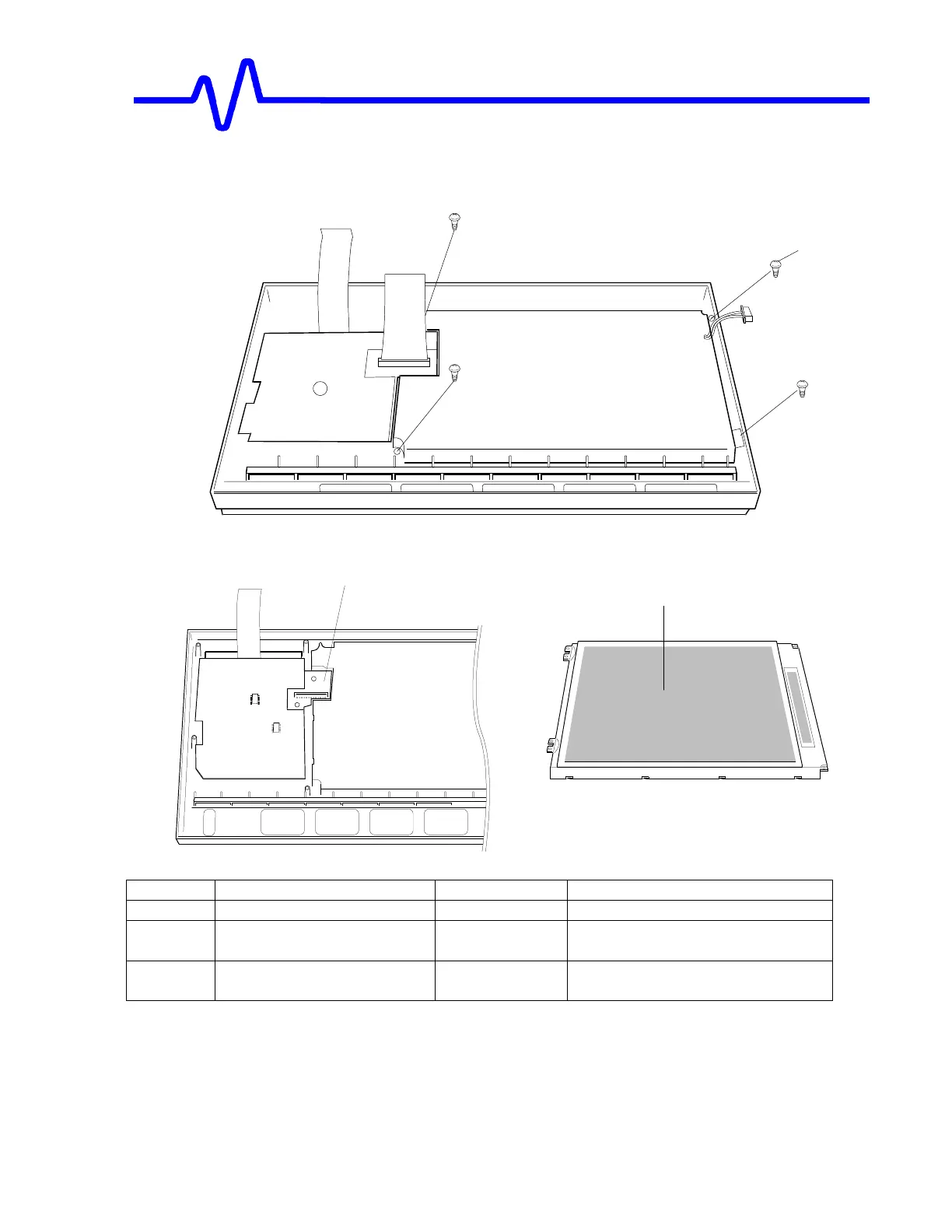

LCD Assembly
[H3]
1
LCD
LQ084VIDG21
[H4] [H5]
2
3
H3 to H5 Replaceable Parts
Item IWATSU Part Number Quantity Description
1 MSQ903511 4.0 Screw PKB 2.5x8S
2 21302-5615 1.0 LCD CONNECTOR BOARD
UL-M
3 21302-5680 1.0 LT LCD UNIT
See Fig [H5]
To Next Page
