2

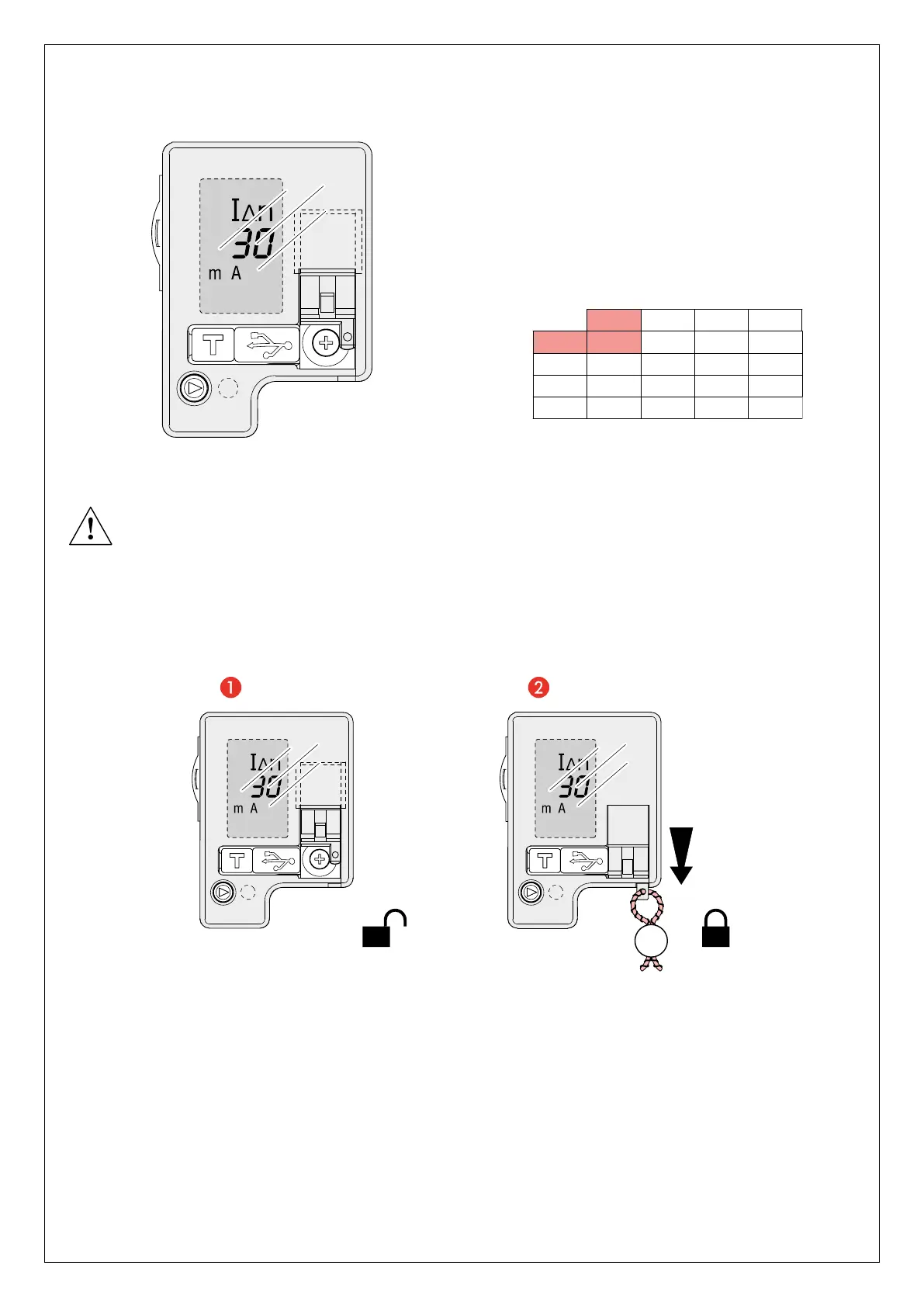

PARAMETRES / SETTINGS / INSTELLLINGEN / PARÁMETROS / IMPOSTAZIONI
REGULAÇÕES / REGULACJA / AYARLAR
- * Réglages par défaut I∆n (A) = 0,03 - ∆t (s) = 0
- * Factory setting I∆n (A) = 0,03 - ∆t (s) = 0
- * Impostazioni di fabbrica I∆n (A) = 0,03 - ∆t (s) = 0
- *Fabrikaayarı I∆n(A)=0,03-∆t(s)=0
0
0.3
1
0.03 0.3 1 3
OK
NO
3
Δt
*
*
[s]
IΔn = [A]
OK OK OK
OK OK OK
NO OK OK OK
NO OK OK OK
PARAMETRES IΔn et t possibles
SETTINGS IΔn and t possible
instellen van IΔn en t mogelijk
AJUSTE IΔn y t posible
IMPOSTAZIONE IΔn e t possibili
REGULAÇÕES IΔn e t possíveis
Możliwość REGULACJI IΔn oraz t
Mümkün olan IΔn ve t ayarları
CONSULTATION
CONSULTATION
ALLEEN AF/UITLEZEN
CONSULTA
CONSULTAZIONE
VERIFICAÇÕES
SPRAWDZENIE
INCELEME
Avec un seuil différentiel de 30 mAI∆n (A) = 0,03, le temps de déclenchement est reglé automatiquement à ∆t (s) = 0
With differential threshold of 30 mAI∆n (A) = 0,03, the trip time automatically sets to ∆t (s) = 0
Wanneer de differentiaalstroom is ingesteld op 30 mAI∆n (A) = 0,03 wordt de reactievertaging automatisch ∆t (s) = 0
Con un umbral de disparo diferencial de 30 mA I∆n (A) = 0,03, el tiempo de desconexión está ajustado automáticamente a ∆t (s) = 0
Con soglia differenziale di 30 mAI∆n (A) = 0,03 il tempo di intervento automaticamente si imposta su ∆t (s) = 0
Com regulação diferencial I∆n de 30 mA (A) = 0,03 o tempo de intervenção passa automaticamente a ∆t (s) = 0
Dlanastawyczłonuróżnicowoprądowegorównej30mAIΔn(A)=0,03,czaszadziałaniazostajeautomatycznieustawionynaΔt(s)=0
Kaçakakımeşikdeğeri30mAIΔn(A)=0,03olarakayarlandığındazamangecikmesiotomatikolarakΔt(s)=0agetirilir.
