KNX routeur IP DIN

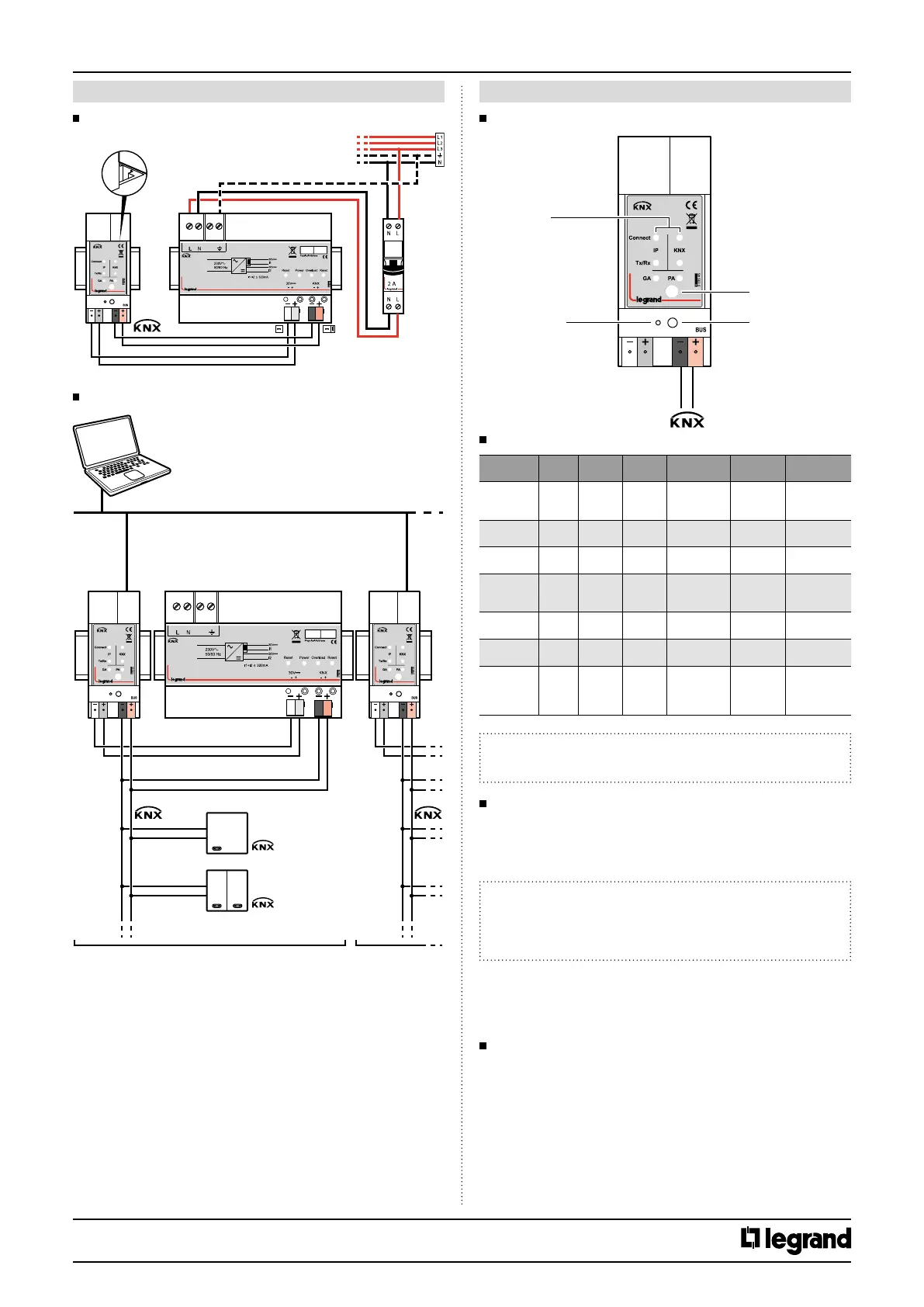

4. CONNECTION
4.1 Single wiring
29 V =
0 035 06/07
0 035 45
4.2 Double wiring
29 V = 29 V =
0 035 06/070 035 45 0 035 45
PC
IP
Line 1 Line 2
5. OPERATION
5.1 Description of the device
Function button
Programming button
Indicator LEDs
Programming LED
5.2 Operation and Display
Indicator Green
Blinked
Green
Orange Red Blinked Red Off
Connect – IP
IP line
OK
-
Manual
Function
Active
- -
No IP
connection
Connect –
KNX
KNX line
OK
- - - -
No KNX
connection
Tx/Rx – IP -
Traffic on
IP line
-
Transmission
Error on IP line
-
No traffic on
IP line
Tx/Rx – KNX -
Traffic on
KNX line
-
Transmission
Error on KNX
line
-
No traffic on
KNX line
Group
Address
Filter - Route all Block all - No route
Physical
Address
Filter Router all Block all - No route
Programming
LED
- - -
Programming
mode active
No IP
Connection
Programming
mode de-active
or LAN cable
connected
Note:
Device default physical address is 15.15.255.
5.3 Function Button
5.3.1 Long press (3 sec)
• Switch to manual override.
• Default function is set with LAN line and (KNX) line parameter.
• Manual override functionality is configured in “General parameters”.
Note:
The latest downloaded settings (parameters) and filter table are still
available after switching back from "Manual operation" to "Normal
operation".
5.3.2 Very long press (15s)
• LEDs: LEDs are on red
• Release button and press again for some sec: resets all the parameter
to factory default (incl. physical address).
5.4 Addressing Mode
5.4.1 LED addressing mode
• Off: normal operating mode
• On: addressing mode
After receiving the physical address, the IP Router automatically returns
from addressing mode to the normal operating mode.
5.4.2 Button addressing mode
Button for switching between normal operating mode and addressing
mode for assigning the physical address.
