255-80-0063-00 RoHS

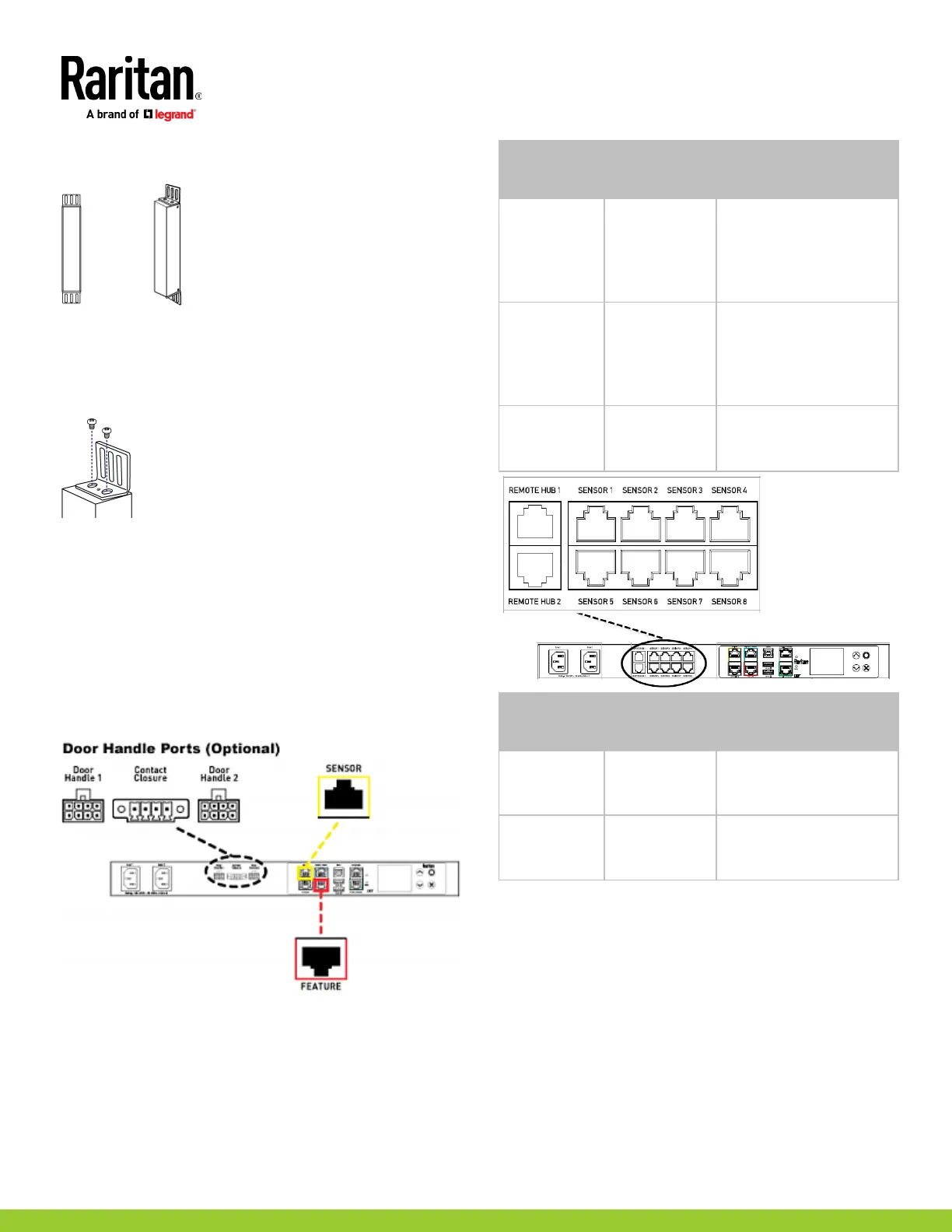

0U Rackmount Method
To mount SRC like a 0U device:
1. Align the two round holes of the L-bracket with two of the
screw holes on the top of the SRC device.
2. Screw the L-bracket to the device and ensure the bracket is
fastened securely.
3. Repeat Steps 1 to 2 to screw another L-bracket to the other end
of the device.
4. After both L-brackets are installed, fasten the device to the
rack, using rack screws, through slots of each L-bracket.
QS Rule
Connection Ports for Sensors, Door Handles, and
Assets
If you purchase Optional Accessories (on page 1), make sure you
connect them to the correct port on the SRC. Connecting to the
wrong port may cause damage to SRC and/or connected
accessories.
SRC models Connection
Supported accessories
All models SENSOR port
(yellow)
• Raritan's DX or DX2
sensors or actuators
• SmartLock kit (that is,
DX2-DH2C2)
Refer to "FEATURE 1" below.
Models with
onboard door
handle ports.
SRC-0102
SRC-0103
Door handle
ports, and
contact closure
terminals
• Raritan's door handles
• Third-party contact
closure detectors
(optional)
Refer to "FEATURE 2" below.
All models FEATURE port
(red)
• Raritan's asset
management strips
Refer to "FEATURE 3" below.
SRC models Connection
Supported accessories
SRC-0800 Sensor 1 - Sensor
8
Raritan's DX2 sensors or
actuators
Refer to "FEATURE 4" below.
SRC-0800 Remote Hub 1
Remote Hub 2
Raritan's DX2-REMHUB4
sensor hub
Refer to "FEATURE 5" below.
QS Rule
FEATURE 1: Support for DX and DX2 Environmental
Sensors/Actuators
Raritan's DX or DX2 environmental sensor packages are required
for SRC to detect the surrounding condition like the temperature,
or to control a system like door handles.
Connecting Environmental Sensors (Optional)
SRC provides the SENSOR port for connecting Raritan DX or DX2
environmental sensor packages so that you can remotely monitor
environmental factors, such as temperature and humidity, around
the rack.
