GR30/GM30/GR50, Pin Assignments and Sockets
85

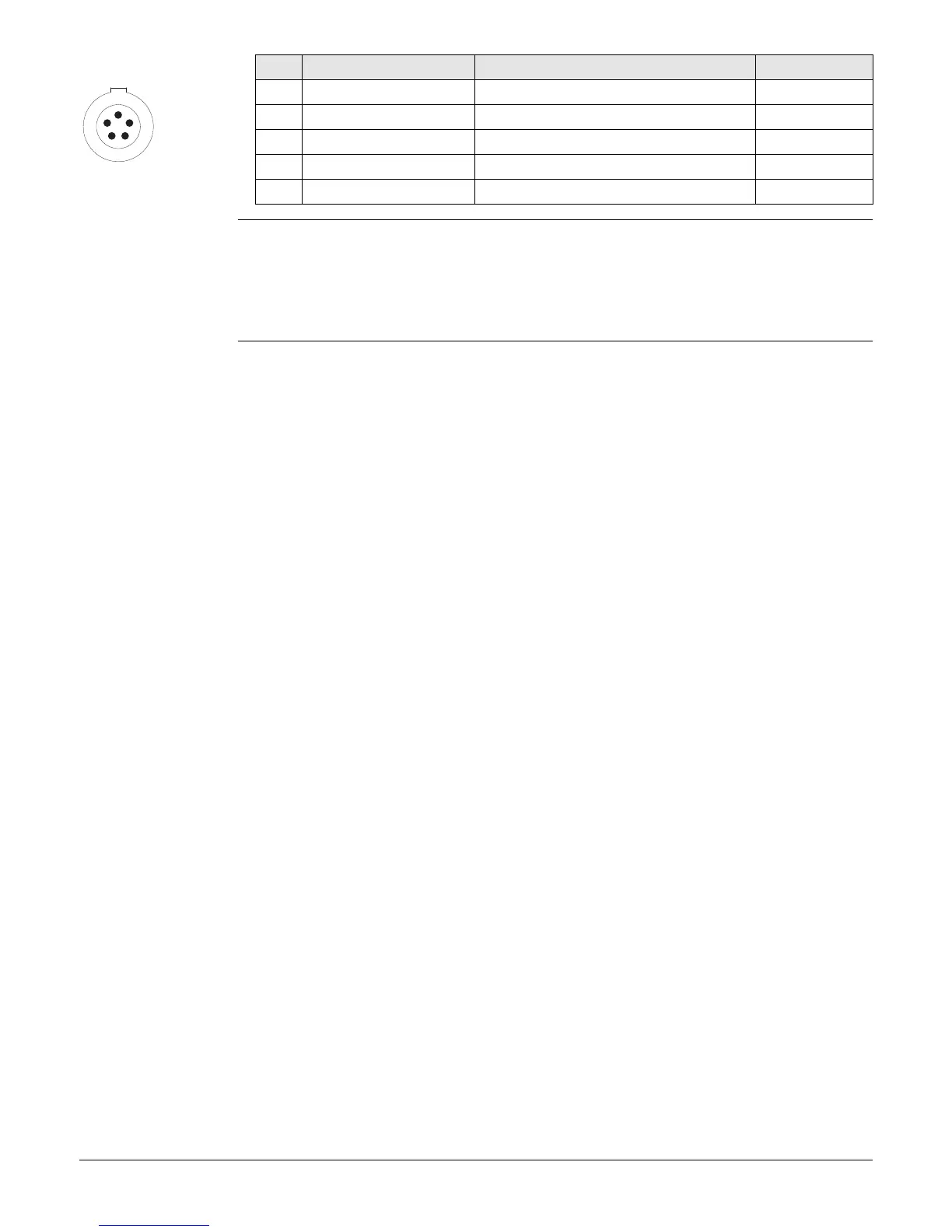

Pin assignments for
PWR: Power port
Sockets
1
5
43
2
PIN_004
Pin Signal Name Function Direction
1 PWR1 Power input, 10.5 V-28 VIn
2 ID1 Identification pin In
3 GND Signal ground -
4 PWR2 Power input, 10.5 V-28 VIn
5 ID2 Identification pin In
Port P1: LEMO-1, 8 pin, LEMO HMA.1B.308.CLN
Port P2: LEMO-1, 8 pin, LEMO HMA.1B.308.CLN
Port PWR: LEMO-1, 5 pin, LEMO HMG.1B.305.CLNP
PPS: LEMO REN.OS.250.CTL
OSC: MMCX female - 24QMA-50-2-3/133
